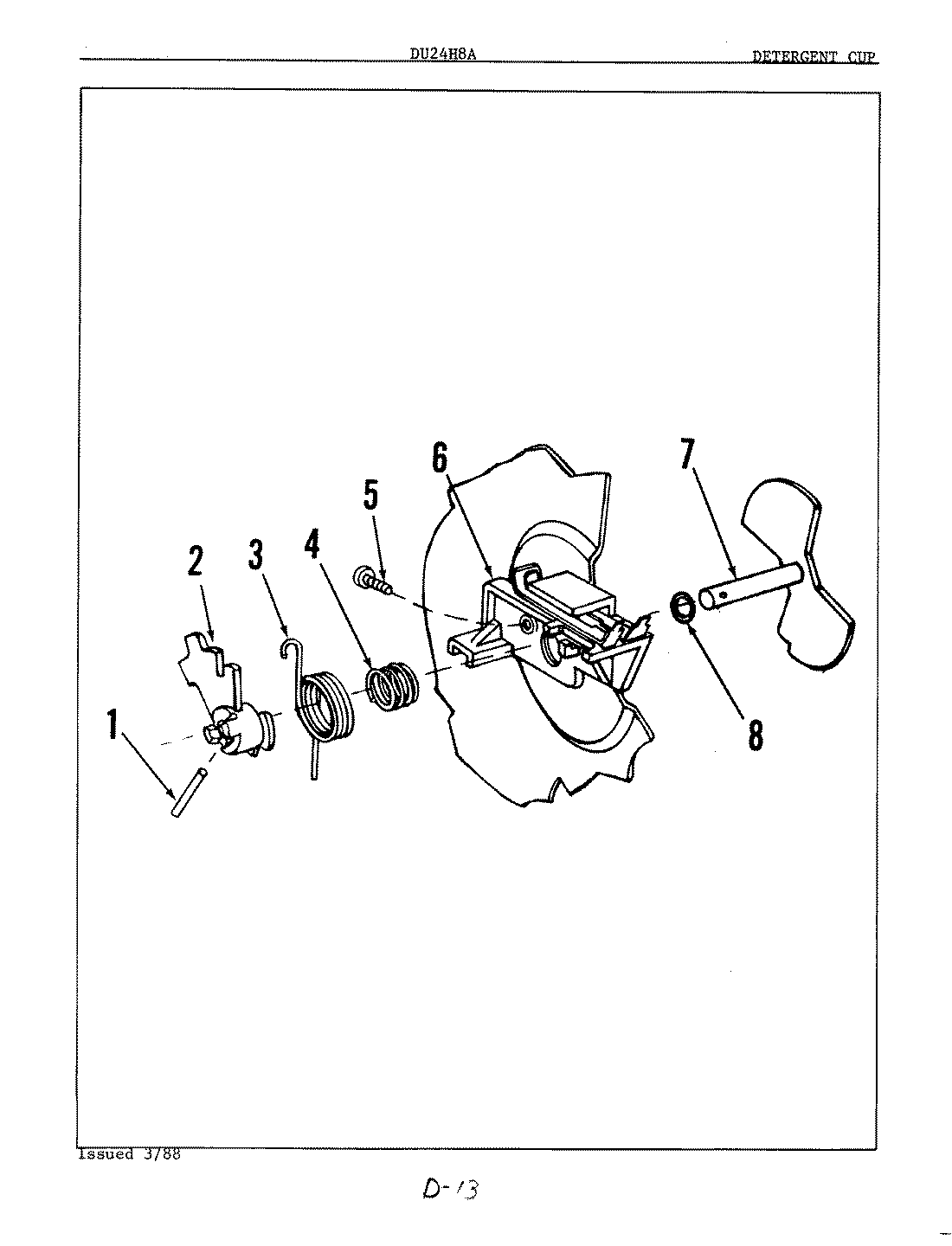

DU24H8A 02 – DETERGENT CUP
Products
| Position | Product |
|---|---|
| 1 | ROLL PIN |
| 2 | MAY 806566 |
| 3 | SPRING |
| 4 | SPRING |
| 5 | MAY 809029 |
| 6 | DET CUP TRIGGER |
| 7 | DISPENSER LID |
| 8 | O RING |
DU24H8A 02 – DETERGENT CUP
| Position | Product |
|---|---|
| 1 | ROLL PIN |
| 2 | MAY 806566 |
| 3 | SPRING |
| 4 | SPRING |
| 5 | MAY 809029 |
| 6 | DET CUP TRIGGER |
| 7 | DISPENSER LID |
| 8 | O RING |
