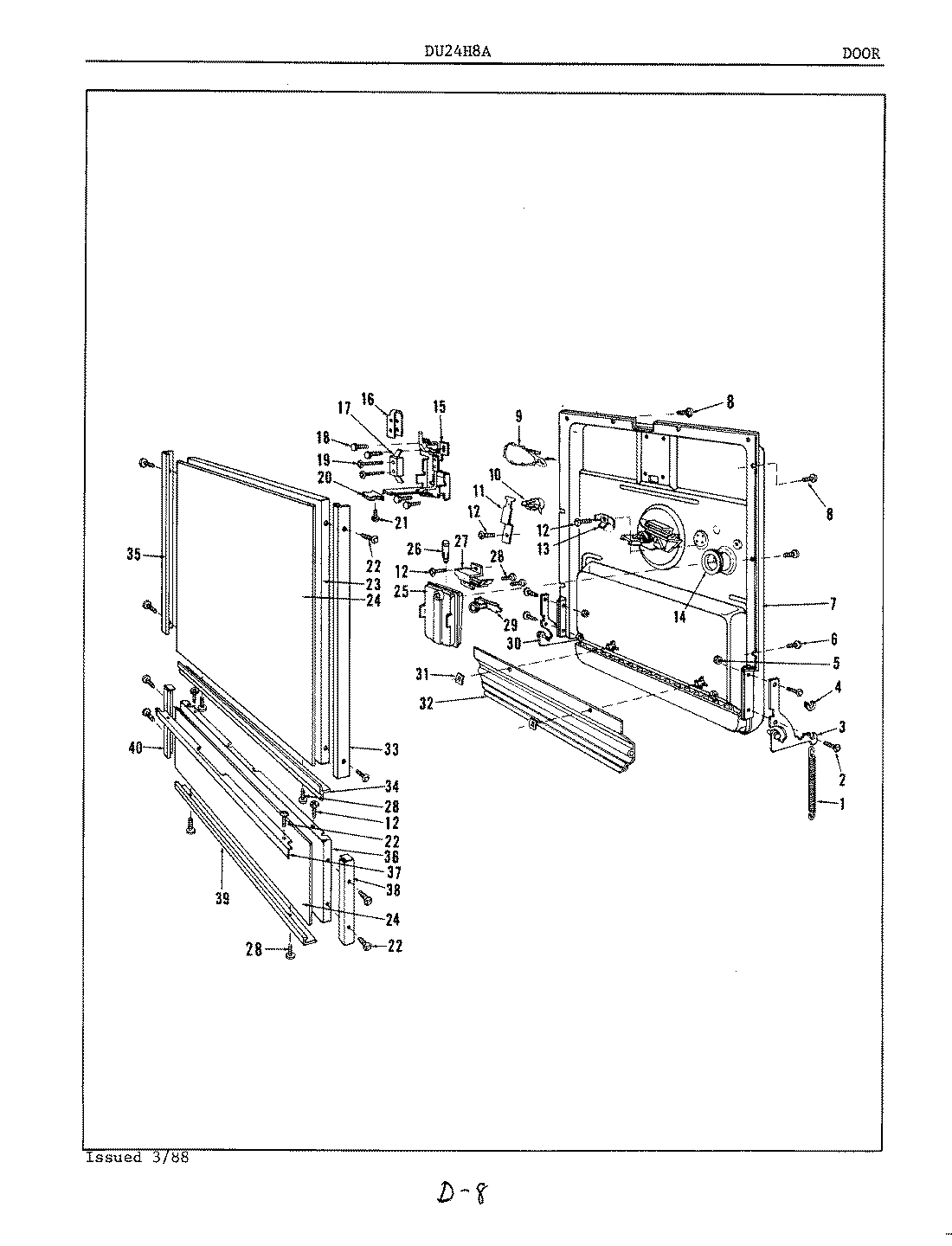

DU24H8A 03 – DOOR

DU24H8A 03 – DOOR

Written by

in

DU24H8A 03 – DOOR

Products

Position	Product
1	DOOR SPRING
2	MAY 803311
3	RH ARM
4	SPRING PAD
5	LOCKNUT
6	MAY 809055
7	DOOR ASSEMBLY
8	MAY 808749
9	WIRE TIE
10	THERMOSTAT
11	RETAINER
12	MAY 808658
13	GROUND TERMINAL
14	GROMMET
15	LATCH ASM
16	SWITCH COVER
17	MAY 807043
18	MAY 809029
19	MAY 808618
20	MAY 806398
21	MAY 809163
22	MAY 807293
23	OUTER PANEL
24	ACC PNL INSERT
25	DISPENSER
26	MAY 806757
27	BI-METAL ASM
28	MAY 807501
29	FILL PLUG
30	LH ARM
31	MAY 809026
32	MAY 809025
33	DOOR TRIM
34	DOOR TRIM
35	DOOR TRIM
36	ACCESS PANEL
37	ACC PNL TRIM
38	RH TRIM
39	BOTTOM TRIM
40	LH TRIM
40	BLACK DOOR KIT
