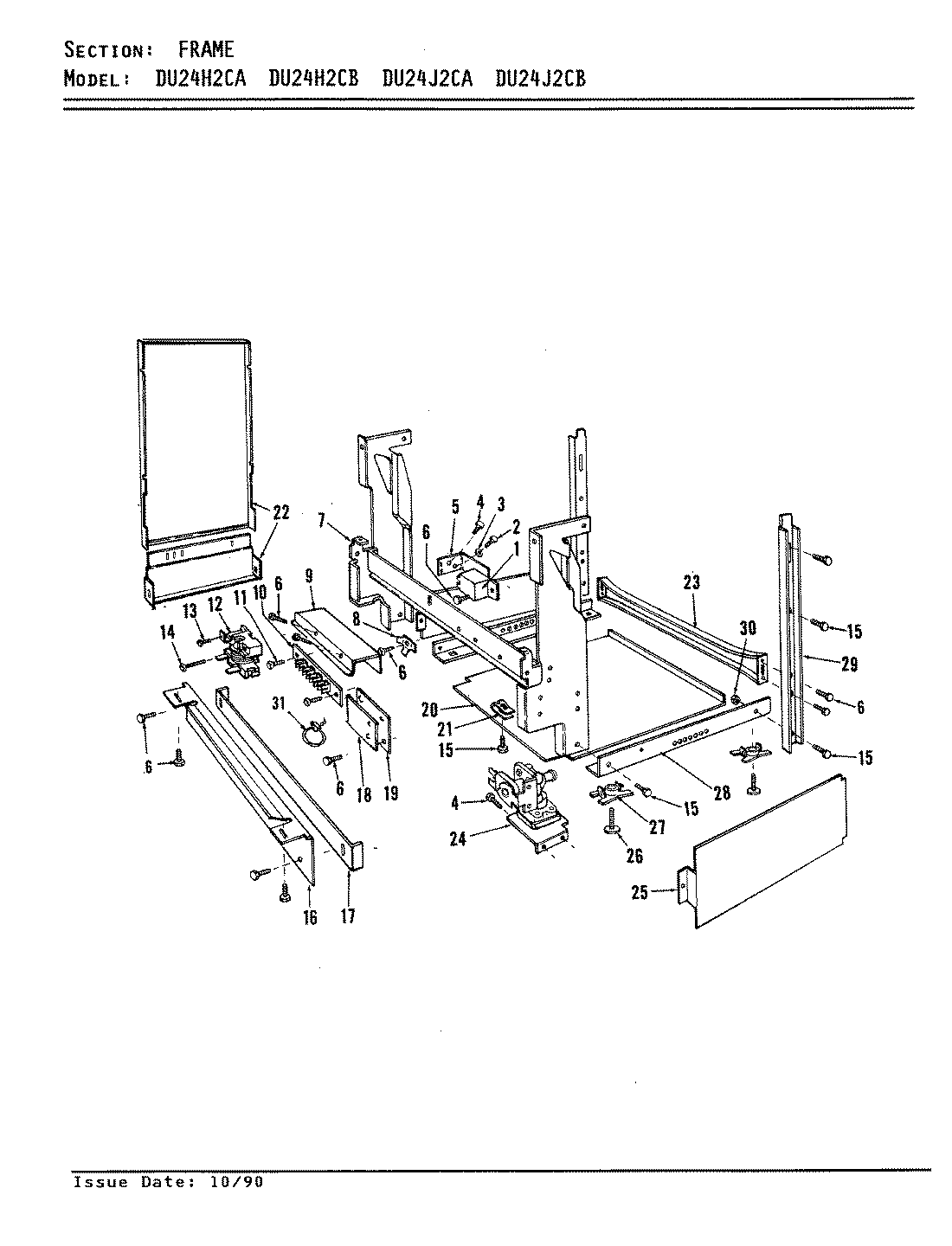

DU24J2CB 03 – FRAME

DU24J2CB 03 – FRAME

Written by

in

DU24J2CB 03 – FRAME

Products

Position	Product
1	TERMINAL COVER
2	MAY 807951
3	MAY 807373
4	MAY 807950
5	BRACKET
6	MAY 808658
7	MAY 807848
8	GROUND TERMINAL
9	MAY 807849
10	MAY 807486
11	MAY 807501
12	RELAY
13	MAY 806593
14	MAY 804672
15	SCREW
16	TOEPLATE
17	ADJ TOE PLATE
18	MAY 809419
19	WIRE SHIELD
20	MAY 808434
21	MAY 809418
22	SIDE PANEL KIT
23	MAY 807852
24	WATER VALVE
25	MAY 808433
26	MAY 809422
27	MAY 804619
28	SIDE CHANNEL
29	MAY 808670
29	CLAMP
