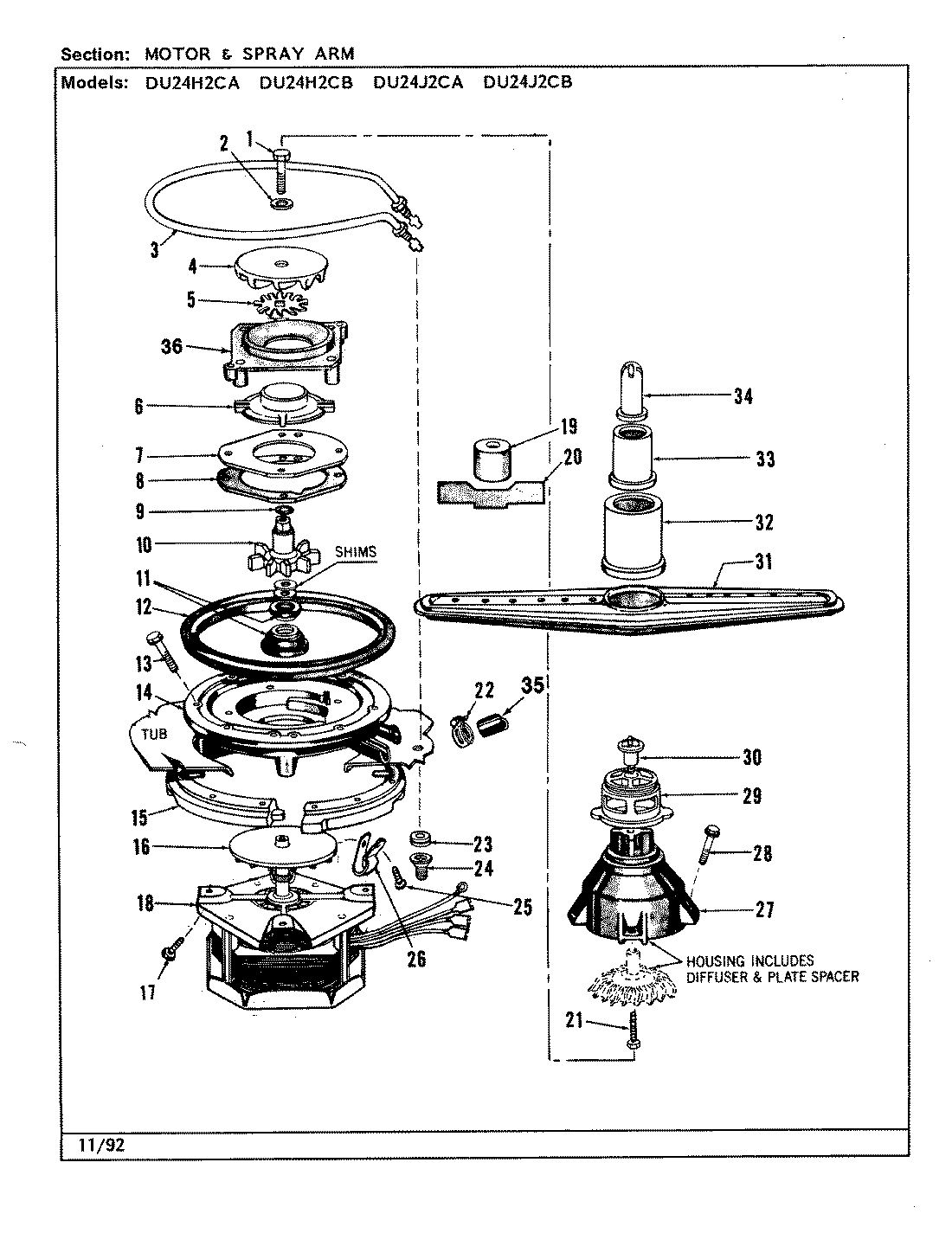

DU24J2CB 04 – MOTOR & SPRAY ARM

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER
4	MAY Y03100007
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	MAY Y03100027
11	GASKET
12	PUMP GASKET
13	MAY 807268
14	MAY Y03100011
15	CLAMP RING
16	WATERSHIELD ASM
17	MAY 809022
18	MAY Y03100010
19	SEAL TOOL
22	MAY 808186
23	GROMMET
24	NUT
25	MAY 807270
26	WIRE CLAMP
27	MAY Y03100006
28	MAY Y03100008
29	MAY 809046
30	SPRAY ARM BOLT
31	MAY Y03100022
32	TOWER BASE
33	MAY 808179
34	MAY 808180
34	BEARING SHIELD
35	DRAIN HOSE
36	MAY 03100012
