DU24J6CB 03 – DOOR – Aparts

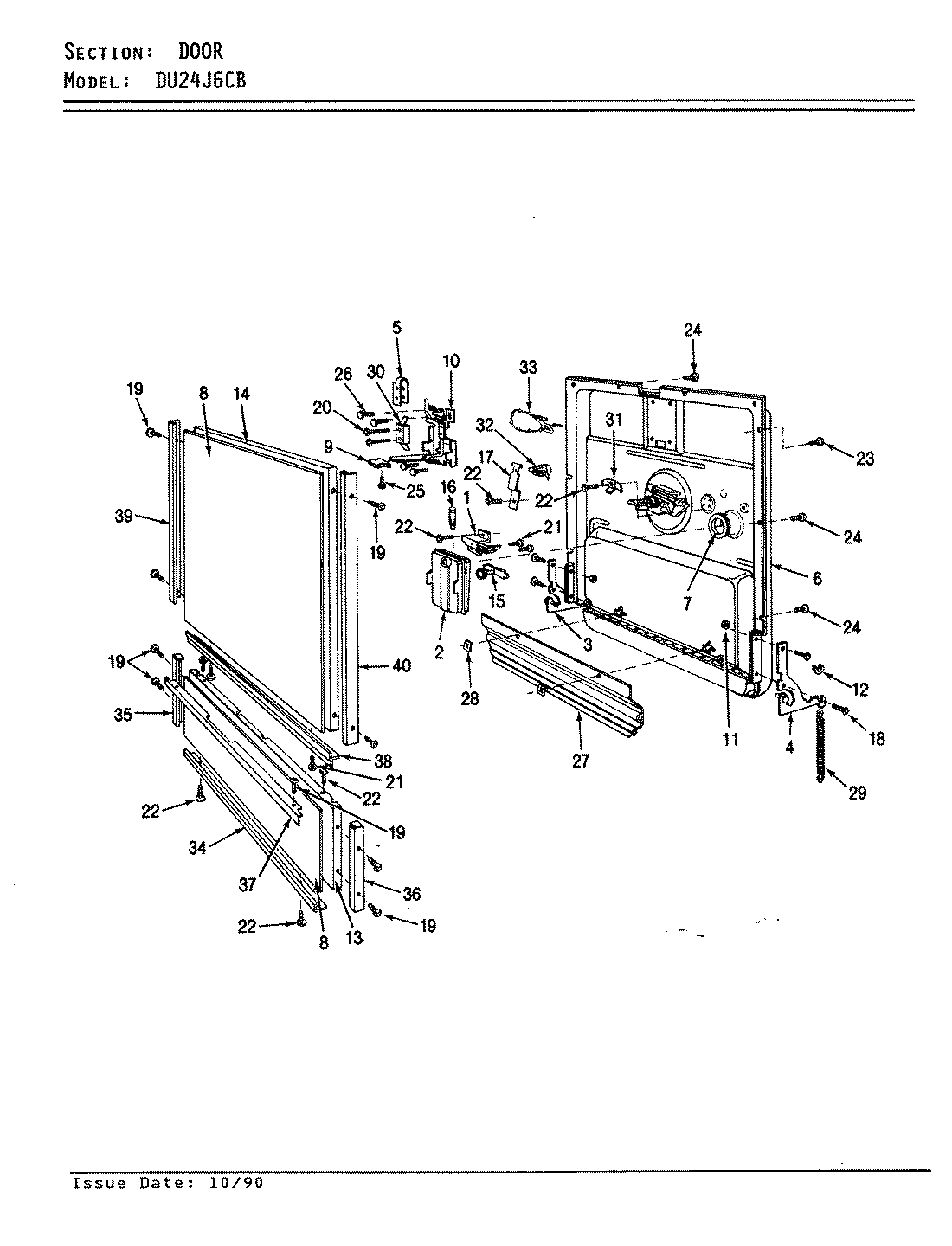

DU24J6CB 03 – DOOR

Products

Position	Product
1	BI-METAL ASM
2	DISPENSER
3	LH ARM
4	RH ARM
5	SWITCH COVER
6	DOOR ASSEMBLY
7	GROMMET
8	ACC PNL INSERT
9	LATCH KNOB
10	LATCH ASM
11	LOCKNUT
12	SPRING PAD
13	ACCESS PANEL
14	OUTER PANEL
15	MAY 807673
16	MAY 03100003
17	RETAINER
18	MAY 803311
19	MAY 809752
20	MAY 808618
21	MAY 807501
22	MAY 808658
23	MAY 808749
24	MAY 809055
25	MAY 809163
26	MAY 809029
27	MAY 809025
28	MAY 809026
29	DOOR SPRING
30	MAY 807043
31	GROUND TERMINAL
32	THERMOSTAT
33	WIRE TIE
34	BOTTOM TRIM
35	LH TRIM
36	RH TRIM
37	ACC PNL TRIM
38	DOOR TRIM
39	DOOR TRIM
40	MAY 809343
40	DOOR TRIM
40	BLACK DOOR KIT
