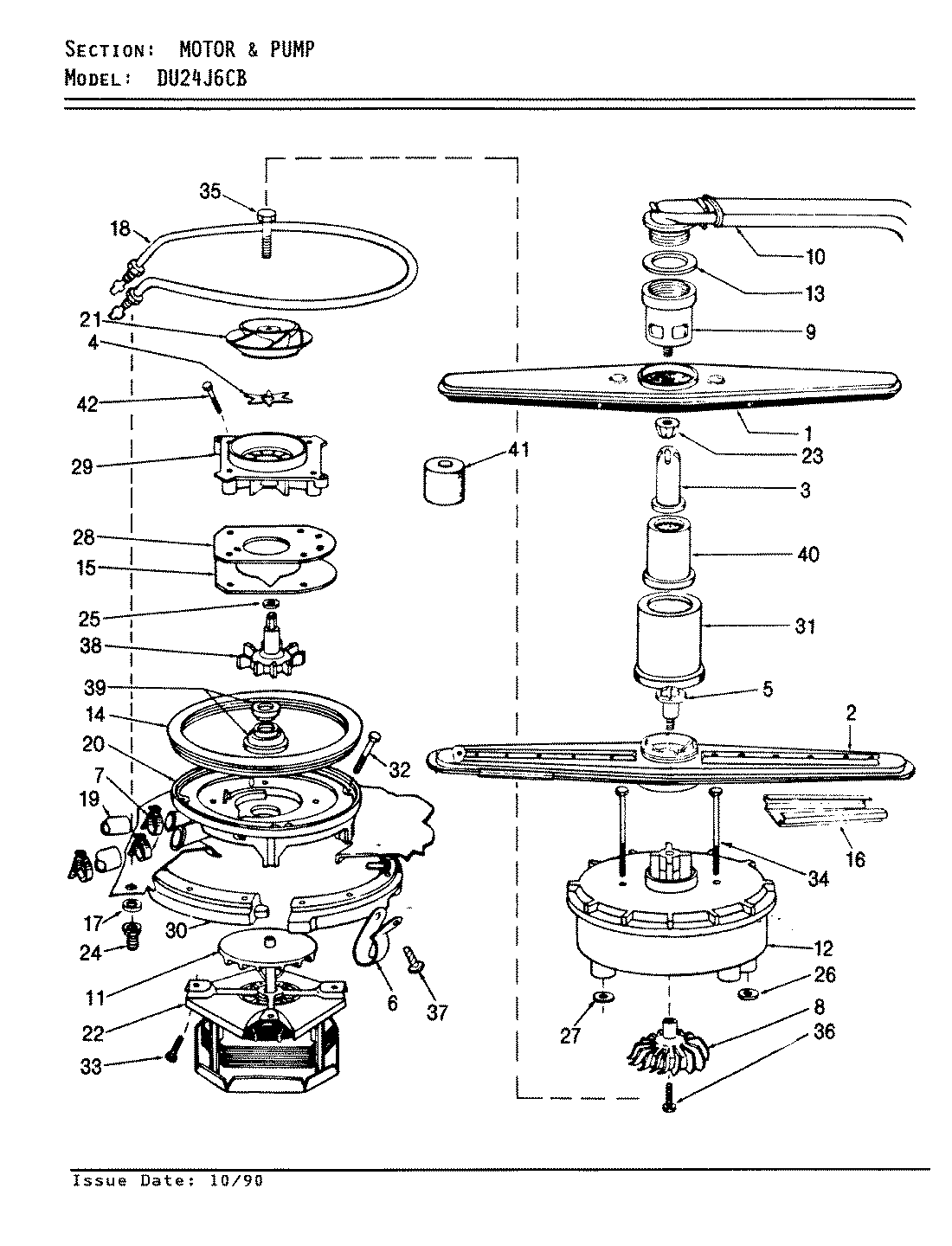

DU24J6CB 06 – MOTOR & PUMP

Products

Position	Product
1	SPRAY ARM
2	MAY Y03100022
3	MAY 808180
4	MAY Y03100008
5	SPRAY ARM BOLT
6	WIRE CLAMP
7	MAY 808186
8	MAY 809014
9	MAY 808183
10	ELBOW & TUBE
11	MAY 809336
12	MAY Y809011
13	MAY 808184
14	PUMP GASKET
15	PUMP GASKET
16	MAY 03100023
17	GROMMET
18	HEATER
19	HOSE CONNECTOR
20	MAY Y03100021
21	MAY Y03100007
22	MAY Y03100010
23	MAY 808181
24	NUT
25	O RING
26	O RING
27	O RING
28	PUMP PLATE
29	MAY 03100012
30	CLAMP RING
31	MAY 808179
32	MAY 03100020
33	MAY 809022
34	MAY 809012
35	MAY 806353
36	MAY 809073
37	MAY 807270
38	MAY Y03100019
39	GASKET
40	TOWER BASE
41	SEAL TOOL
42	MAY 03100009
