DU2916XM0 03 – DOOR , LITERATURE AND OPTIONAL

DU2916XM0 03 – DOOR , LITERATURE AND OPTIONAL

Written by

in

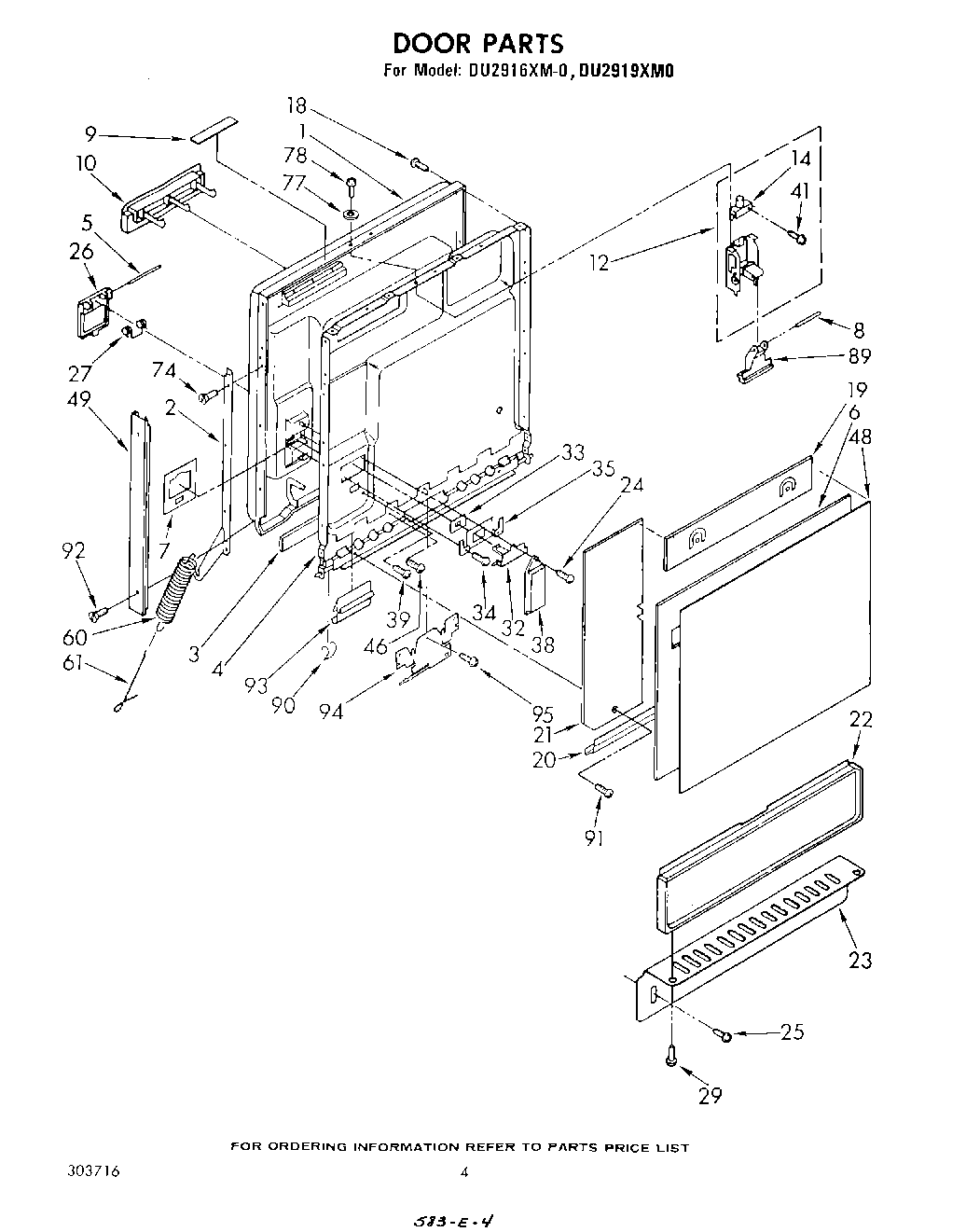

DU2916XM0 03 – DOOR , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT303310
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Washer (Belt Drive)
WPL LIT677967
WPL LIT303716
WPL LIT303819
Dryer
WPL LIT304111
1Door, Inner (Includes Illus. 4)
2Support Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
4Liner, Door
54387043 Whirlpool Door Latch Kit
6Spacer, Panel
7Barrier
8Pin, Pivot
9Label, User Guide
10Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
18WP488729 Whirlpool Refrigerator Door Screw
19Barrier, Console
20Edging, Panel
21Barrier, Door
22WP3367793 Whirlpool Black Access Panel
23Plate, Toe
25WP90767 Whirlpool Screw
27WP8066018 Whirlpool Spring Assembly
29WP302868 Whirlpool Screw
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39Screw, 8 x 1/2 (3)
41Screw, 6-32 x 1
48xxPanel, Front
49Trim, Door (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
89Lever, Release
90Clip, Wire
91W11693756 Whirlpool Screw Assembly
92302251 Whirlpool Dishwasher Screw
93Retainer, Clip
94Shield, Harness
95350956 Whirlpool Spray Assembly
9572113 Whirlpool Touch-Up Paint
9572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
95Leveler (Thinner)
95350930 Whirlpool White Spray Paint
95799344 Whirlpool Refrigerator Paint
9572017 Whirlpool Appliance Touch-Up Paint White
95WP72107 Whirlpool Touchup
95350942 Whirlpool Spray Paint
95WPL 72112
95Platinum (Uncut)
95Enamal, Toast (1 Qt. Uncut)
95Paint, Spray (13 Oz.) (Platinum)
95Toast
95Enamel, Black (1 Qt. Uncut)
95Golden Harvest (Uncut)
95285006 Whirlpool Spray
9572032 Whirlpool Touch Up Paint Black
95Golden Harvest
