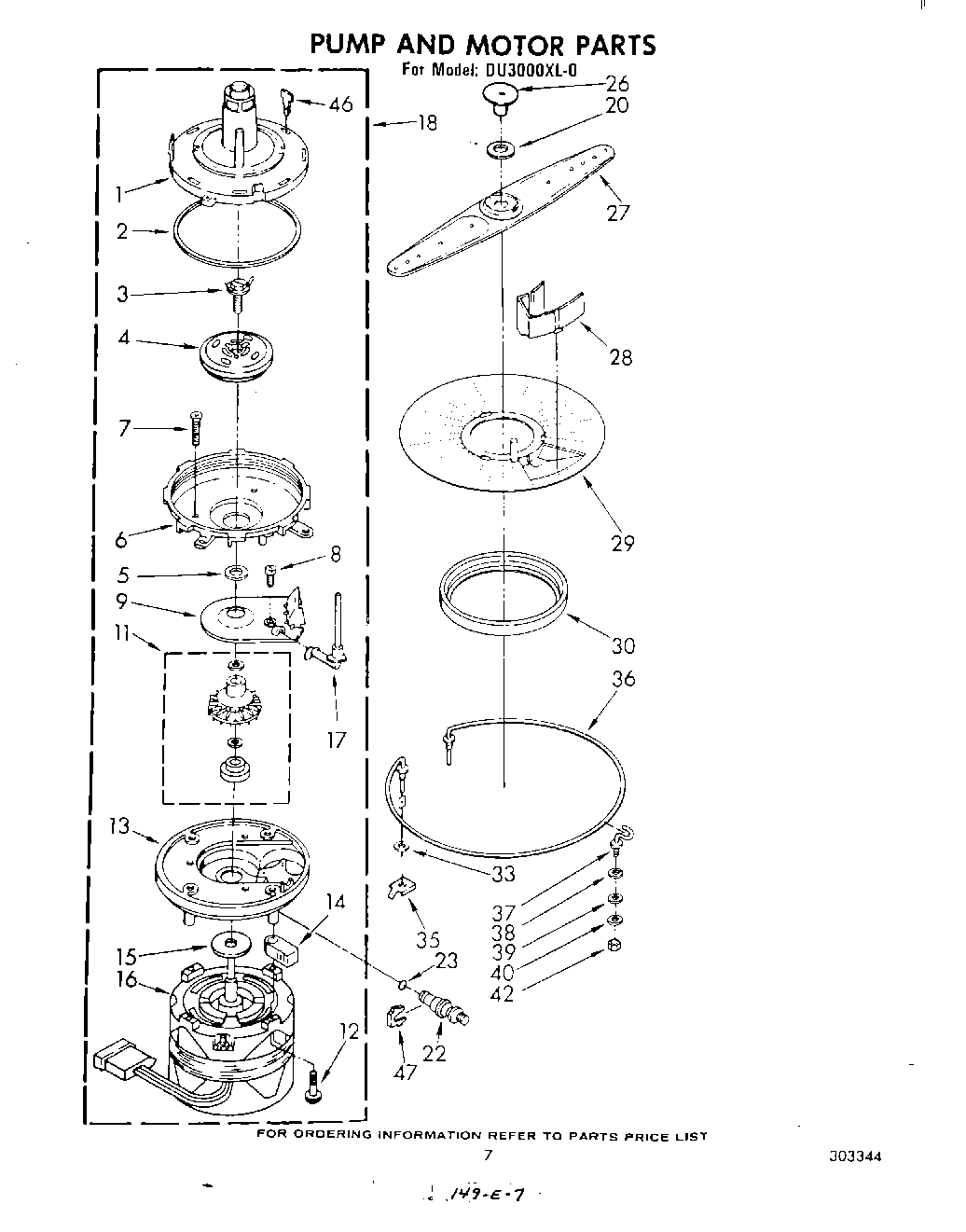

DU3000XL0 05 – PUMP AND MOTOR

DU3000XL0 05 – PUMP AND MOTOR

Written by

in

DU3000XL0 05 – PUMP AND MOTOR

Products

PositionProduct
Motor (General Electric)
1Pump Housing, Upper
2Seal, Ring
3Screw, 10-32 x .75
4Impeller
5Spacer
6Pump Housing, Lower
7718257 Whirlpool Dishwasher Screw
8WP9741232 Whirlpool Dishwasher Screw
9Coverplate
11Kit, Impeller Drain
12Screw, 13-16 (4)
13Base, Pump
14Support, Pump (4)
15W10909679 Whirlpool Dishwasher Slinger
16Motor (Emerson)
17Bleeder Assembly
18Pump & Motor Assembly (Alternate)
18Pump & Motor Assembly (Alternate)
18Pump & Motor Assembly (Alternate)
20WP719576 Whirlpool Dishwasher Bearing
22675238 Whirlpool Check Valve
23“O“ Ring
26Cap, Nozzle
27Spray Arm, Lower
28Guard, Screen
29Screen, Sump
30717000 Whirlpool Dishwasher Gasket
33WP717273 Whirlpool Dishwasher Rubber Washer
35Nut, Heater Element
36Heater (Alternate)
36Heater (Alternate)
36Heater (Alternate)
36Heater (Alternate)
37Support, Heater (2)
38Washer, Retainer (2)
39Washer (2)
40Washer (2)
42Nut, 10-32 (2)
46Key, Pump Housing
47Retainer, Check Valve
