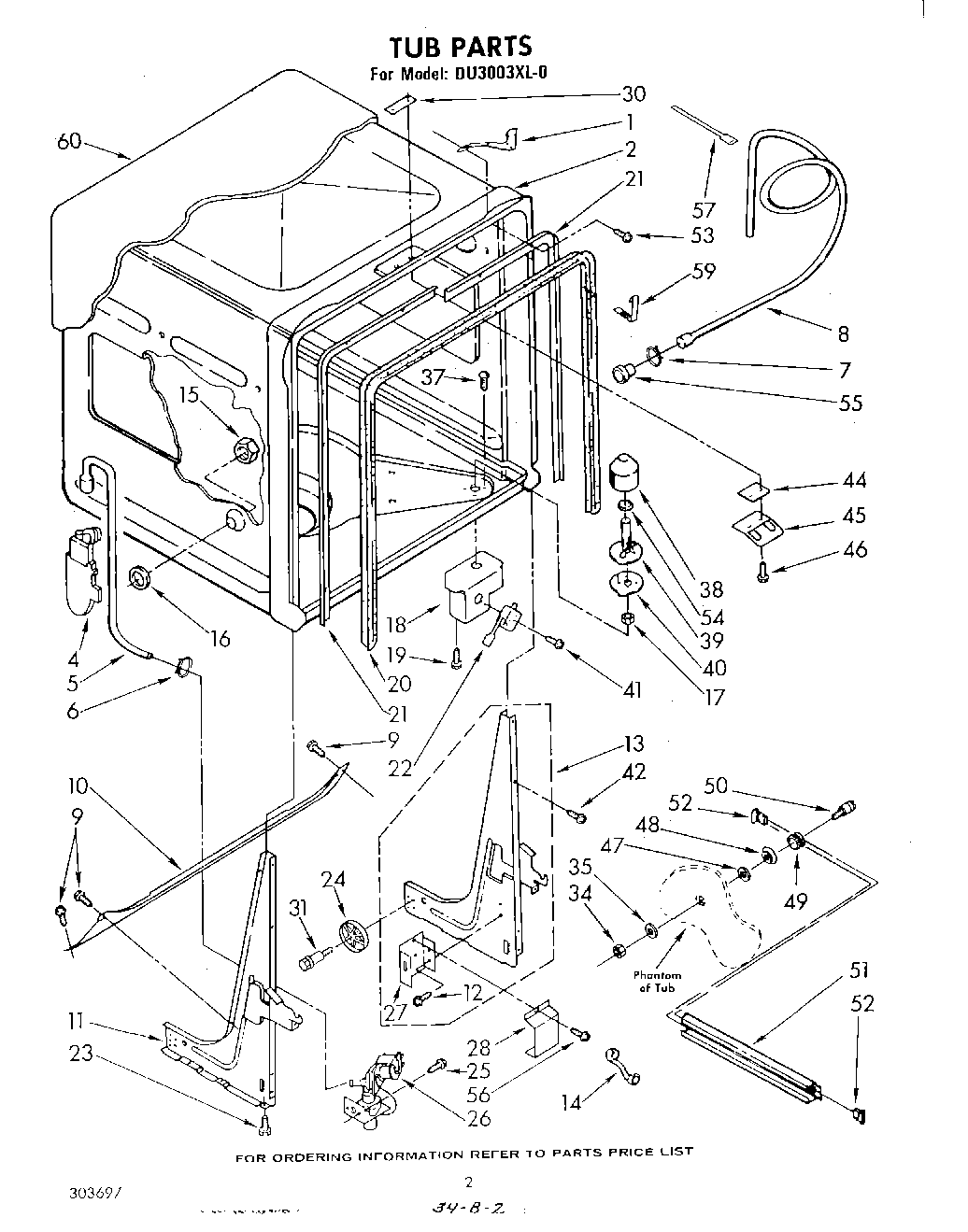

DU3003XL0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, Black (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
1	Bracket, Mounting (2)
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
59	Clip, Gasket (2)
60	WPL 303697
60	WPL 303311
60	350956 Whirlpool Spray Assembly
60	72017 Whirlpool Appliance Touch-Up Paint White
60	WP72107 Whirlpool Touchup
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	72113 Whirlpool Touch-Up Paint
60	Golden Harvest
60	Toast
60	Guide, Use & Care
60	Tag, Energy Fact
60	WPL 799351
60	W11086533 Whirlpool Dishwasher Shield
60	Paint, Spray 13 Oz. (Avocado)
60	Kit, Epoxy Patch (White)
60	Paint, Touch-Up 1/2 Oz. (Coffee)
60	72109 Whirlpool Dacor Avocado Touch-Up Paint
60	72032 Whirlpool Touch Up Paint Black
60	285006 Whirlpool Spray
60	350930 Whirlpool White Spray Paint
60	350942 Whirlpool Spray Paint
60	WPL 72112
60	paint, spray 13 oz. (coffee)
60	Paint, Spray (13 Oz.) (Platinum)
60	Leveler (Thinner) (2oz.)
