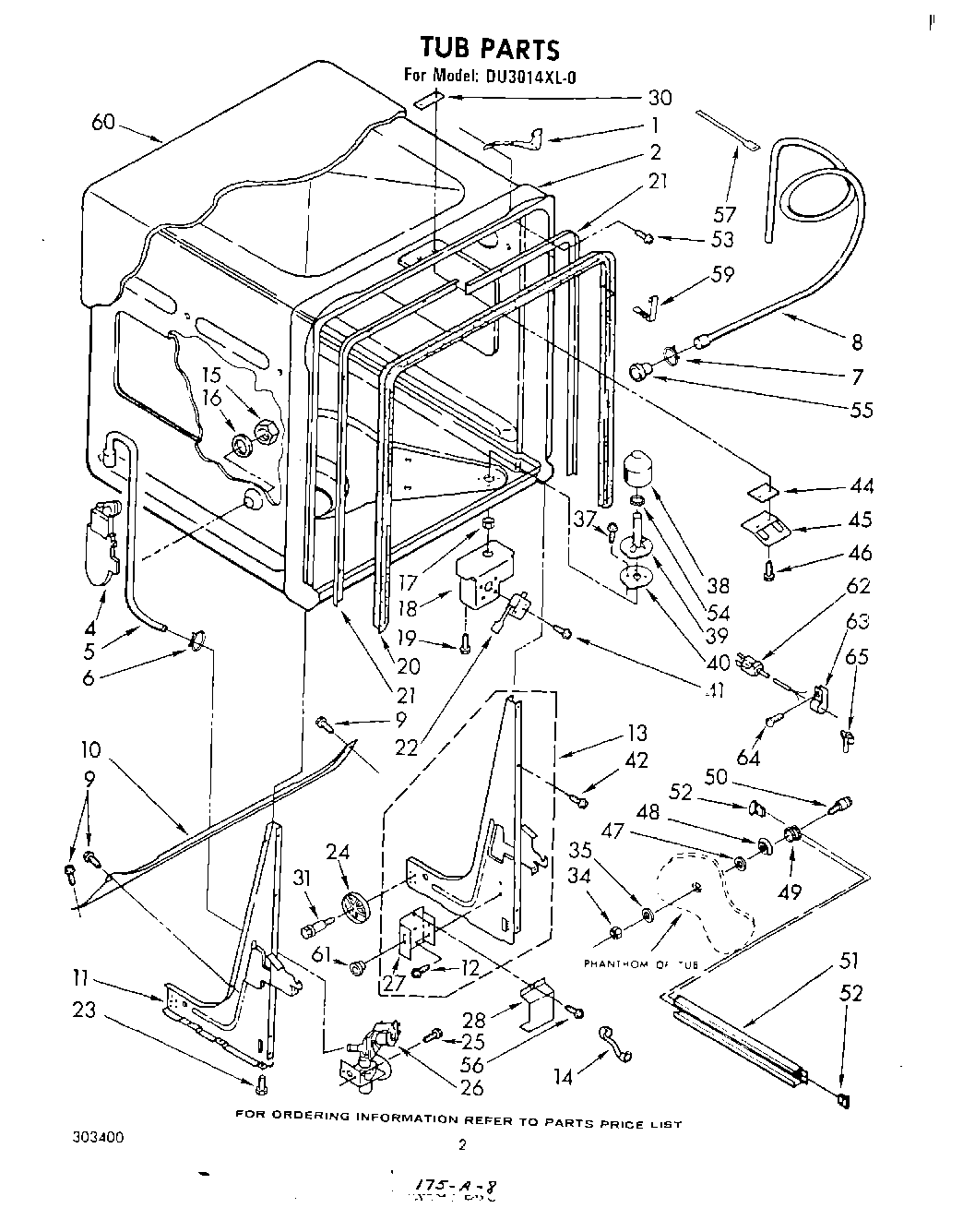

DU3014XL0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT303368
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, Black (1 Qt. Uncut)
	Label, User Guide
	Golden Harvest (Uncut)
	WPL LIT303400
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
	WPL LIT303310
1	Bracket, Mounting (2)
2	Tub Assembly
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
59	Clip, Gasket (2)
60	W11086533 Whirlpool Dishwasher Shield
61	WPL 302770
62	WPL 302764
63	Clamp, Strain Relief
64	Screw, 8-18 x 5/8 (10)
65	350956 Whirlpool Spray Assembly
65	WPL 770754
65	WP72107 Whirlpool Touchup
65	350930 Whirlpool White Spray Paint
65	72017 Whirlpool Appliance Touch-Up Paint White
65	WPL 303209
65	350942 Whirlpool Spray Paint
65	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
65	WPL 799351
65	Leveler (Thinner) (2oz.)
65	Kit, Epoxy Patch (White)
65	Paint, Spray 13 Oz. (Avocado)
65	Paint, Touch-Up 1/2 Oz. (Coffee)
65	72109 Whirlpool Dacor Avocado Touch-Up Paint
65	72032 Whirlpool Touch Up Paint Black
65	285006 Whirlpool Spray
65	Golden Harvest
65	paint, spray 13 oz. (coffee)
