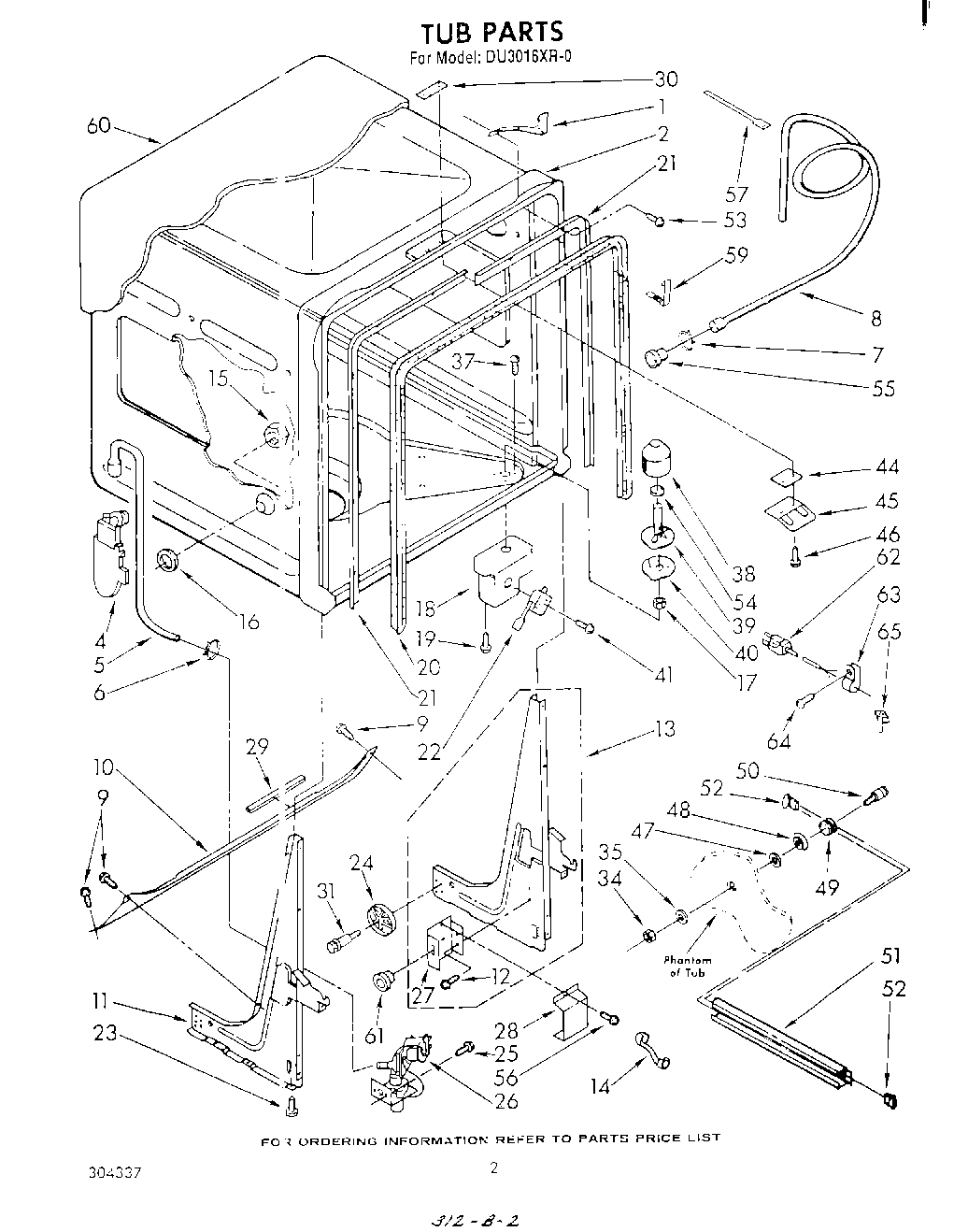

| 1 | Bracket, Mounting (2) |
| 2 | Tub Assembly |
| 4 | Inlet, Water |
| 5 | Hose, Inlet |
| 6 | WP596669 Whirlpool Hose Clamp |
| 7 | WP356138 Whirlpool Hose Clamp |
| 8 | 675544 Whirlpool Drain Hose |
| 10 | Brace |
| 11 | Leg & Hinge Assembly, L.H. |
| 12 | Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1) |
| 13 | Leg & Hinge Assembly, R.H. |
| 14 | Relief, Strain |
| 15 | Nut, 7/18-16 |
| 16 | Gasket |
| 17 | Nut |
| 18 | Bracket, Overflow Switch |
| 19 | Screw, 8 x 1/2 (3) |
| 20 | Gasket (Alternate) |
| 20 | Gasket (Alternate) |
| 21 | Retainer (R.H.) |
| 21 | Retainer (L.H.) |
| 22 | Switch, Pressure (Alternate) |
| 22 | Retainer-Main Top (2 Required) |
| 22 | Switch, Pressure (Alternate) |
| 23 | 8193716 Whirlpool Leveling Leg |
| 24 | WP302819 Whirlpool Dishwasher Wheel |
| 26 | Valve, Water Inlet (Alternate) |
| 26 | Valve, Water Inlet (Alternate) |
| 27 | Box, Terminal |
| 28 | 300068 Whirlpool Dishwasher Cover Assembly |
| 29 | Edge Protector |
| 30 | Nut, Twin Spring |
| 31 | Screw, Shoulder |
| 34 | Nut, Lock |
| 35 | Washer (8) |
| 37 | WP488729 Whirlpool Refrigerator Door Screw |
| 38 | Float |
| 39 | Standpipe, Overflow |
| 40 | Gasket, Overflow |
| 41 | Screw, 4-40 x 3/4 |
| 44 | Shim |
| 45 | Strike |
| 46 | WP308685 Whirlpool Microwave Screw |
| 47 | Washer (8) |
| 48 | Washer, Cup |
| 49 | Roller, Rack Track |
| 50 | Screw, Shoulder (8) |
| 51 | Track (2) |
| 52 | Endcap, Front or Rear (2) |
| 54 | Gasket, Standpipe (2) |
| 55 | WPL 301656 |
| 56 | WP90767 Whirlpool Screw |
| 57 | WPW10144763 Whirlpool Tie Wire |
| 59 | Clip, Gasket (2) |
| 60 | W11086533 Whirlpool Dishwasher Shield |
| 61 | WPL 302770 |
| 62 | WPL 302764 |
| 63 | Clamp, Strain Relief |
| 64 | Screw, 8-18 x 5/8 (10) |
| 65 | WPL 770754 |
