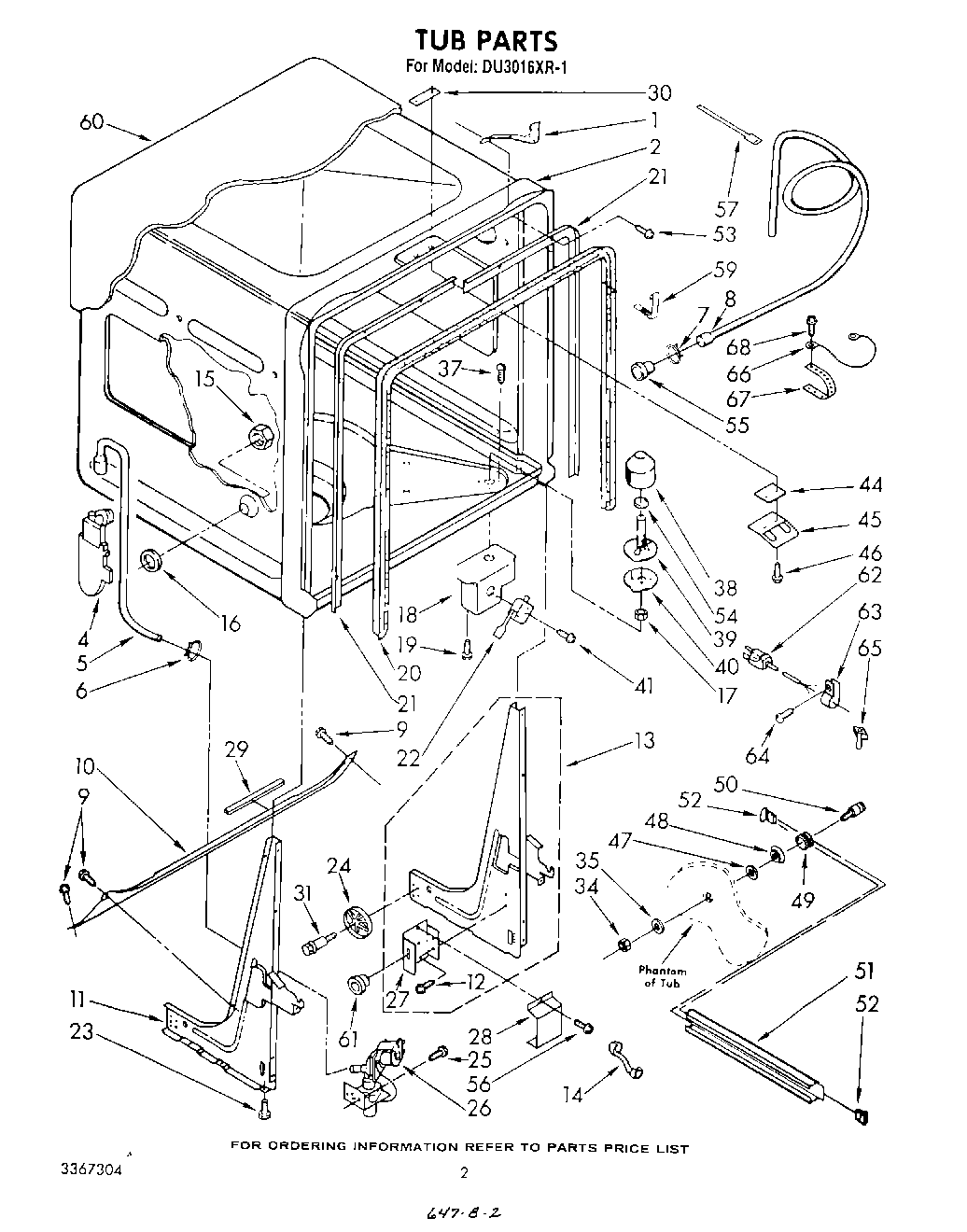

DU3016XR1 02 – TUB

Products

PositionProduct
1Bracket, Mounting (2)
2tub assembly
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Leg & Hinge Assembly, R.H.
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket (Alternate)
20Gasket (Alternate)
21Retainer (R.H.)
21Retainer (L.H.)
22Switch, Pressure (Alternate)
22Switch, Pressure (Alternate)
22Retainer-Main Top (2 Required)
238193716 Whirlpool Leveling Leg
24WP302819 Whirlpool Dishwasher Wheel
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet (Alternate)
27Box, Terminal
28300068 Whirlpool Dishwasher Cover Assembly
29Edge Protector
30Nut, Twin Spring
31Screw, Shoulder
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
54Gasket, Standpipe (2)
55WPL 301656
56WP90767 Whirlpool Screw
57WPW10144763 Whirlpool Tie Wire
59Clip, Gasket (2)
60W11086533 Whirlpool Dishwasher Shield
61WPL 302770
62WPL 302764
63Clamp, Strain Relief
64Screw, 8-18 x 5/8 (10)
65WPL 770754
66WPL 303485
67Strap, Ground
68Screw, Ground (10-24 x 1)
