DU3016XR1 03 – DOOR , LITERATURE AND OPTIONAL

DU3016XR1 03 – DOOR , LITERATURE AND OPTIONAL

Written by

in

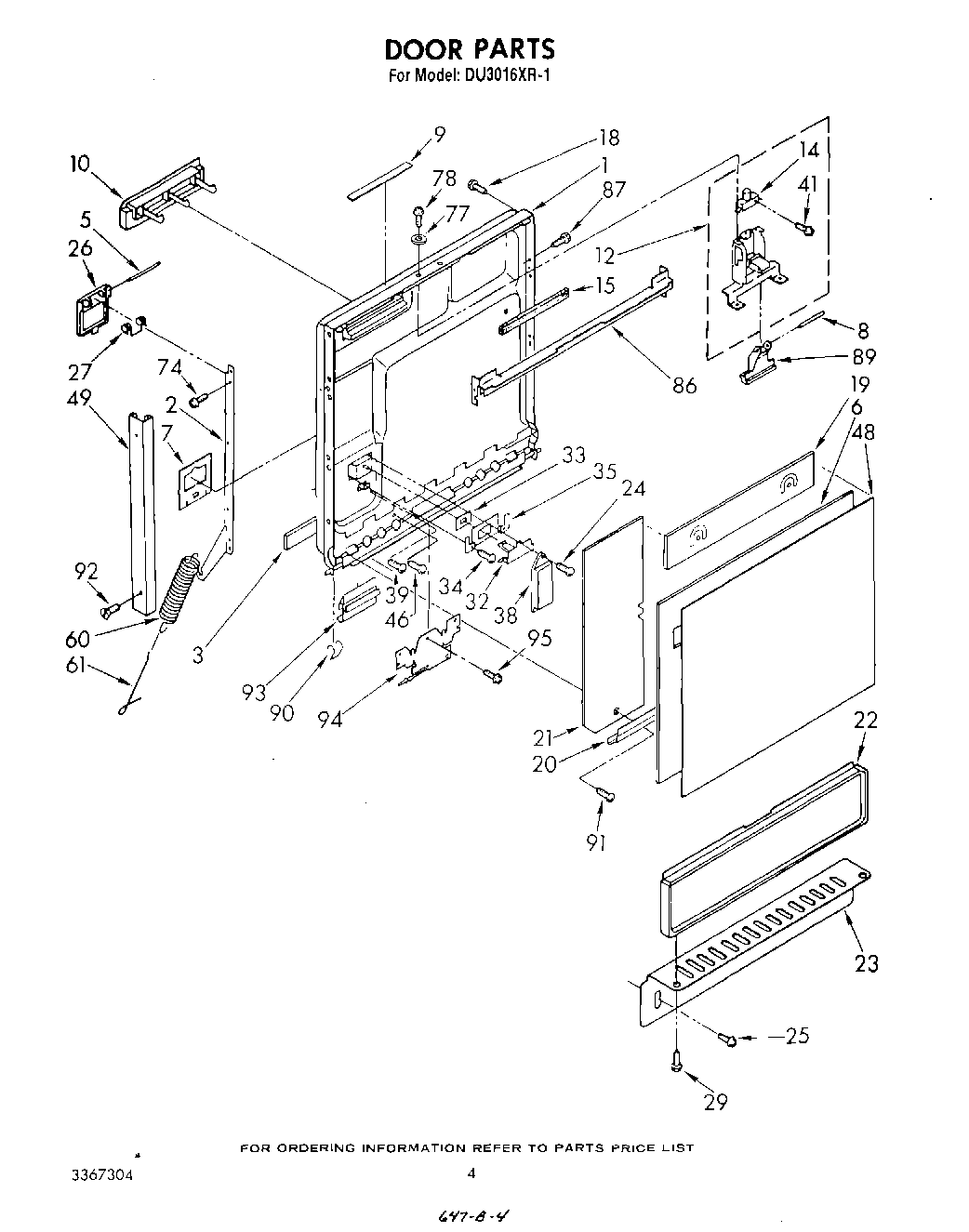

DU3016XR1 03 – DOOR , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3367304
Instructions, Installation (Supplement) (Locating Your Water Supply)
WPL LIT3367228
WPL LIT304671
1Door, Inner
2Support, Door (R.H.)
2Support, Door (L.H.)
3Gasket, Door
54387043 Whirlpool Door Latch Kit
6Spacer, Panel
7Barrier
8Pin, Pivot
9Label, User Guide
10Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
15Baffle
18Screw, 8 x 1-7/8 (2)
19Barrier, Console
20Edging, Panel
21Barrier, Door
22WP3367793 Whirlpool Black Access Panel
23Plate, Toe
25WP90767 Whirlpool Screw
27WP8066018 Whirlpool Spring Assembly
29WP302868 Whirlpool Screw
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
41Screw, 6-32 x 1
48Panel, Front
49Trim, Door (L.H.)
49Trim, Door R.H.
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
86Rail, Support
87WP489069 Whirlpool Compactor Screw
89Lever, Release
90Clip, Wire
91W11693756 Whirlpool Screw Assembly
92Screw, 8 x 1/2 (4)
93Retainer, Clip
94Shield, Harness
9572032 Whirlpool Touch Up Paint Black
9572113 Whirlpool Touch-Up Paint
95WP72107 Whirlpool Touchup
95799344 Whirlpool Refrigerator Paint
9572017 Whirlpool Appliance Touch-Up Paint White
95Kit, Epoxy Patch (White)
95350956 Whirlpool Spray Assembly
95WPL 675478
95350930 Whirlpool White Spray Paint
95285006 Whirlpool Spray
95Enamal, Toast (1 Qt. Uncut)
95Leveler (Thinner)
95Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
95Screw, 8-18 x 5/8
95Paint, Spray (13 Oz.) (Platinum)
95Toast
95Platinum (Uncut)
95WPL 72112
95Golden Harvest
95350942 Whirlpool Spray Paint
9572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
95Enamel, Black (1 Qt. Uncut)
95Golden Harvest (Uncut)
