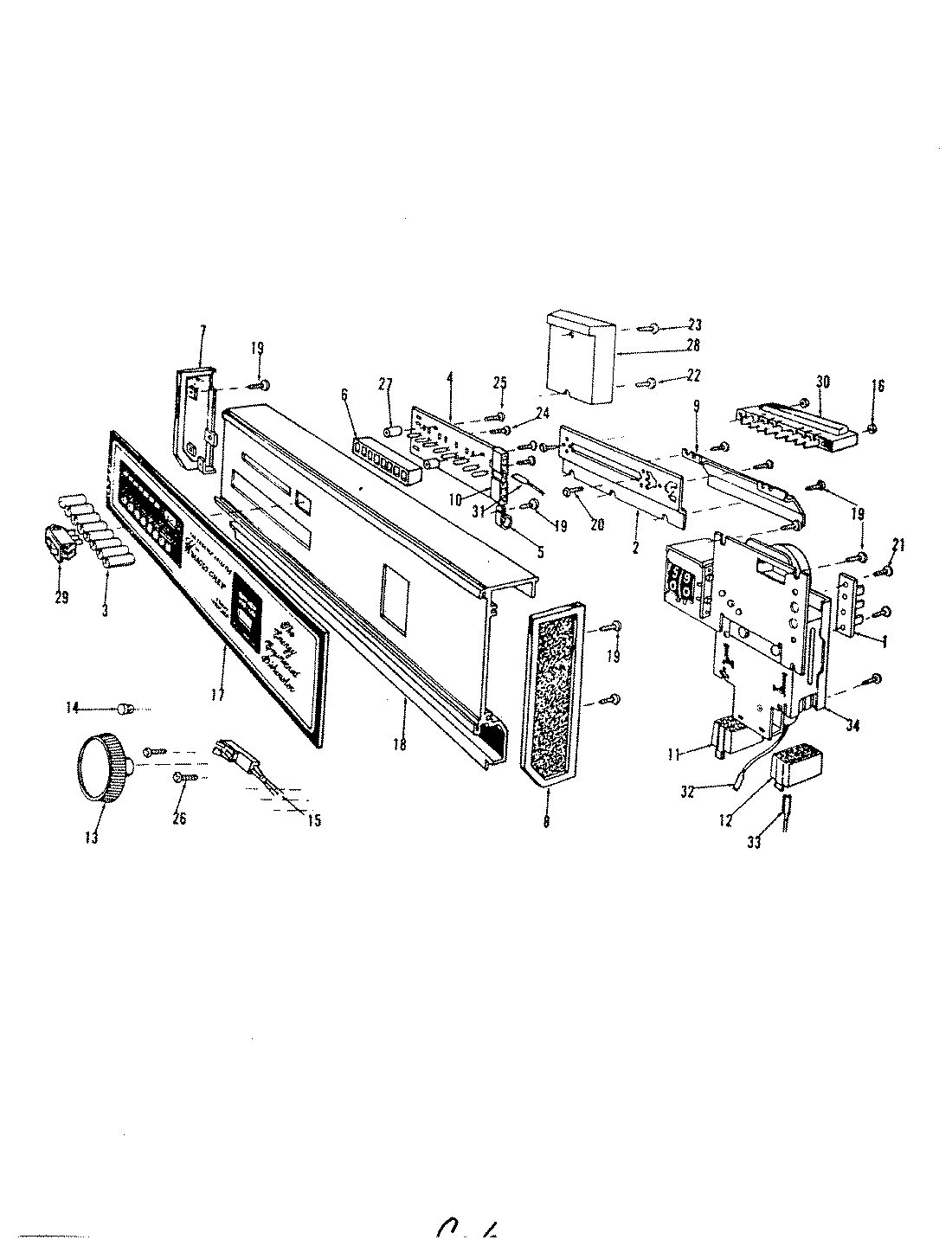

DU35A-1 01 – CONTROL PANEL – Aparts

DU35A-1 01 – CONTROL PANEL

Products

Position	Product
2	MAY 806591
3	PUSH BUTTON
4	MAY 808168
5	MAY 807212
6	DIVIDER
7	LH END CAP
8	RH END CAP
9	MAY 807221
9	MAY 806972
10	MAY 807921
11	RH TIMER HOUSNG
12	LH TIMER HOUSNG
13	MAY 807094
14	MAY 807096
15	LIGHT ASM
16	MAY 803346
17	MAY 808211
18	MAY 808213
19	SCREW
21	MAY 807501
23	SCREW
24	MAY 807141
25	SCREW
26	MAY 805324
27	MAY 805323
28	MAY 807425
29	MAY 807737
30	MAY 807281
31	TERMINAL
32	TERMINAL
33	MAY 808333
34	MAY 808134
