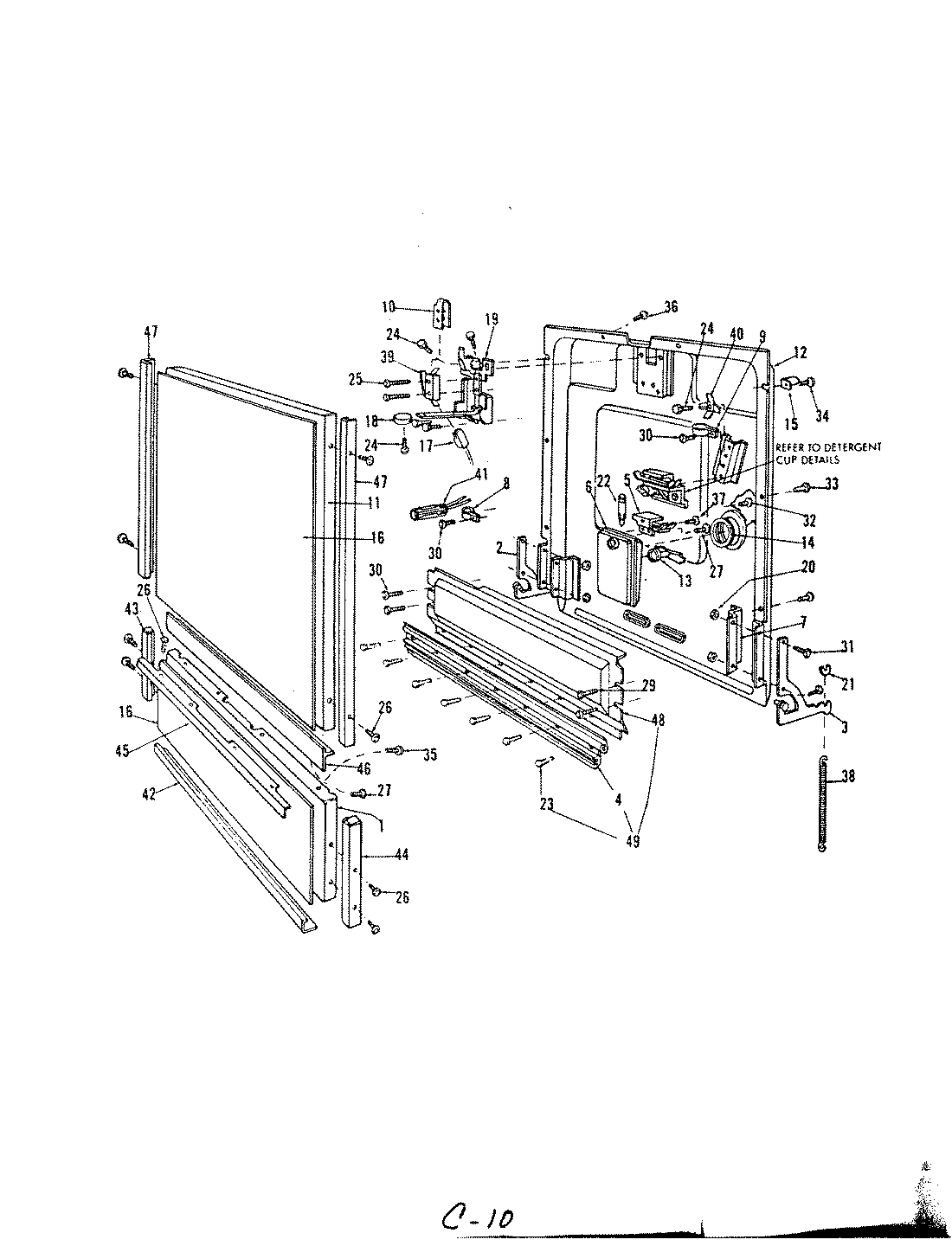

DU35A-2 03 – DOOR – Aparts

DU35A-2 03 – DOOR

Products

Position	Product
1	PANEL
2	LH ARM
3	RH ARM
4	MAY 808331
5	BRACKET
6	DISPENSER
7	ARM BRACKET
8	MAY 805340
9	MAY 807212
10	SWITCH COVER
11	MAY 807595
12	INNER PANEL
13	MAY 807673
14	GROMMET
15	DOOR GUIDE
16	INSERT, DOOR PANEL
16	MAY 807644
16	PANEL INSERT
16	MAY 808215
17	INSULATOR
18	KNOB
19	LATCH ASM
20	MAY 800928
21	SPRING PAD
22	MAY 806757
23	MAY 808330
24	SCREW
25	MAY 803051--
26	MAY 807293
27	MAY 807501
28	MAY 805063
29	SCREW
30	SCREW
31	MAY 803311
32	SCREW
33	SCREW
34	MAY 806976
35	MAY 807784
36	SCREW
37	MAY 804895
38	DOOR SPRING
39	MAY 807043
40	GROUND TERMINAL
41	MAY 808280
42	BOTTOM TRIM
43	LH TRIM
44	RH TRIM
45	ACC PNL TRIM
46	DOOR TRIM
47	DOOR TRIM
48	MAY 808329
49	VENT BAFFLE
