DU35A-2 04 – FRAME PARTS – Aparts

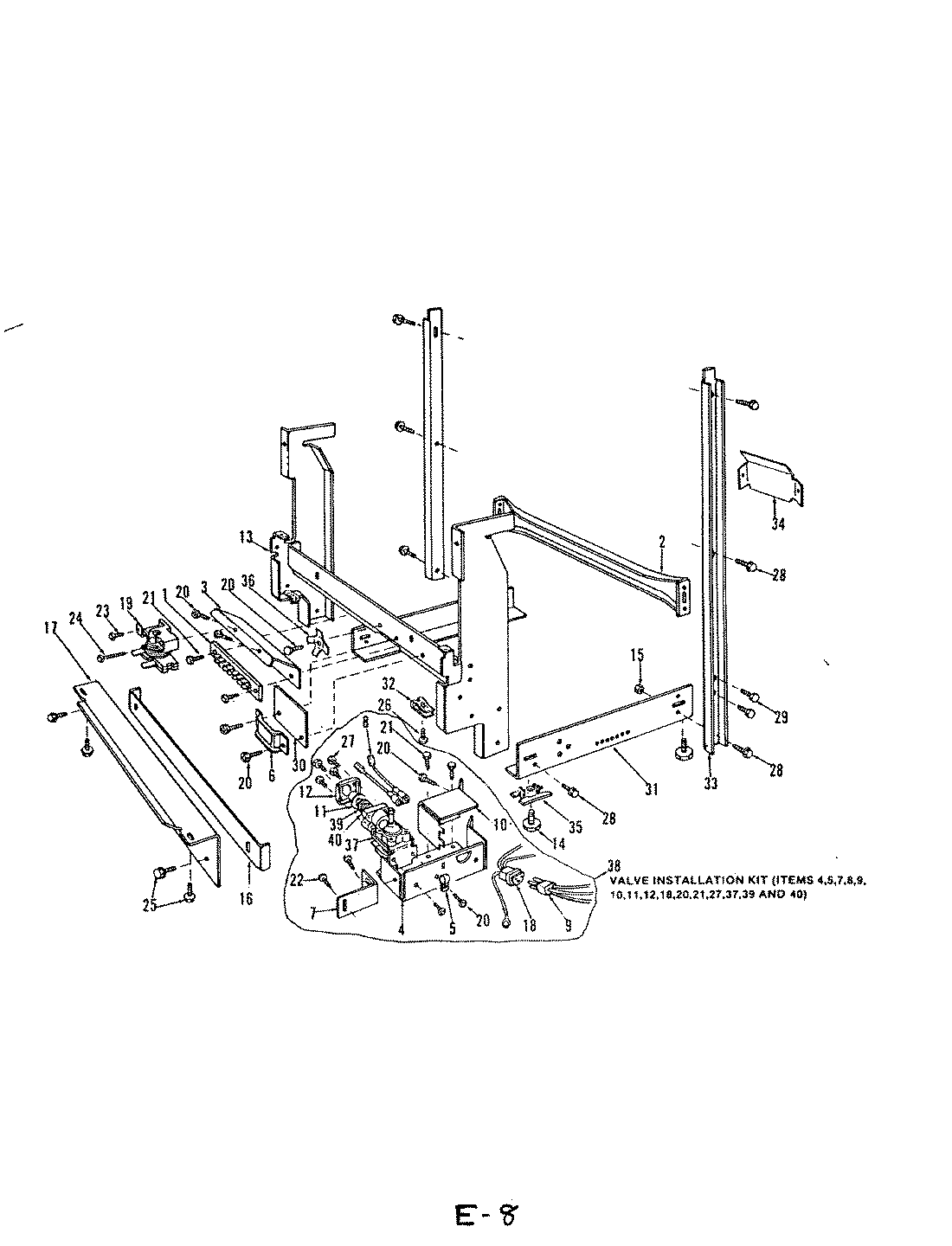

DU35A-2 04 – FRAME PARTS

Products

Position	Product
1	MAY 807486
2	MAY 807852
3	MAY 807849
4	MAY 808340
5	MAY 805584
6	CLAMP
7	MAY 808339
8	MAY 808354
9	MAY 808356
10	MAY 808341
11	FITTING
12	FITTING RETAINR
13	MAY 807848
14	MAY 807672
15	MAY 804619
16	TOE PLATE
17	TOE PLATE
18	MAY 808358
19	RELAY
20	SCREW
22	MAY 807501
23	MAY 806593
24	MAY 804672
25	SCREW
26	MAY 807784
27	SCREW
28	MAY 806889
29	MAY 807950
30	WIRE SHIELD
31	SIDE CHANNEL
32	MAY 808170
33	CHANNEL
34	MAY 808342
35	TEENUT
36	GROUND TERMINAL
37	MAY 808467
38	MAY 808362
39	MAY 806100
40	MAY 807609
