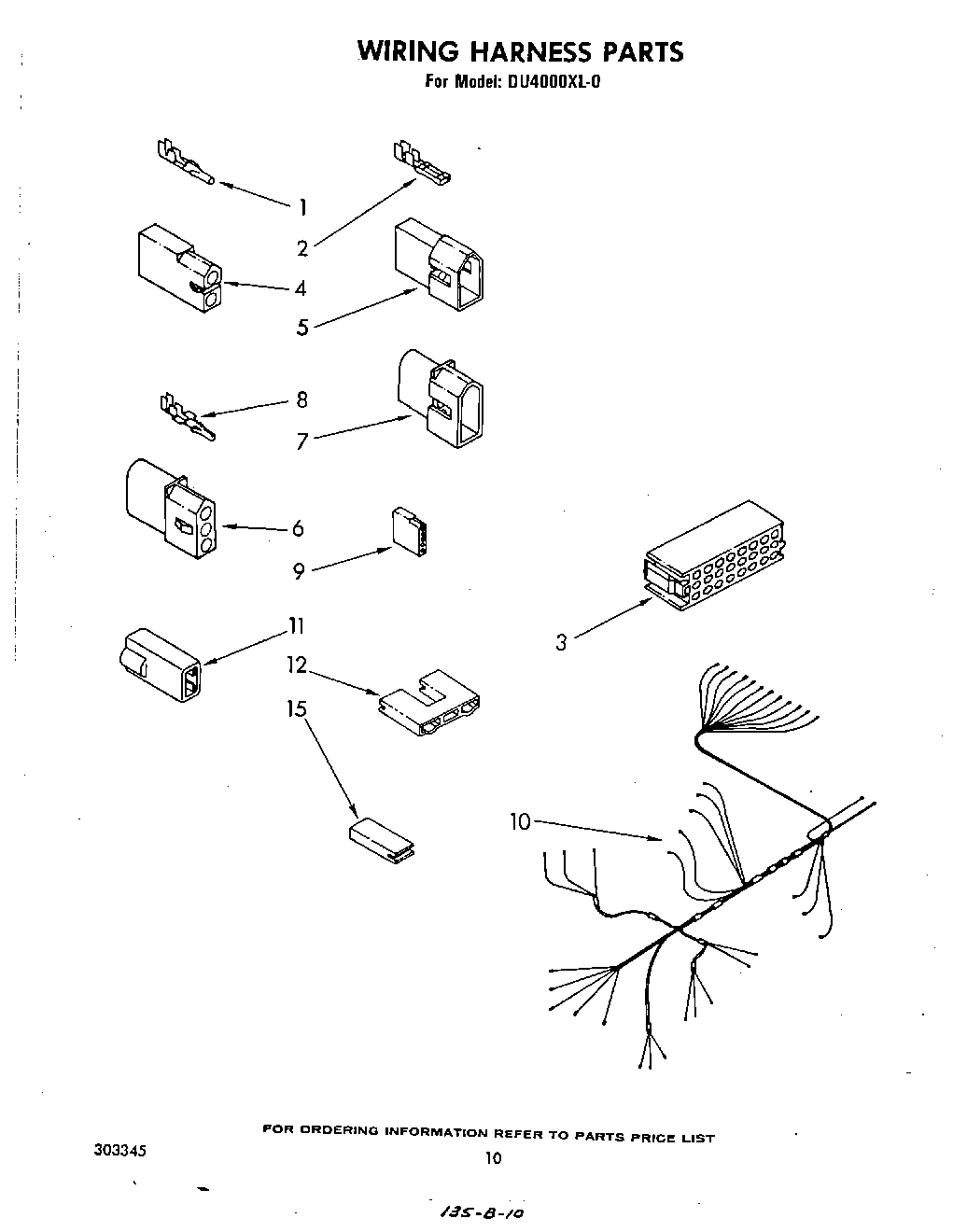

DU4000XL0 07 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	W10876590 Whirlpool Connector
4	Receptacle, Latching (2-Way) (Uses Terminal 94614)
5	WP717253 Whirlpool Dishwasher Connector
6	353424 Whirlpool Connector
7	Connector (Door Switch)
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
11	Insulator, Terminal
12	Terminal Insulator
12	Connector Block (Alternate)
15	Connector Block
