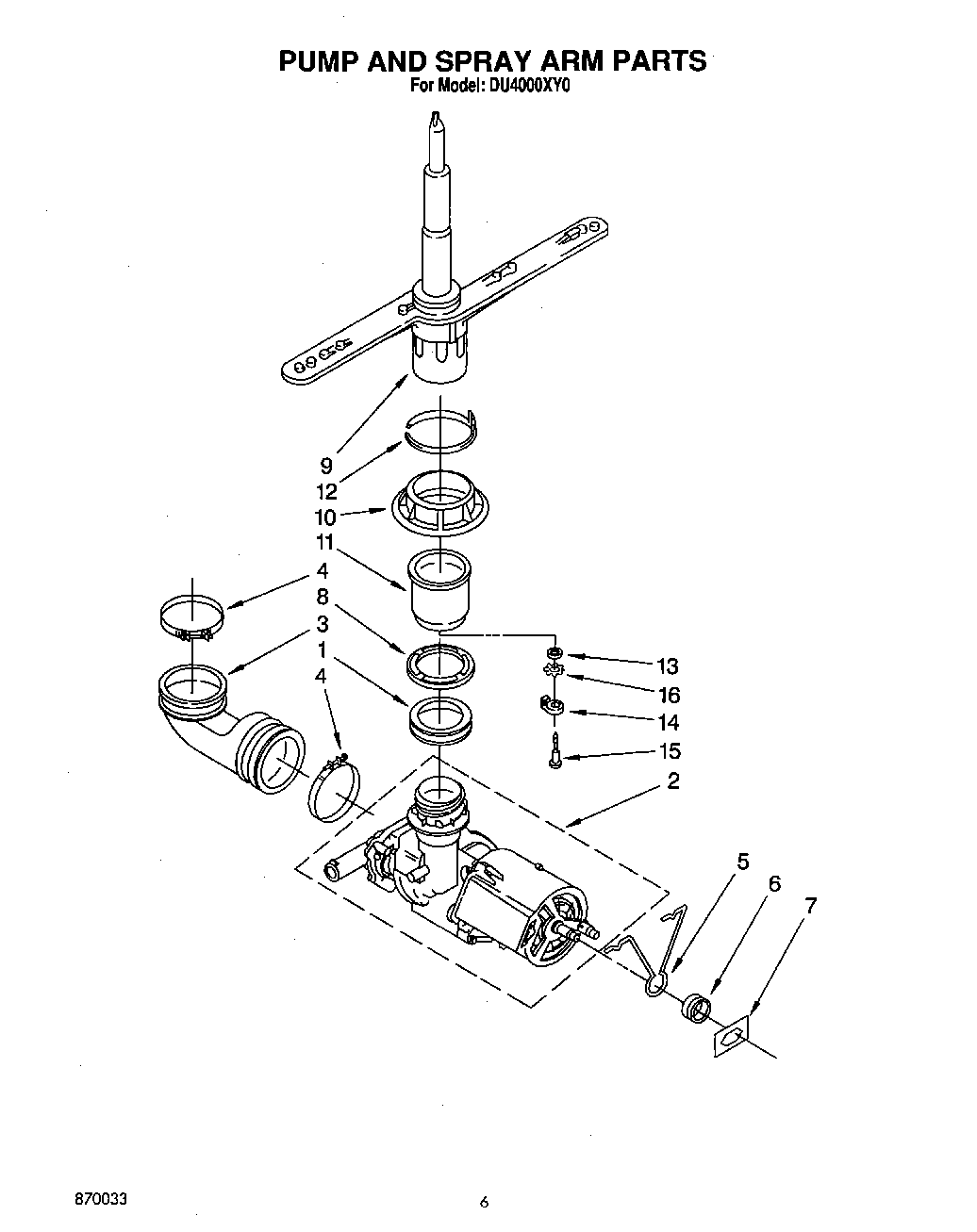

DU4000XY0 04 – PUMP AND SPRAY ARMadmin2025-04-26T11:06:19+00:00DU4000XY0 04 – PUMP AND SPRAY ARM ProductsPositionProduct1Grommet, Pump Seal2PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE3W11189178 Whirlpool Dishwasher Hose4Clamp (2)5Support, Motor6Grommet, Motor Support7Push-Nut, Motor Support8Washer, Grommet9Spray Arm, Assembly Lower10Nut, Pump Outlet12WP3369045 Whirlpool Dishwasher Seal13Washer143371746 Whirlpool Dishwasher Bearing15WP3371745 Whirlpool Dishwasher Support16Washer, Curved
