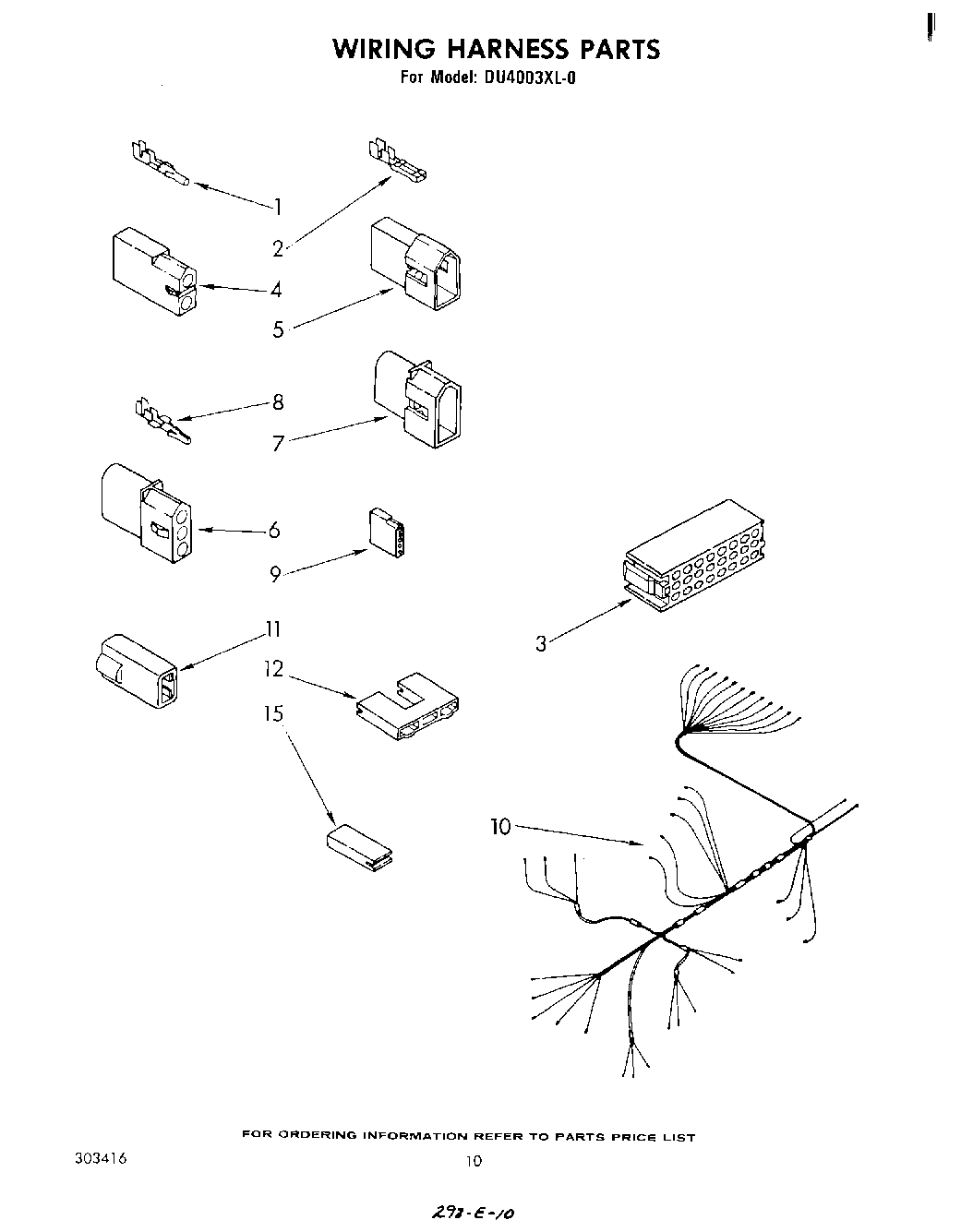

DU4003XL0 07 – WIRING HARNESS

Products

PositionProduct
1WP94614 Whirlpool Terminal
2Terminal, Female
3W10876590 Whirlpool Connector
4Receptacle, Latching (2-Way) (Uses Terminal 94614)
5WP717253 Whirlpool Dishwasher Connector
6353424 Whirlpool Connector
7Connector (Door Switch)
8WP596797 Whirlpool Terminal
9Receptacle (5-Circuit)
10Harness, Wiring
11Insulator, Terminal
12Terminal Insulator
12Connector Block (Alternate)
15Connector Block
