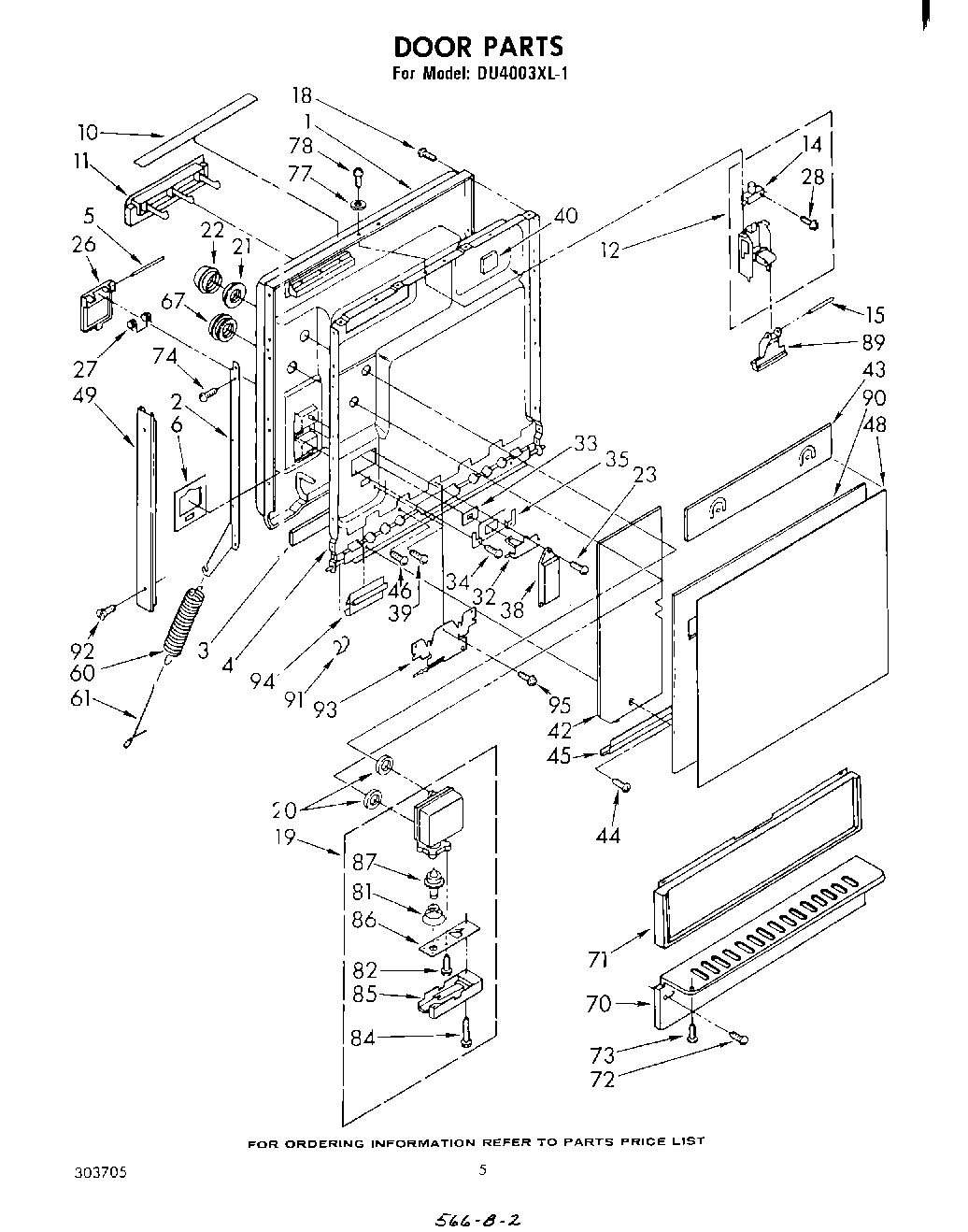

DU4003XL1 04 – DOOR

DU4003XL1 04 – DOOR

Written by

in

DU4003XL1 04 – DOOR

Products

PositionProduct
1Door, Inner (Includes Illus. 4)
2Support Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
4Liner, Door
54387043 Whirlpool Door Latch Kit
6Barrier
10Label, User Guide
11Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
15Pin, Pivot
18WP488729 Whirlpool Refrigerator Door Screw
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Leveler
27WP8066018 Whirlpool Spring Assembly
28Screw, 6-32 x 1
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39Screw, 8 x 1/2 (3)
40Spacer, Timer
42Barrier, Door
43Barrier, Console
44W11693756 Whirlpool Screw Assembly
45Edging, Panel
48Panel, Front
49Trim, Door (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
70Plate, Toe
71WP3367793 Whirlpool Black Access Panel
72WP90767 Whirlpool Screw
73WP302868 Whirlpool Screw
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
81WPL 718592
82WP98165 Whirlpool Screw
84WP488163 Whirlpool Refrigerator Screw
85Acutator Assembly
86Plate
87Diaphrag
89Lever, Release
90Spacer, Panel
91Clip, Wire
92302251 Whirlpool Dishwasher Screw
93Shield, Harness
94Retainer, Clip
