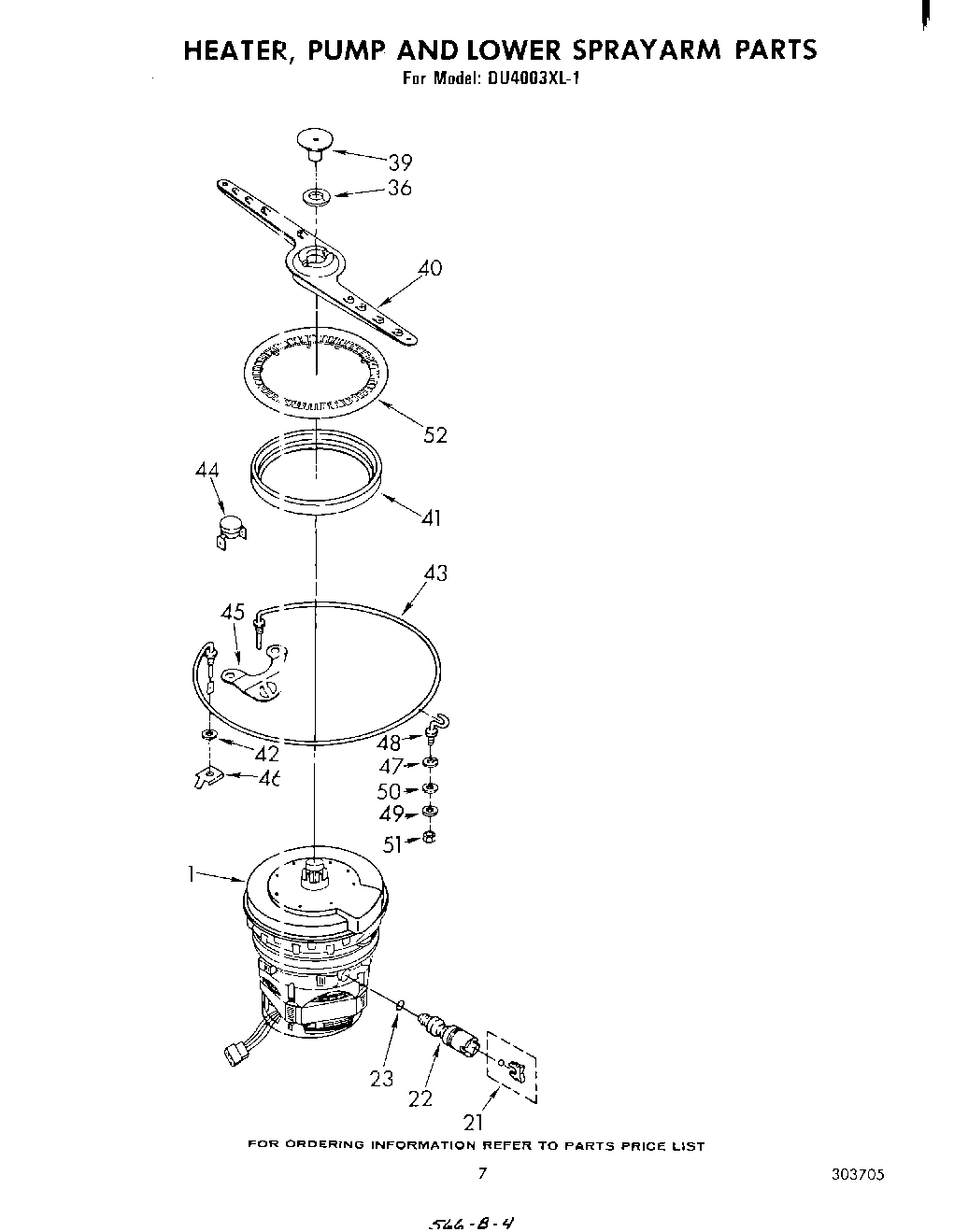

DU4003XL1 05 – HEATER, PUMP AND LOWER SPRAY ARM

Products

Position	Product
1	Pump & Motor Assembly (Includes Illus. 41) For Breakdown Of Pump Parts, refer To Pump And Motor Part
21	Check Ball & Retainer
22	675238 Whirlpool Check Valve
23	``O`` Ring
36	WP719576 Whirlpool Dishwasher Bearing
39	Cap, Nozzle
40	Spray Arm, Lower
41	717000 Whirlpool Dishwasher Gasket
42	WP717273 Whirlpool Dishwasher Rubber Washer
43	Heater (Alternate)
43	Heater (Alternate)
43	Heater (Alternate)
43	Heater (Alternate)
44	Thermostat (Alt.)
45	Bracket
46	Nut, Heater Element
47	Washer, Retainer (2)
48	Support, Heater (2)
49	Washer (2)
50	Washer (2)
51	Nut, Hex
52	Grate
