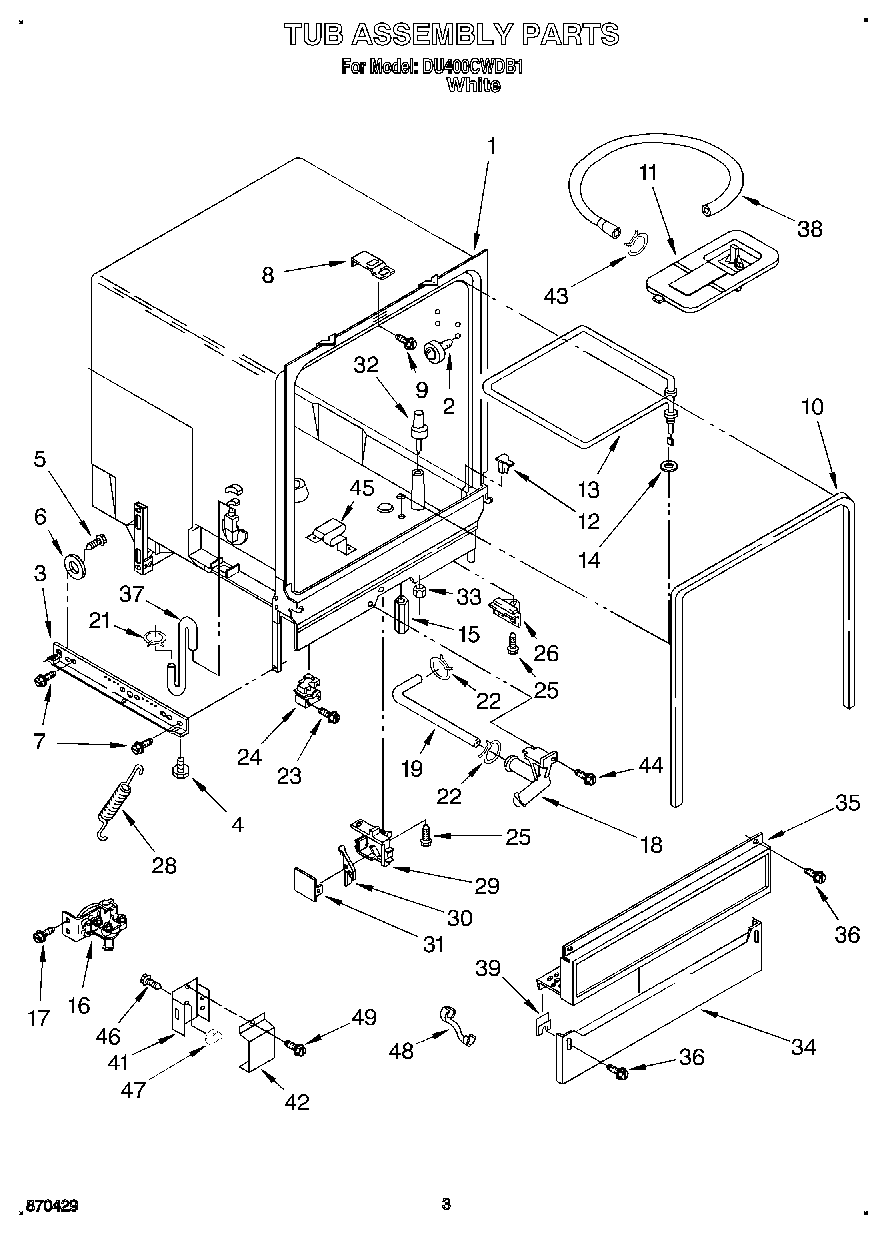

DU400CWDB1 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
21	WP596669 Whirlpool Hose Clamp
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
28	WP3373228 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	Access Panel & Clip Assembly (Includes Item 39)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	Clip, Grounding
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP356138 Whirlpool Hose Clamp
44	W11693756 Whirlpool Screw Assembly
45	Support, Heater
46	WP250830 Whirlpool Refrigerator Screw
47	WP488130 Whirlpool Air Conditioner Nut
48	Relief, Strain
49	Screw
