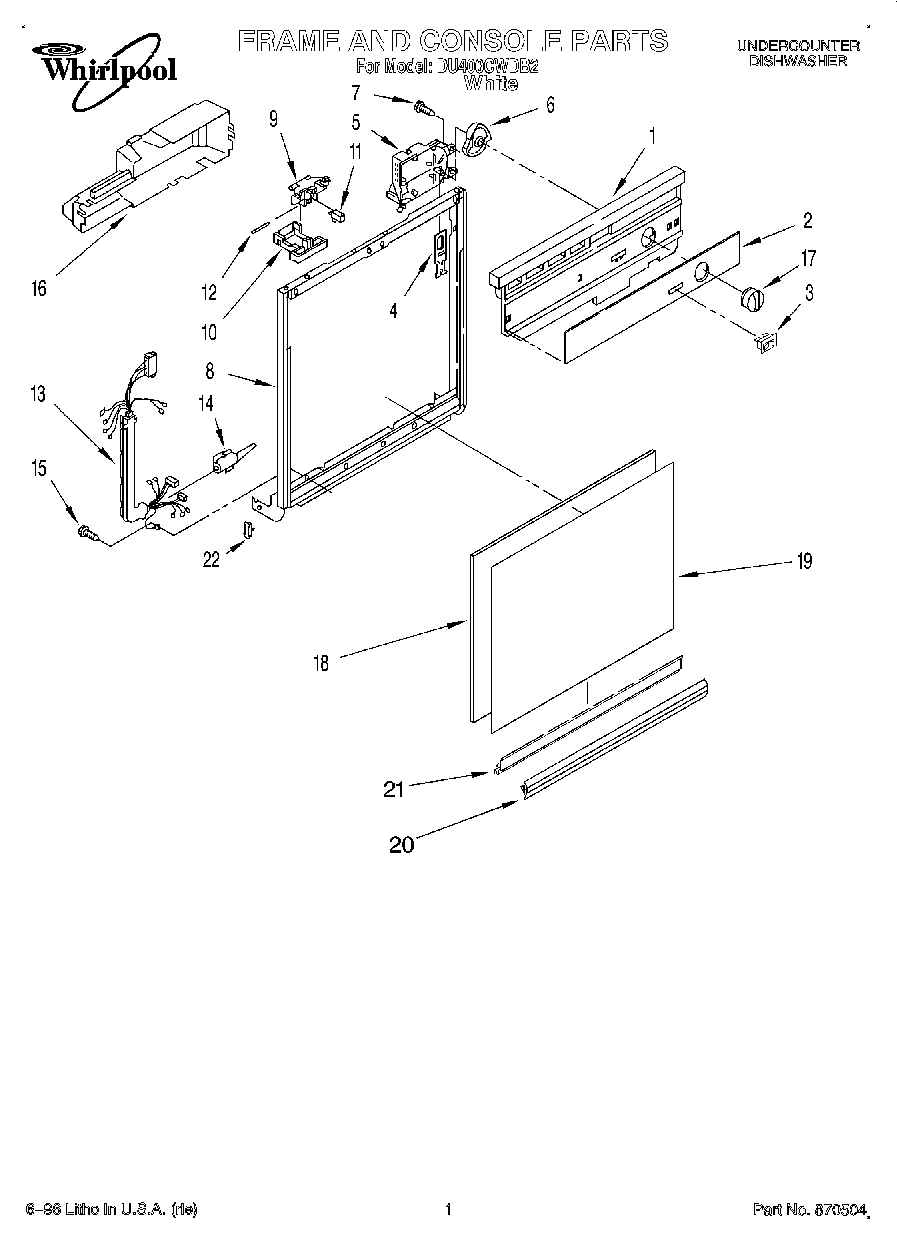

DU400CWDB2 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2)
2Insert, Console
3WP4314961 Whirlpool Lite Switch
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19+Front Panel (White)
20Retainer, Panel
21WP3374716 Whirlpool Dishwasher Channel
22WP3373234 Whirlpool Dishwasher Bearing
