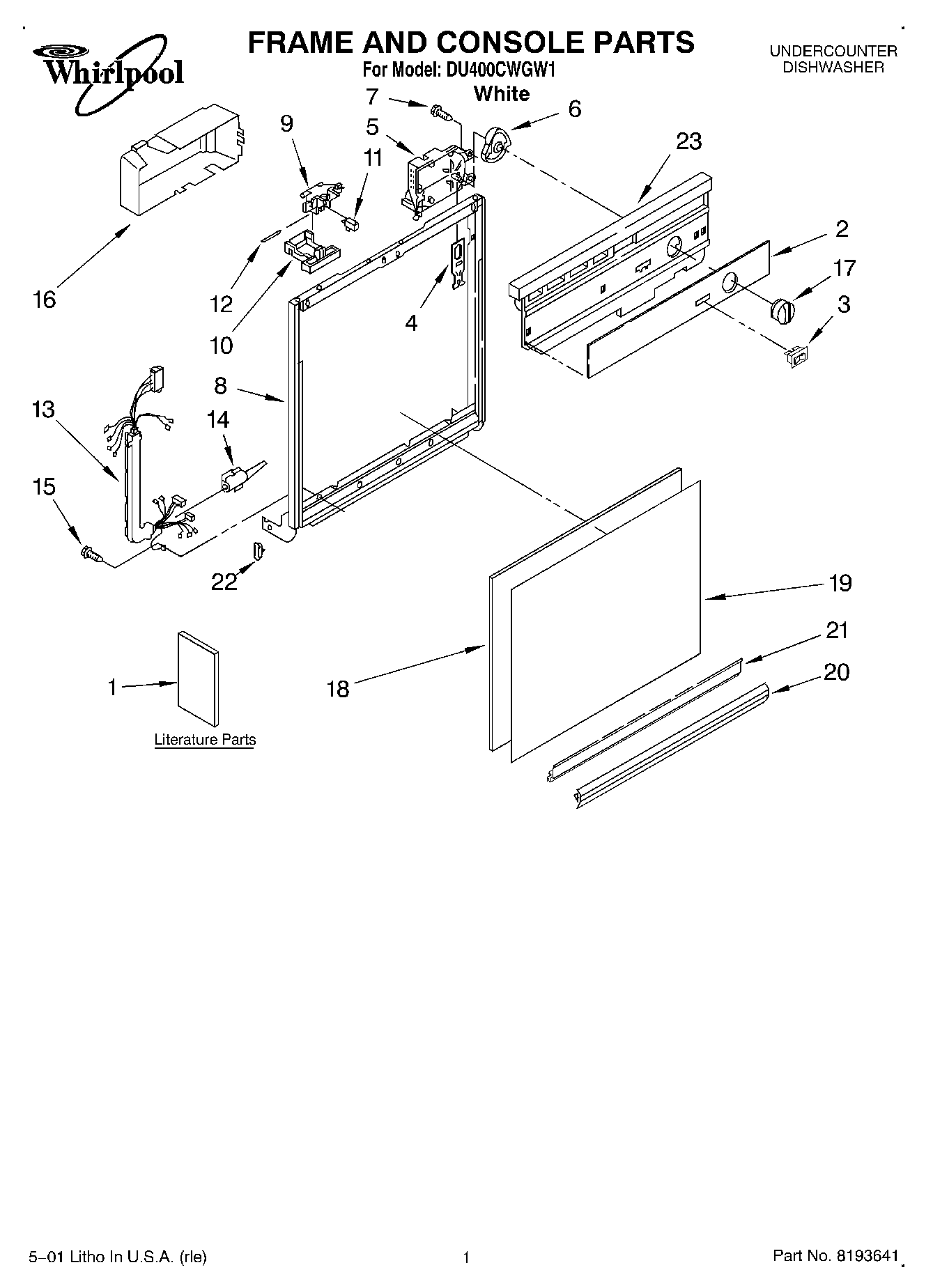

DU400CWGW1 01 – FRAME AND CONSOLE, LITERATURE

DU400CWGW1 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

DU400CWGW1 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Energy)
1Wiring Diagram
1Guide, Use & Care
1Literature Parts (Instructions, Installation)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Do-It Yourself Manual
2Insert, Console
38051729 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19+Front Panel (White)
20Retainer, Panel
21WP3374716 Whirlpool Dishwasher Channel
22WP3373234 Whirlpool Dishwasher Bearing
23Console (Includes Item 2)
