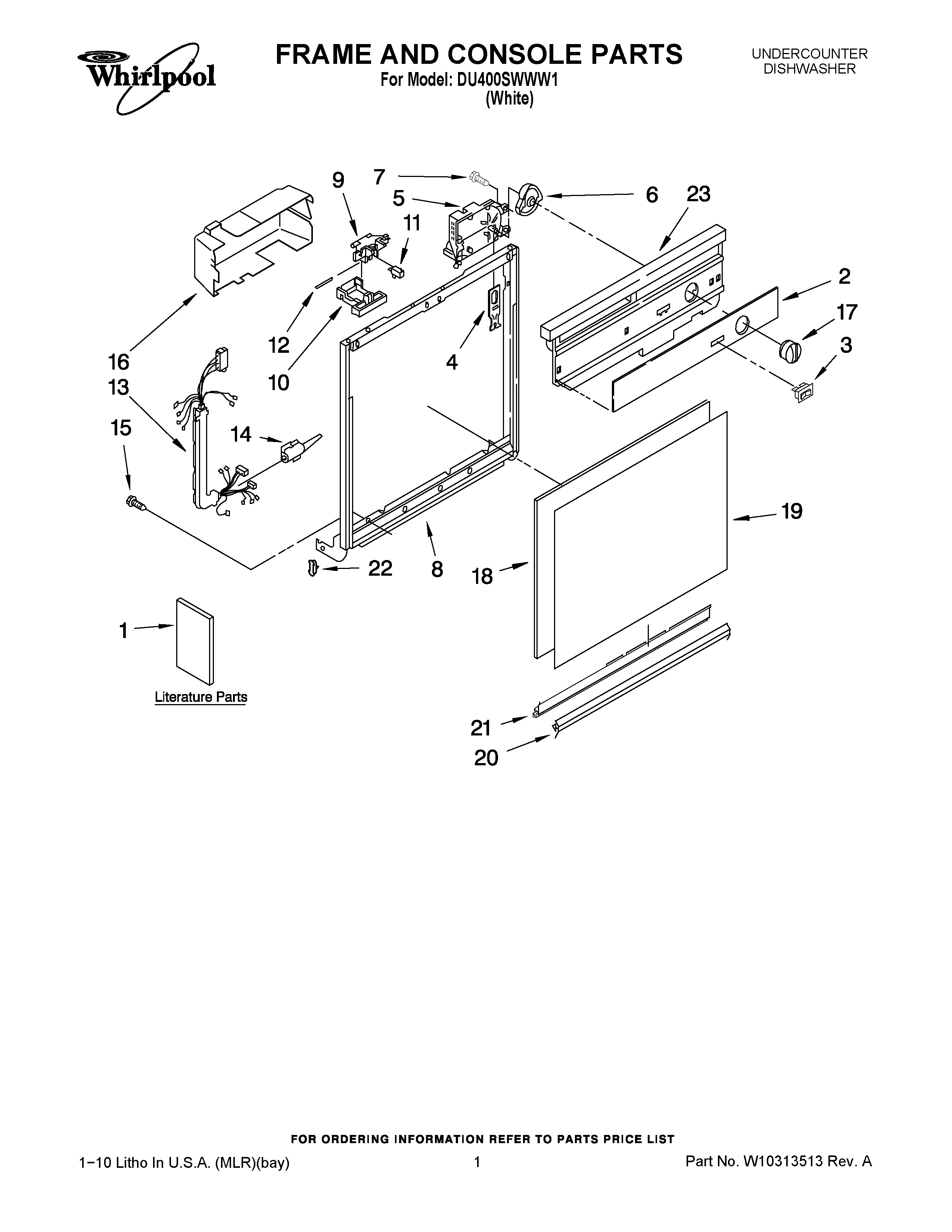

DU400SWWW1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1DIAGRAM, WIRING
1INSERT-INSTALL
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
2INSERT, CONSOLE
38051729 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5WPW10199588 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16COVER TIMER
178275308 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19+Front Panel (White)
20Retainer, Panel
21WP3374716 Whirlpool Dishwasher Channel
22WP3373234 Whirlpool Dishwasher Bearing
23CONSOLE (INCLUDES ITEM 2)
