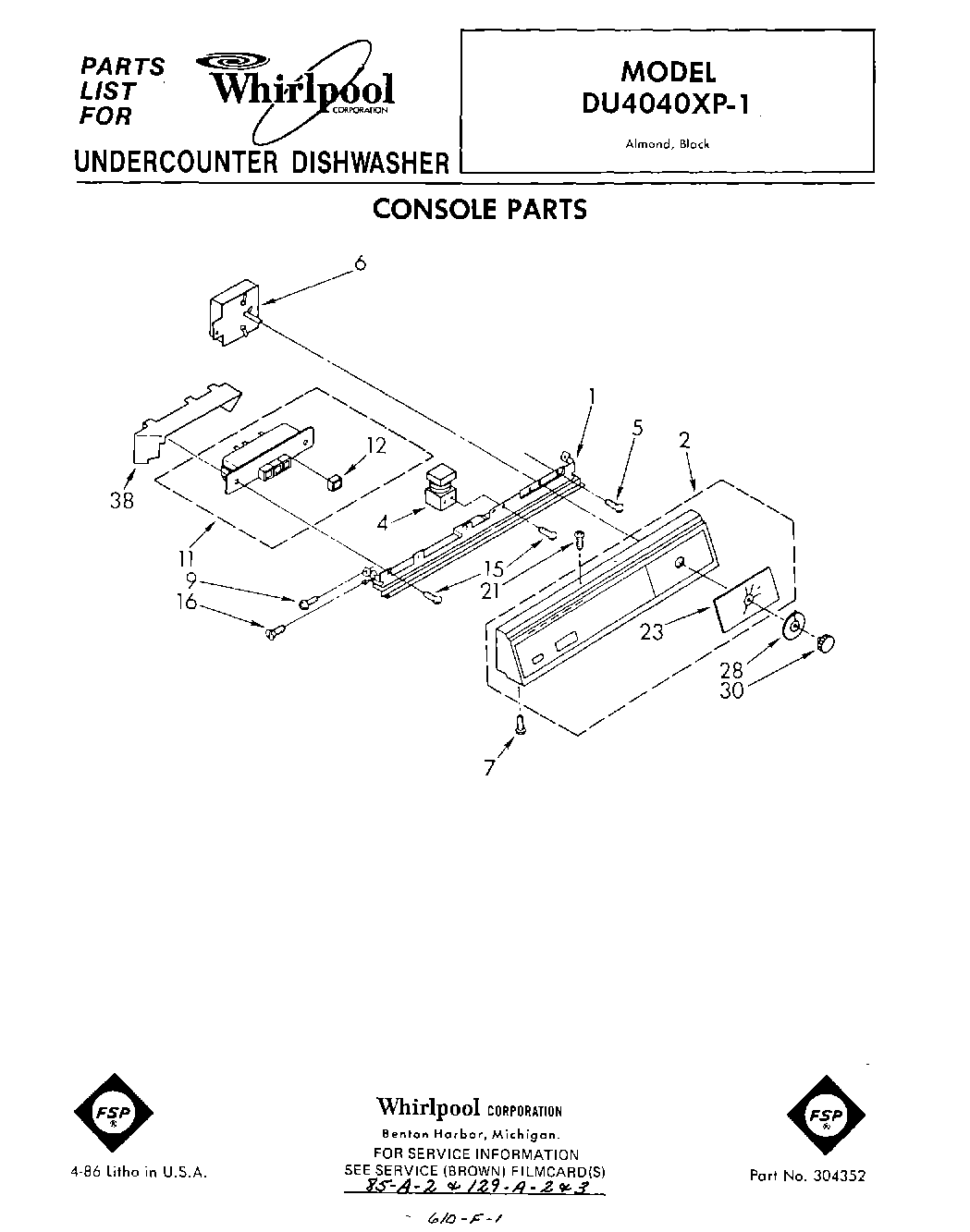

DU4040XP1 01 – CONSOLE

DU4040XP1 01 – CONSOLE

Written by

in

DU4040XP1 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Console Assembly
4Relay, Start (Alternate)
4Relay, Start (Alternate)
4Relay, Start (Alternate)
5WP356418 Whirlpool Screw
6Timer
7WP487353 Whirlpool Refrigerator Screw
9WP302868 Whirlpool Screw
11Switch, Pushbutton
12Button
15WP489128 Whirlpool Refrigerator Screw
16Screw, 8-18 x 5/8
21Screw (4)
23Insert
28Dial, Indicator
30Knob
38Barrier
