DU430-20 01 – DOOR ASSEMBLY
Written by
in

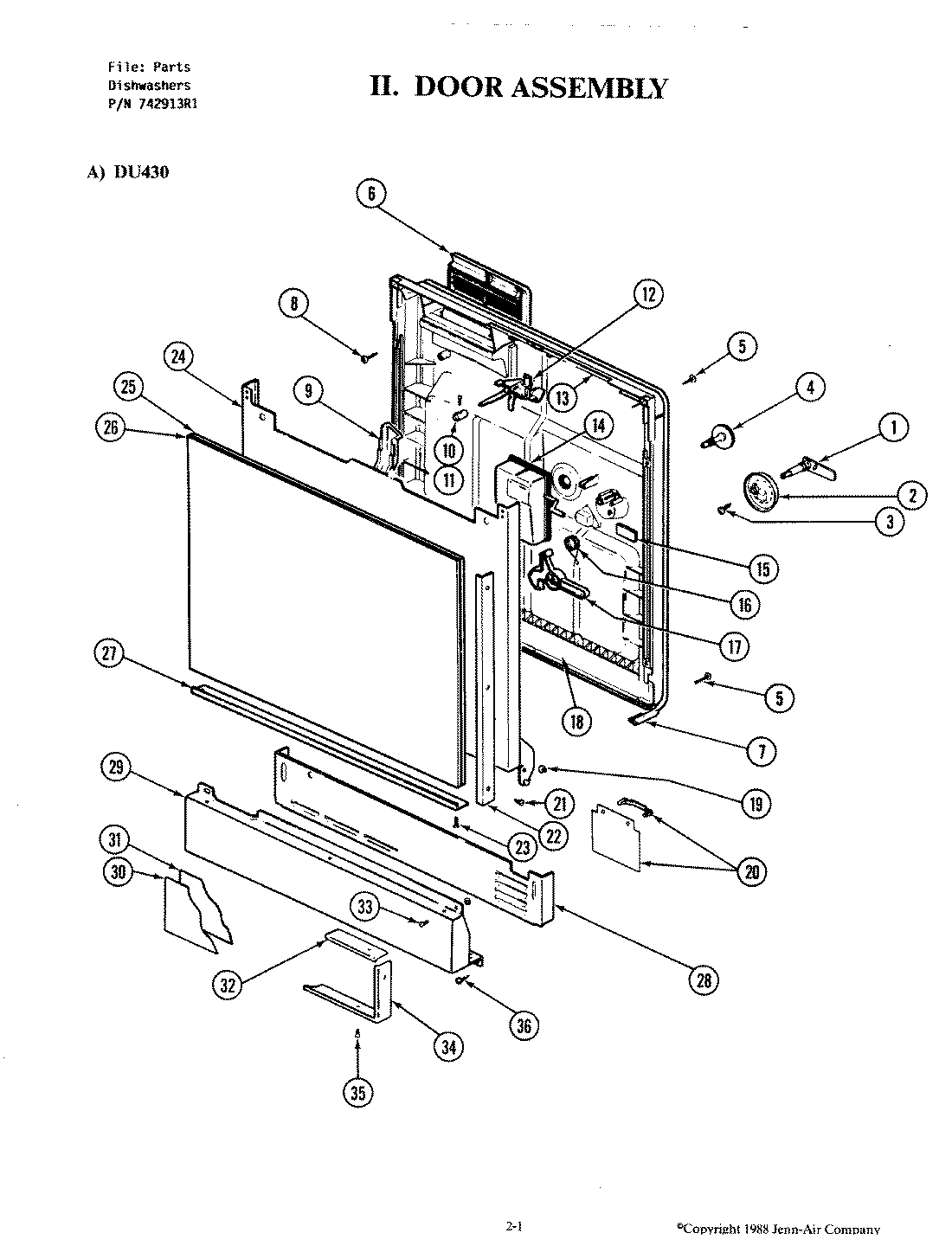

DU430-20 01 – DOOR ASSEMBLY
Products
Position
Product
1
MAY 3020-0007
2
MAY 2275-0005
3
MAY 3005-0074
4
MAY Y03000003
5
MAY 3005-0028
6
MAY 3265-0002
7
MAY 2450-0016
8
MAY 3005-0032
10
MAY Y03000015
11
MAY 3005-0029
12
MAY 2645-0003
14
MAY Y03000002
15
MAY 2307-0001
16
MAY 3070-0005
17
MAY 2645-0004
18
MAY Y03000080
19
MAY 2095-0002
20
MAY 3030-0001
22
MAY 03000034
23
MAY 3005-0014
24
MAY 2800-0002
26
MAY 2580-0011
27
MAY 03000035
28
MAY Y03000037
29
MAY 2800-0022
30
MAY 2580-0037
31
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
32
MAY 03000038
33
MAY 03000051
34
MAY Y03000033
35
MAY 3005-0031
36
MAY 3005-0035
←
