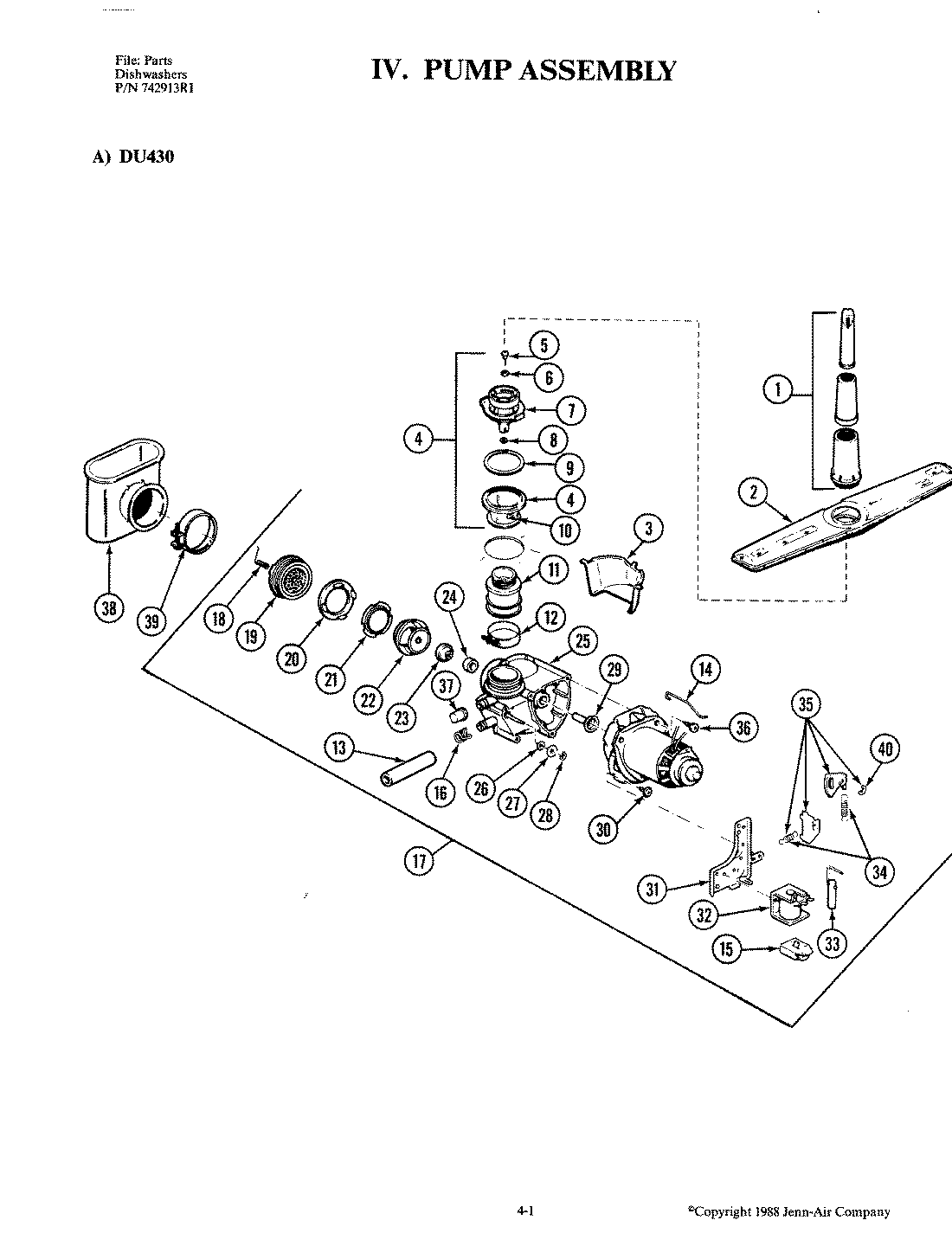

DU430-20 02 – PUMP ASSEMBLY

Products

Position	Product
1	MAY 3175-0002
2	MAY 793055
3	MAY 2485-0001
4	MAY 3130-0012
5	MAY 3005-0004
6	MAY 3280-0002
7	MAY 2540-0002
8	MAY 3280-0003
9	MAY 3010-0005
10	MAY 3255-0001
11	MAY 2260-0007
12	MAY 2235-0007
13	MAY 2530-0009
14	MAY 2510-0002
15	MAY 2590-0001
16	MAY 2235-0004
17	MAY 2720-0001
18	MAY 3070-0001
19	MAY 2465-0002
20	MAY 2085-0001
21	MAY 2945-0001
22	MAY 2560-0003
23	MAY 3010-0004
24	MAY 3010-0003
25	MAY 2535-0001
26	MAY 3010-0002
27	MAY 2735-0041
28	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
29	MAY 3050-0001
30	MAY 3005-0014
31	MAY 2145-0001
32	MAY 2250-0001
33	MAY 2025-0001
34	MAY 3070-0002
35	MAY 2020-0004
36	MAY 3005-0113
37	MAY 2205-0001
38	MAY 2575-0004
39	MAY 2235-0008
40	MAY 2940-0001
