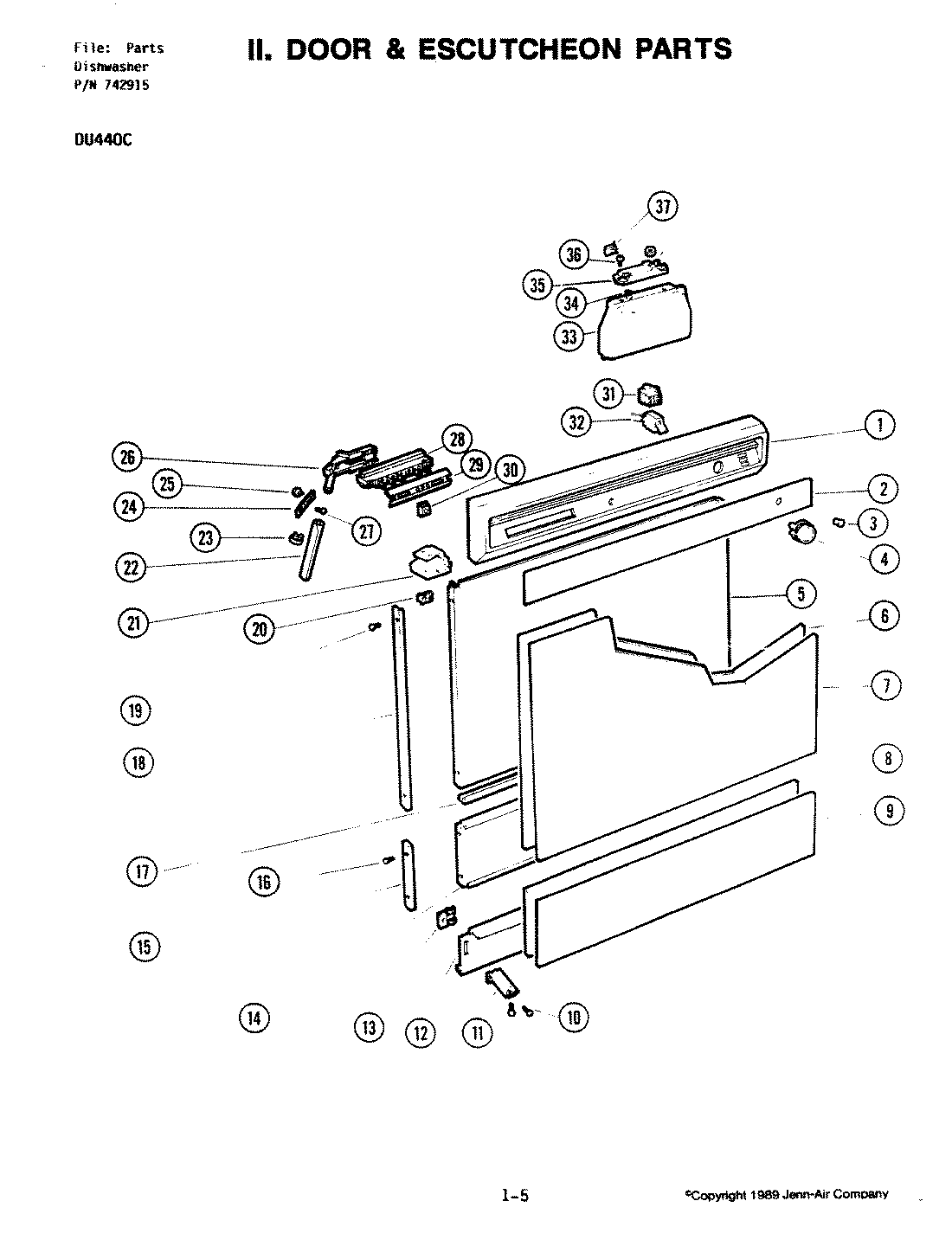

DU440-C 01 – DOOR & ESCUTCHEON

Products

Position	Product
1	MAY WD34M247
2	MAY WD34M348
3	MAY WD2M152
4	MAY WD9M34
5	MAY WD27M234
6	MAY WD27M216
7	MAY WD27M248
8	MAY WD27M249
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 3005-0144
11	MAY 2145-0061
12	MAY WD27M201
13	MAY 2240-0014
14	MAY WD27M155
15	MAY WD34M256
16	MAY WD3M47
17	MAY WD34M349
18	MAY WD34M251
19	MAY WD2M131
20	MAY WD2M156
21	MAY 3135-0004
21	SCREW
22	MAY WD24M8
23	MAY 2235-0004
24	MAY WD3M53
25	MAY 3255-0006
26	MAY 3255-0005
28	MAY 3005-0159
28	MAY WD21M80
29	MAY WD2M118
30	MAY WD9M37
31	MAY WD3M15
32	MAY WD2M145
33	MAY WD3M56
34	MAY WD3M58
35	MAY 2105-0001
36	MAY WD2M155
37	MAY 2240-0013
