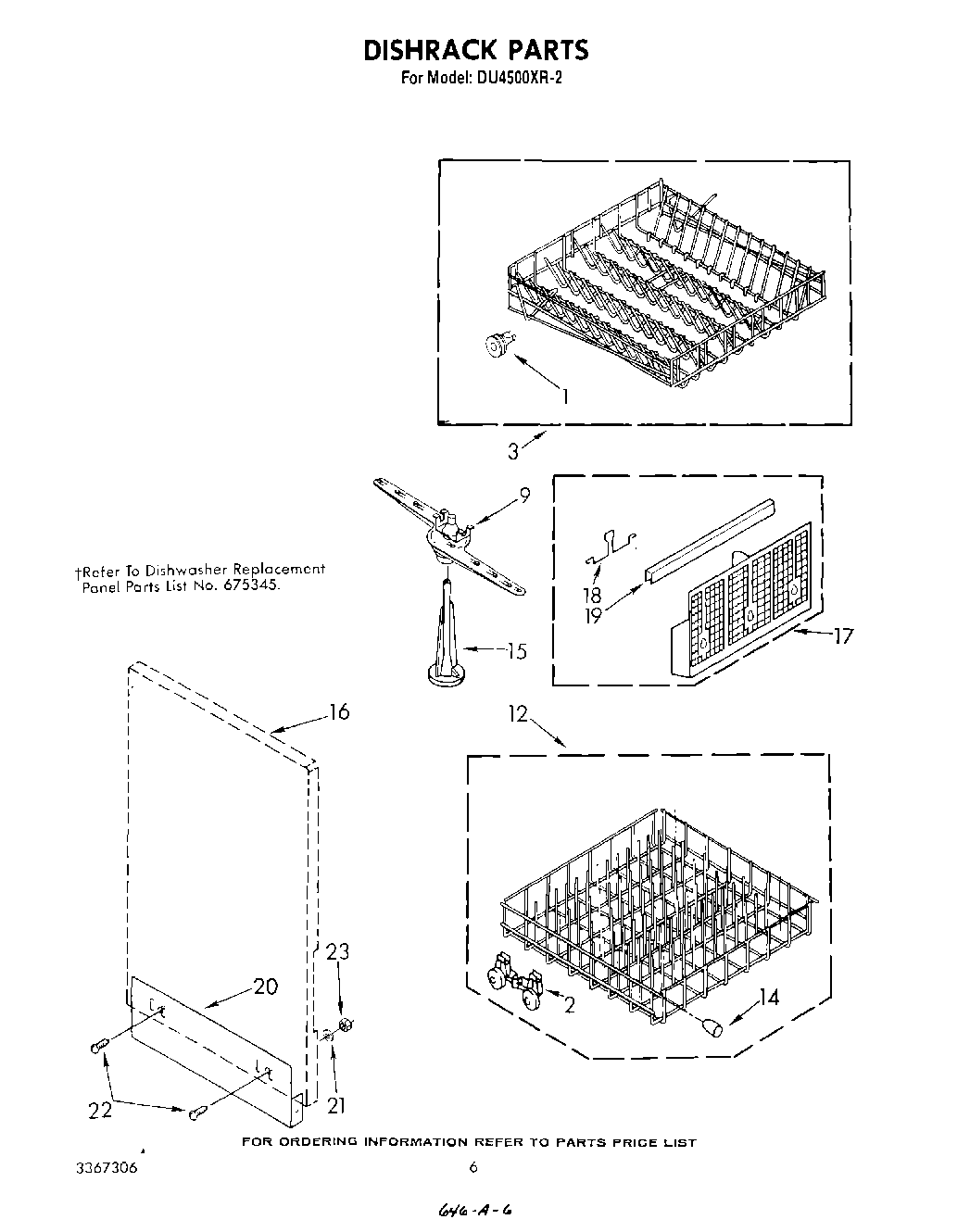

DU4500XR2 04 – DISHRACK

DU4500XR2 04 – DISHRACK

Written by

in

DU4500XR2 04 – DISHRACK

Products

PositionProduct
1Wheel & Axle Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side
17Silverware Basket
18Handle, Basket
19Trim, Basket
20Panel, Lower Side
21W11089212 Whirlpool Washer
22Screw, Lower Side Panel Mounting (2)
23W10080180 Whirlpool Nut
