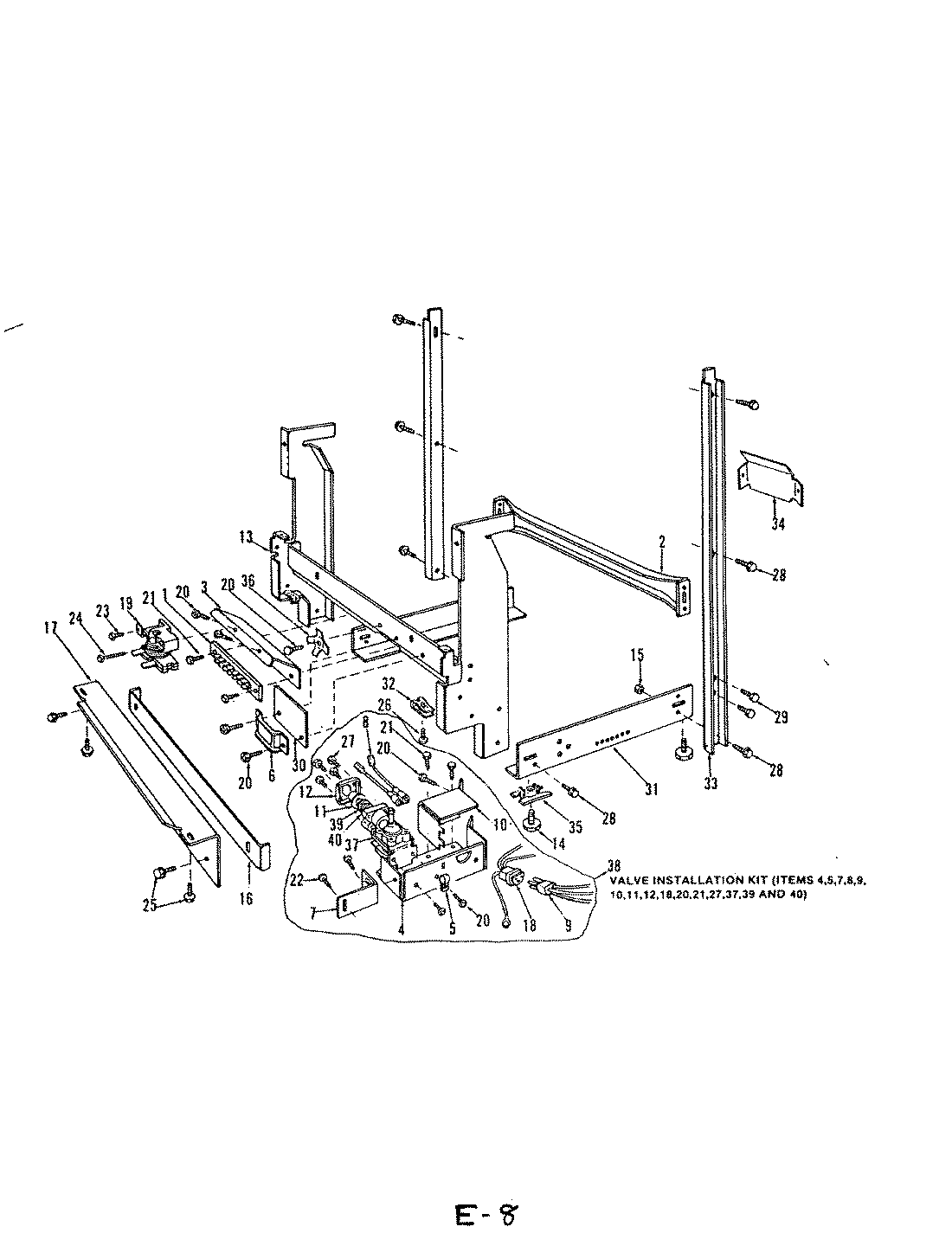

DU45A- 04 – FRAME PARTS
Products
| Position | Product |
|---|---|
| 1 | MAY 807486 |
| 2 | MAY 807852 |
| 3 | MAY 807849 |
| 4 | VALVE BRACKET |
| 6 | CLAMP |
| 7 | BRACKET |
| 10 | TERMINAL COVER |
| 12 | MAY 807614 |
| 13 | MAY 807848 |
| 14 | MAY 807672 |
| 15 | MAY 804619 |
| 16 | TOE PLATE |
| 17 | TOE PLATE |
| 19 | RELAY |
| 20 | SCREW |
| 21 | MAY 807501 |
| 22 | SCREW |
| 23 | MAY 806593 |
| 24 | MAY 804672 |
| 25 | SCREW |
| 26 | MAY 807784 |
| 28 | MAY 806889 |
| 30 | WIRE SHIELD |
| 31 | SIDE CHANNEL |
| 32 | MAY 808170 |
| 33 | CHANNEL |
| 35 | TEENUT |
| 37 | MAY 806900 |
| 39 | MAY 806100 |
| 40 | MAY 807609 |
