DU486-C 01 – DOOR ASSEMBLY
Written by
in

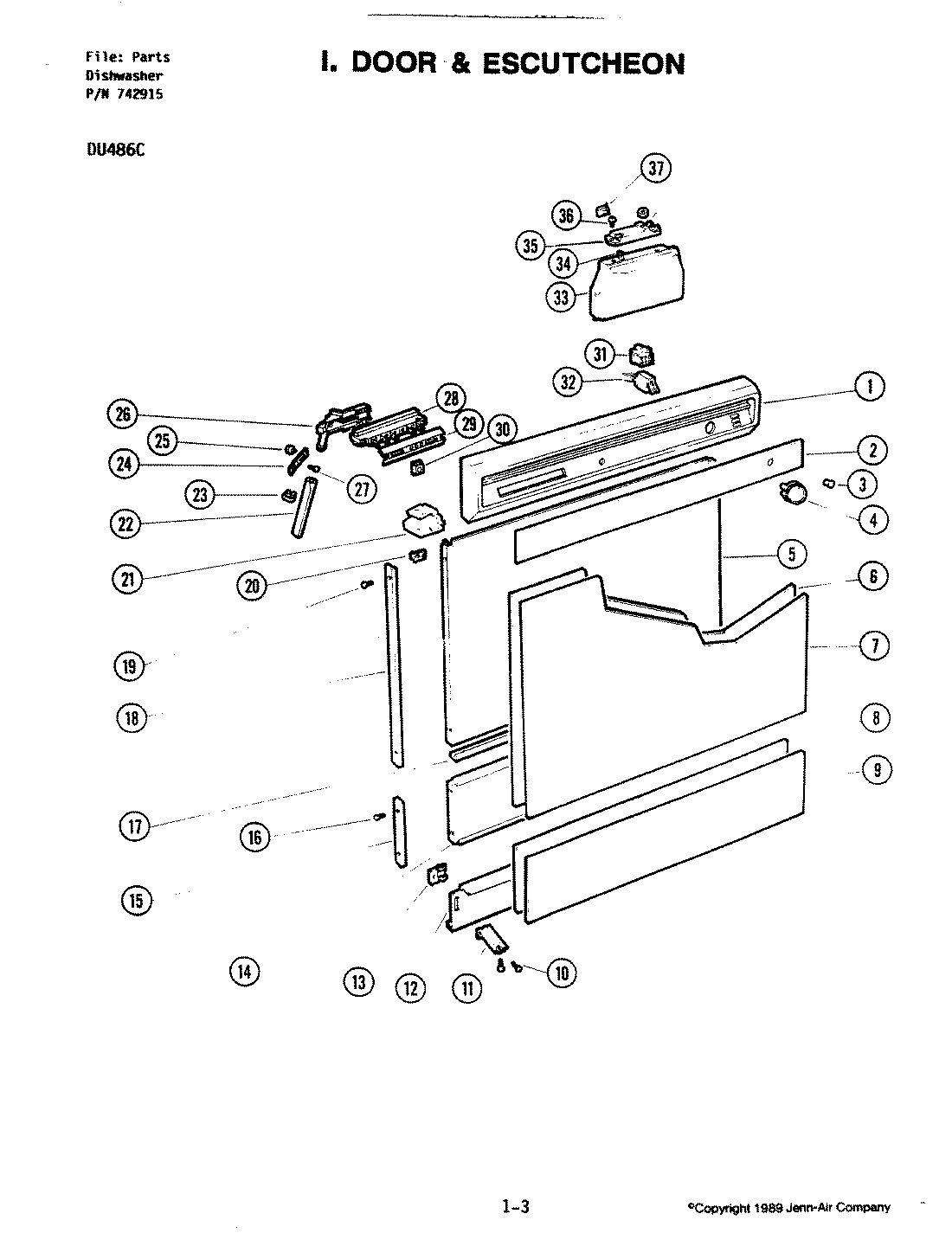

DU486-C 01 – DOOR ASSEMBLY
Products
Position
Product
1
MAY WD34M303
2
MAY WD34M346
3
MAY WD2M152
4
MAY WD9M33
5
MAY WD27M234
6
MAY WD27M216
7
MAY WD27M206
8
MAY WD27M208
9
MAY WD27M217
10
MAY 3005-0144
11
MAY 2145-0061
12
MAY WD27M201
13
MAY 2240-0014
14
MAY WD27M155
15
MAY WD34M256
16
MAY WD3M47
17
MAY WD34M349
18
MAY WD34M251
19
MAY WD2M131
20
MAY WD2M156
21
SCREW
21
MAY 3135-0004
22
MAY WD24M8
23
MAY 2235-0004
24
MAY WD3M53
25
MAY 3255-0006
26
MAY 3255-0005
27
MAY 3005-0159
28
MAY WD21M82
28
MAY 3005-0160
29
MAY WD2M117
30
MAY WD9M36
31
MAY WD3M15
32
MAY WD2M145
33
MAY WD3M56
34
MAY WD3M58
35
MAY 2105-0001
36
MAY 3005-0168
37
MAY 2240-0013
←
