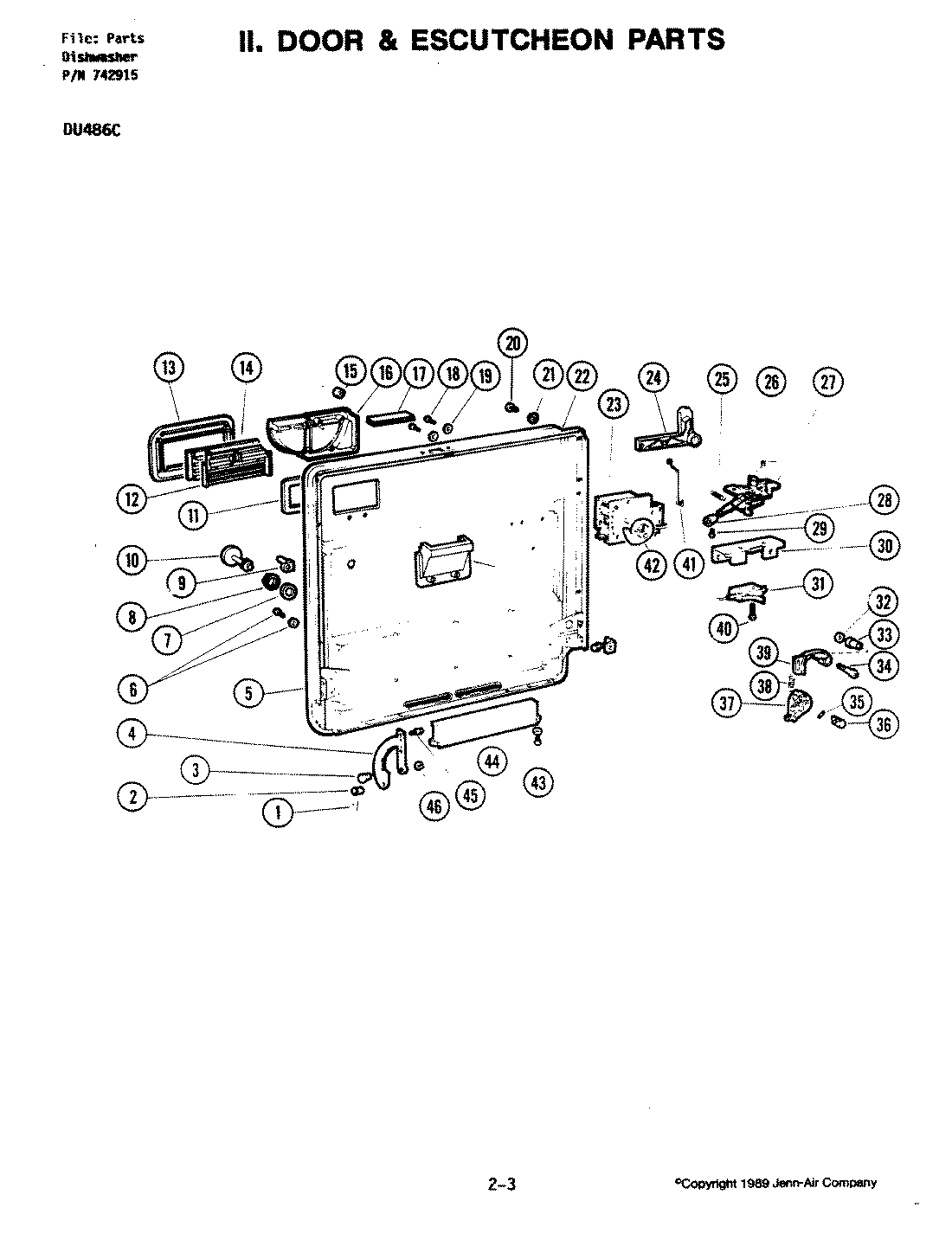

DU486-C 02 – DOOR ASSEMBLY
Written by
in
DU486-C 02 – DOOR ASSEMBLY
Products
Position
Product
1
MAY 3070-0042
2
MAY 2480-0004
3
MAY 2835-0010
4
MAY WD3M59
5
MAY 2240-0003
5
MAY WD8M9
6
MAY WD2M129
7
MAY 2450-0024
8
MAY 2735-0039
9
MAY WD2M65
10
MAY WD12M12
11
MAY WD8M12
12
MAY WD12M48
13
MAY WD12M47
14
MAY WD12M49
15
MAY 3010-0019
16
MAY WD12M36
16
MAY 2750-0001
17
MAY 2775-0009
18
MAY 3005-0166
19
MAY WD3M31
20
MAY 3005-0167
21
MAY 3280-0039
22
MAY WD31M48
23
MAY WD21M77
24
MAY 3070-0045
24
MAY WD16M22
25
MAY 3070-0033
26
MAY 3070-0034
27
MAY 2645-0017
27
MAY 3005-0020
28
MAY WD8M36
29
MAY 3005-0169
30
MAY 2485-0004
31
MAY 3135-0002
32
MAY WD2M124
33
MAY WD12M52
34
MAY WD3M54
35
MAY 2835-0011
36
MAY 2945-0001
37
MAY 2195-0002
38
MAY 3070-0146
39
MAY 2660-0024
40
MAY 3005-0170
41
MAY WD16M24
42
MAY WD16M21
43
MAY WD2M86
43
MAY WD2M83
44
MAY WD12M43
45
MAY 3005-0046
46
MAY 2945-0011
←
