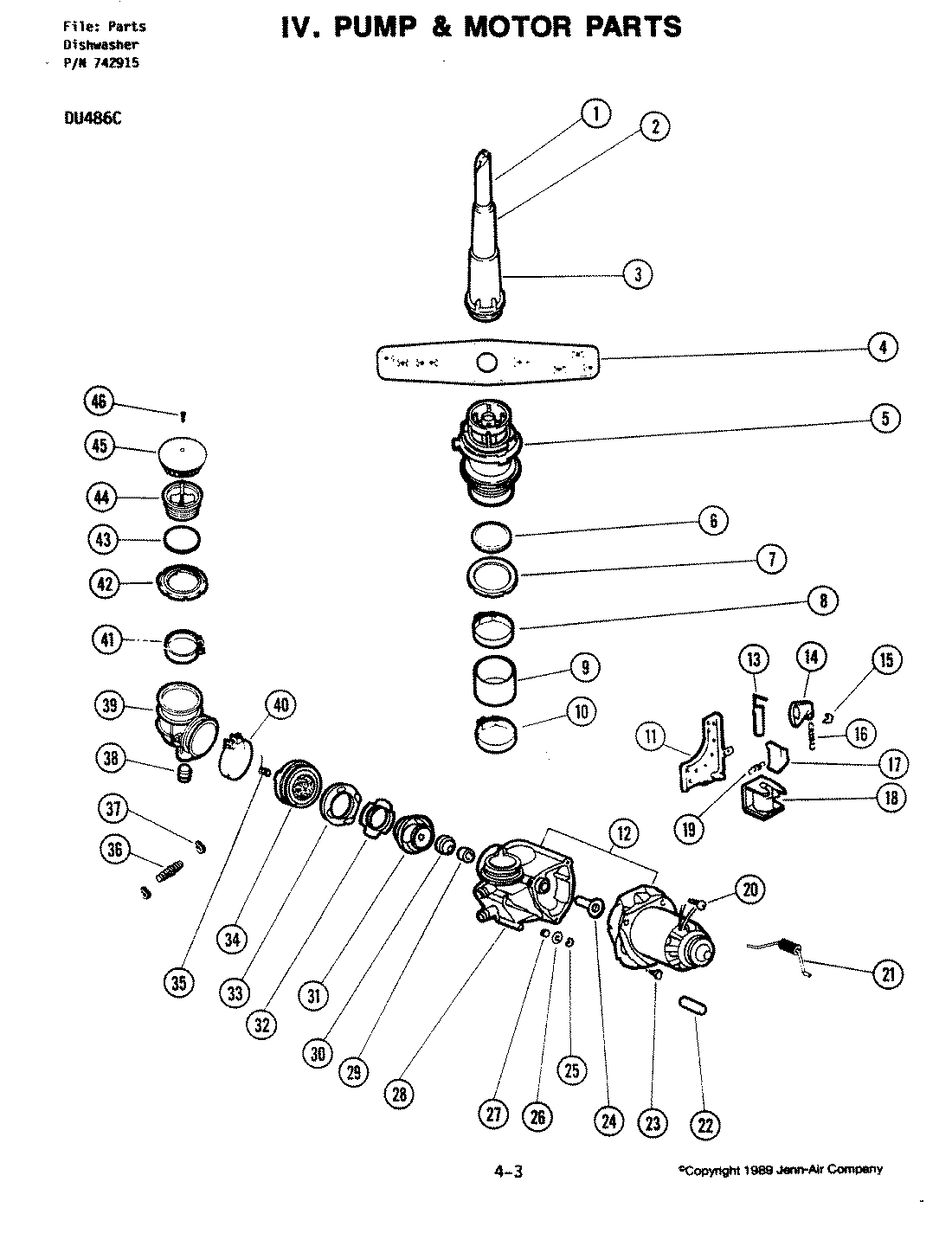

DU486-C 04 – PUMP ASSEMBLY
Written by
in
DU486-C 04 – PUMP ASSEMBLY
Products
Position
Product
1
MAY WD22M18
2
MAY 3235-0009
3
MAY 3170-0002
4
MAY WD22M14
4
MAY WD2M137
5
MAY WD22M16
6
MAY 2450-0001
7
MAY 2735-0002
9
MAY 3235-0001
10
MAY 2235-0002
11
MAY 2145-0001
12
MAY 2720-0001
13
MAY 2025-0001
14
MAY 2020-0001
17
MAY 2020-0004
18
MAY 2250-0001
19
MAY 3070-0002
20
MAY 3005-0002
21
MAY 2510-0004
22
MAY 3040-0008
23
MAY 3005-0074
24
MAY 3050-0001
25
MAY 2940-0001
26
MAY 3280-0001
27
MAY 3010-0002
28
MAY 2535-0001
29
MAY 3010-0003
30
MAY 3010-0004
31
MAY 2560-0003
32
MAY 2945-0001
33
MAY 2085-0001
34
MAY 2465-0002
35
MAY 3070-0001
36
MAY 2260-0005
37
MAY 2235-0004
38
MAY 2850-0001
39
MAY 2260-0012
41
MAY 2235-0001
42
MAY 2735-0003
43
MAY 2450-0002
44
MAY 2575-0001
45
MAY 2275-0001
46
MAY 3005-0156
←
