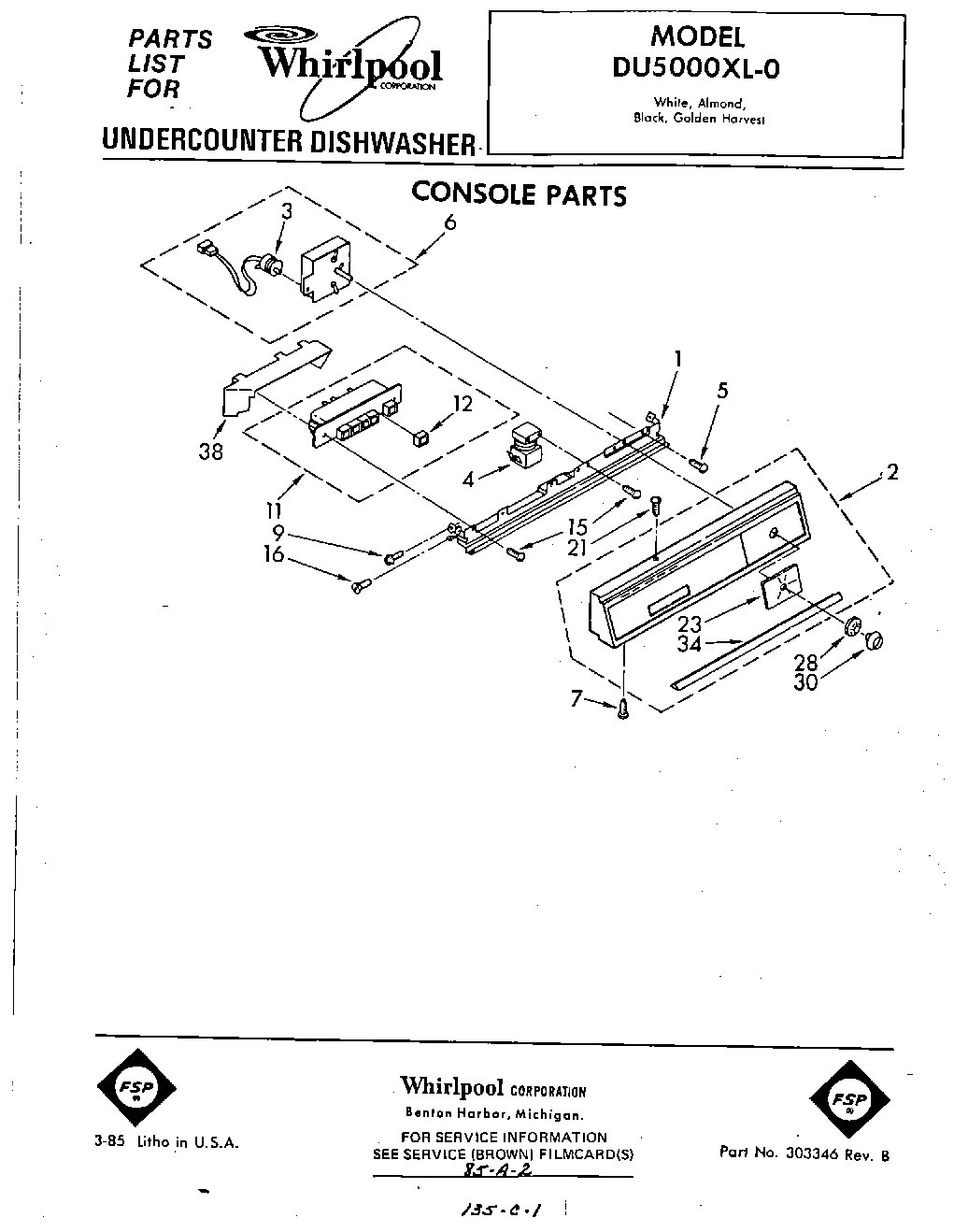

DU5000XL0 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Console Assembly
3	Motor, Timer
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
4	Relay, Start (Alternate)
5	WP356418 Whirlpool Screw
6	Timer
7	WP487353 Whirlpool Refrigerator Screw
9	WP302868 Whirlpool Screw
11	Switch, Push Button
12	Button
15	WP489128 Whirlpool Refrigerator Screw
16	Screw, 8-18 x 5/8
21	W10759522 Whirlpool Screw
23	Insert
28	Dial, Indicator
30	Knob
34	Support-Flue Deflector
38	Barrier
