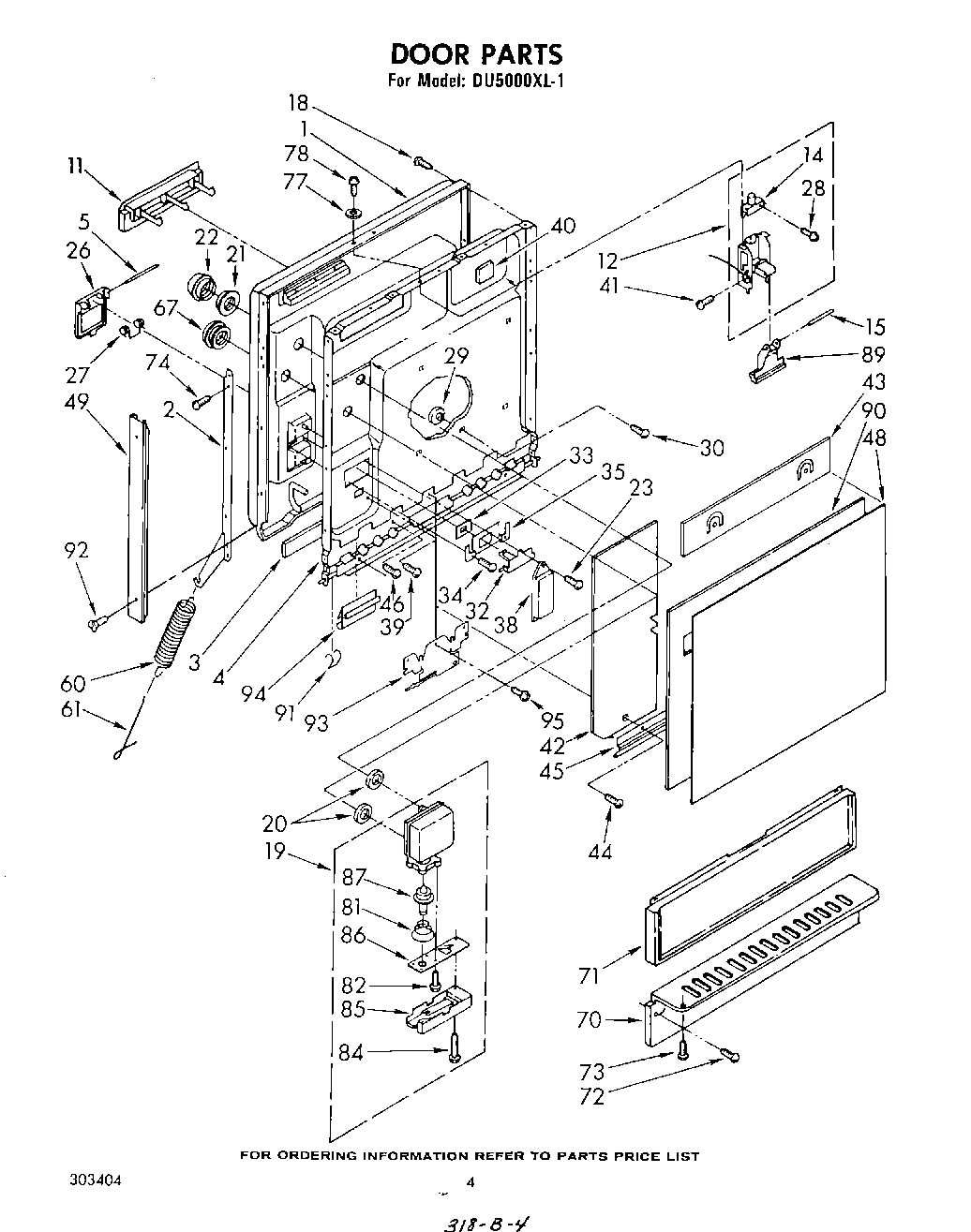

DU5000XL1 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Liner, Door
5	4387043 Whirlpool Door Latch Kit
11	Screen, Vent
12	Latch Assembly
14	Switch, Interlock (Alternate)
14	Switch, Interlock (Alternate)
15	Pin, Pivot
18	WP488729 Whirlpool Refrigerator Door Screw
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 6-32 x 1
29	Button, Retainer (3)
30	Screw, 8-18 x 3/8 (3)
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
39	Screw, 8 x 1/2 (3)
40	Spacer, Timer
42	Barrier, Door
43	Barrier, Console
44	W11693756 Whirlpool Screw Assembly
45	Edging, Panel
48	xxPanel, Front
49	Trim, Door (2)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
67	Cap, Drip
70	Plate, Toe
71	WP3367793 Whirlpool Black Access Panel
72	WP90767 Whirlpool Screw
73	WP302868 Whirlpool Screw
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
81	WPL 718592
82	WP98165 Whirlpool Screw
84	WP488163 Whirlpool Refrigerator Screw
85	Acutator Assembly
86	Plate
87	Diaphrag
89	Lever, Release
90	Spacer, Panel
91	Clip, Wire
92	302251 Whirlpool Dishwasher Screw
93	Shield, Harness
94	Retainer, Clip
