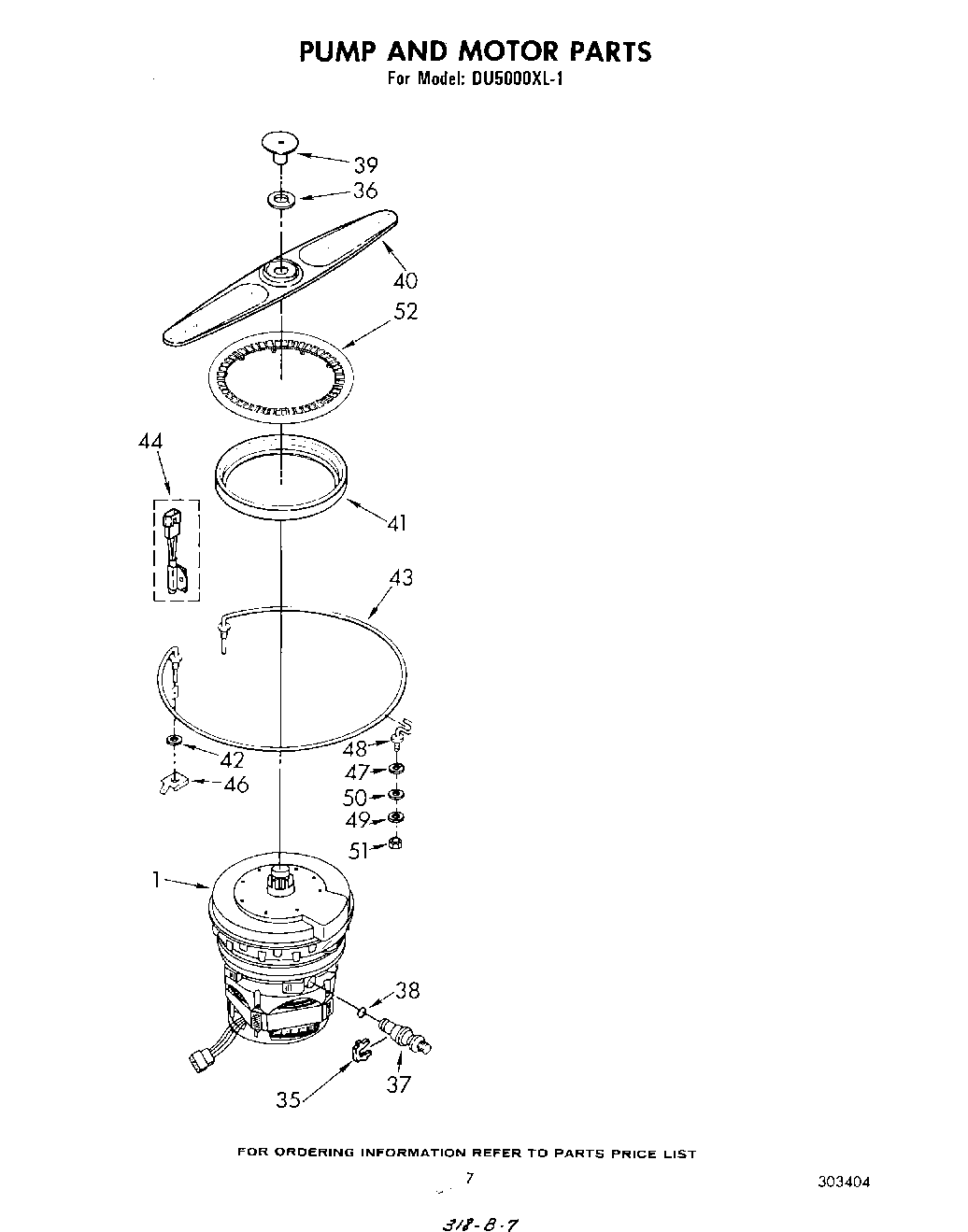

DU5000XL1 05 – PUMP AND MOTOR

Products

Position	Product
1	Pump & Motor Assembly
35	Retainer, Check Valve
36	WP719576 Whirlpool Dishwasher Bearing
37	675238 Whirlpool Check Valve
38	``O`` Ring
39	Cap, Nozzle
40	Spray Arm, Lower
41	717000 Whirlpool Dishwasher Gasket
42	WP717273 Whirlpool Dishwasher Rubber Washer
43	Heater (Alternate)
43	Heater (Alternate)
43	Heater (Alternate)
43	Heater (Alternate)
44	Thermostat
46	Nut, Heater Element
47	Washer, Retainer (2)
48	Support, Heater (2)
49	Washer (2)
50	Washer (2)
51	Nut, Hex
52	Grate
