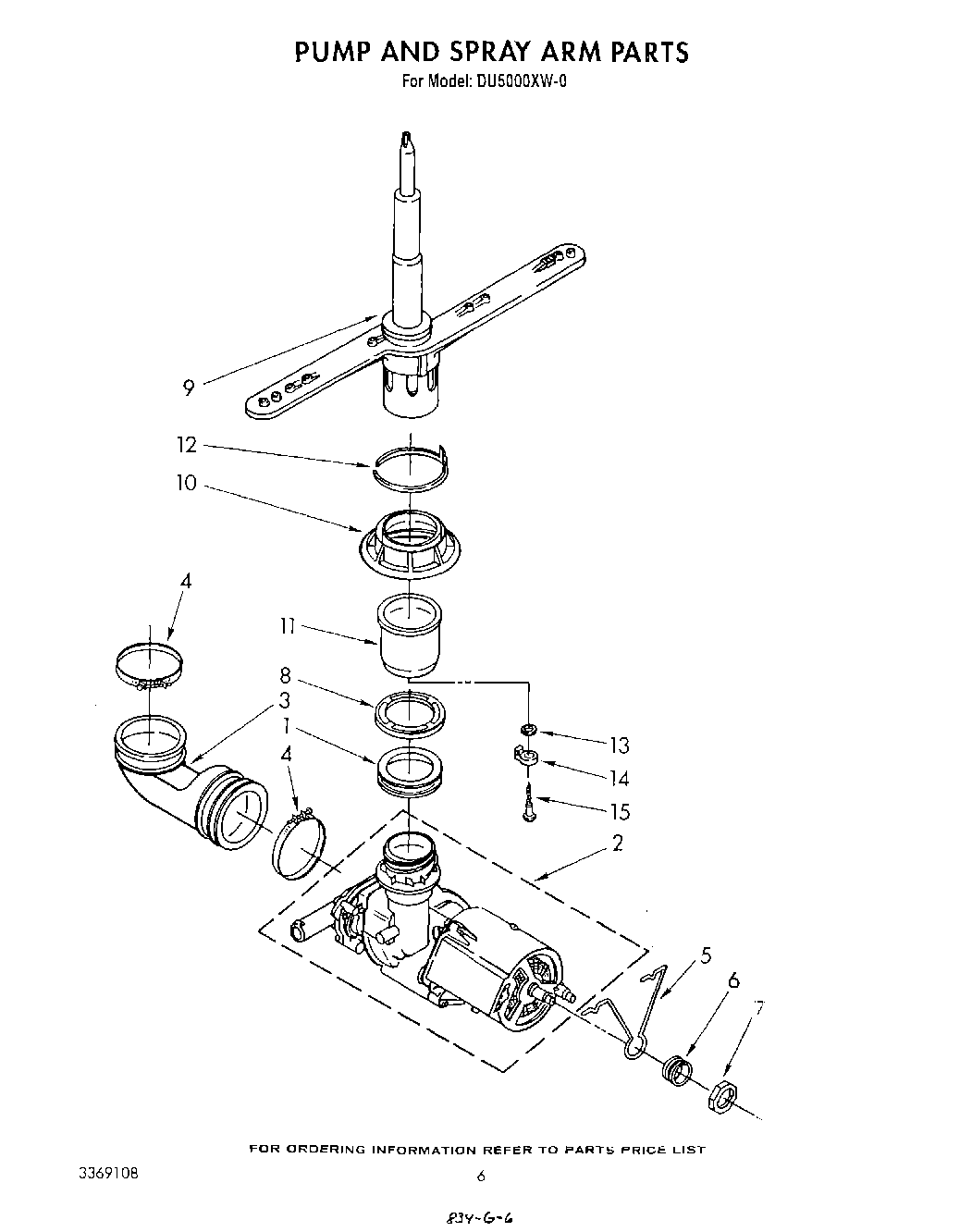

DU5000XW0 05 – PUMP AND SPRAY ARM

Products

Position	Product
1	Grommet, Pump Seal
2	PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3	W11189178 Whirlpool Dishwasher Hose
4	Clamp (2)
5	Support, Motor
6	Grommet, Motor Support
7	Nut, Motor Support
8	Washer, Grommet
9	Spray Arm, Assembly Lower
10	Nut, Pump Outlet
11	WP3371745 Whirlpool Dishwasher Support
12	WP3369045 Whirlpool Dishwasher Seal
13	Washer
14	3371746 Whirlpool Dishwasher Bearing
15	Shoulder Screw
