DU5000XW0 08 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Products

PositionProduct
350956 Whirlpool Spray Assembly
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Instructions, Installation
Guide, Use & Care
Energy Guide
Template
Wiring Diagram
Instructions, Installation (Supplement) (Locating Your Water Supply)
285006 Whirlpool Spray
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
Enamel, Black (1 Qt. Uncut)
List, Parts
Instructions, Installation (Utility)

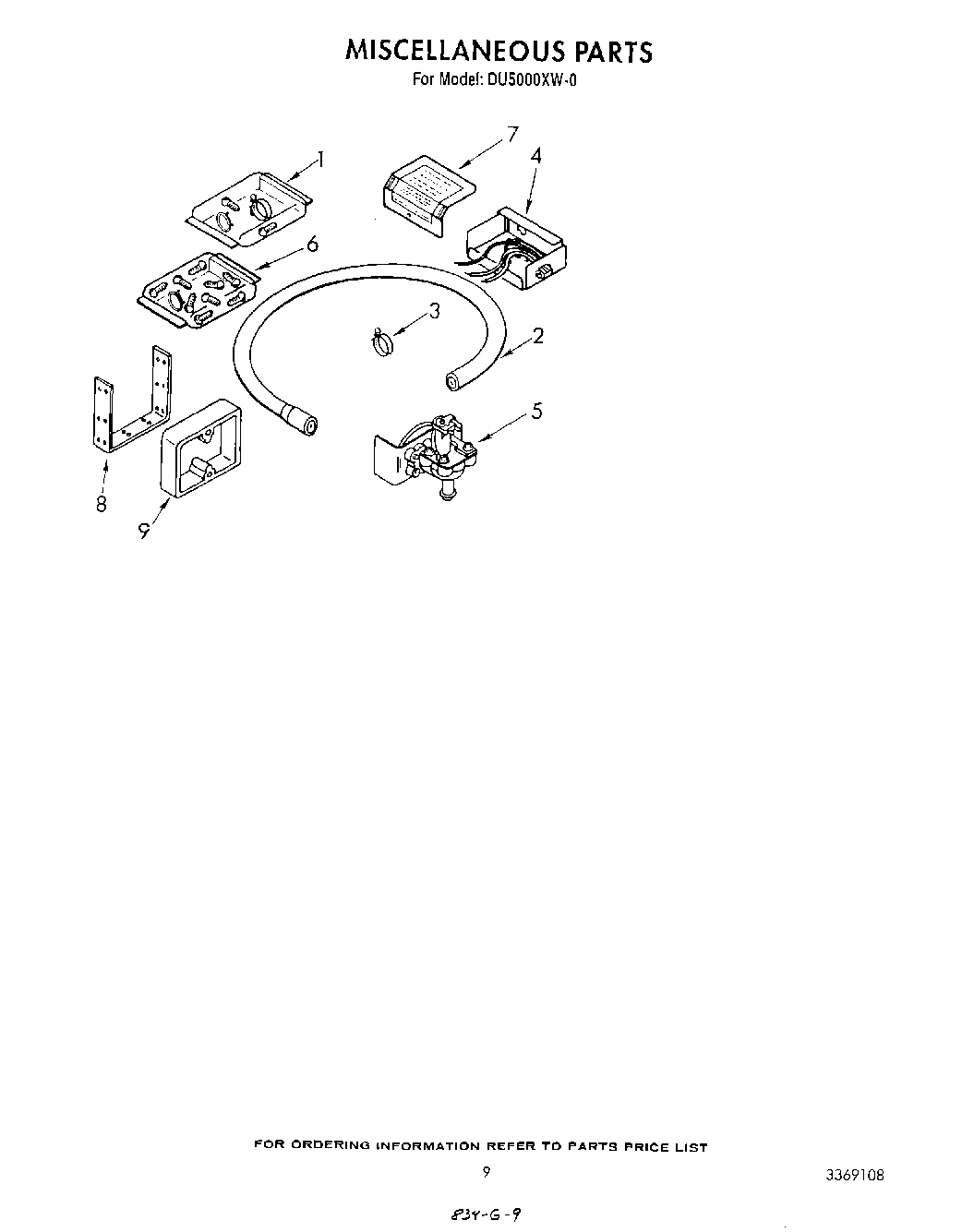

1Miscellaneous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
2675544 Whirlpool Drain Hose
3WP356138 Whirlpool Hose Clamp
4Terminal Block & Plug Assembly
5Water Valve
6Bag Assembly (Loose Parts) (Includes 1 Clamp & 12 Screws)
7Cover Assembly, Terminal Box
8Bracket, Utility
9Mount, Terminal Box
