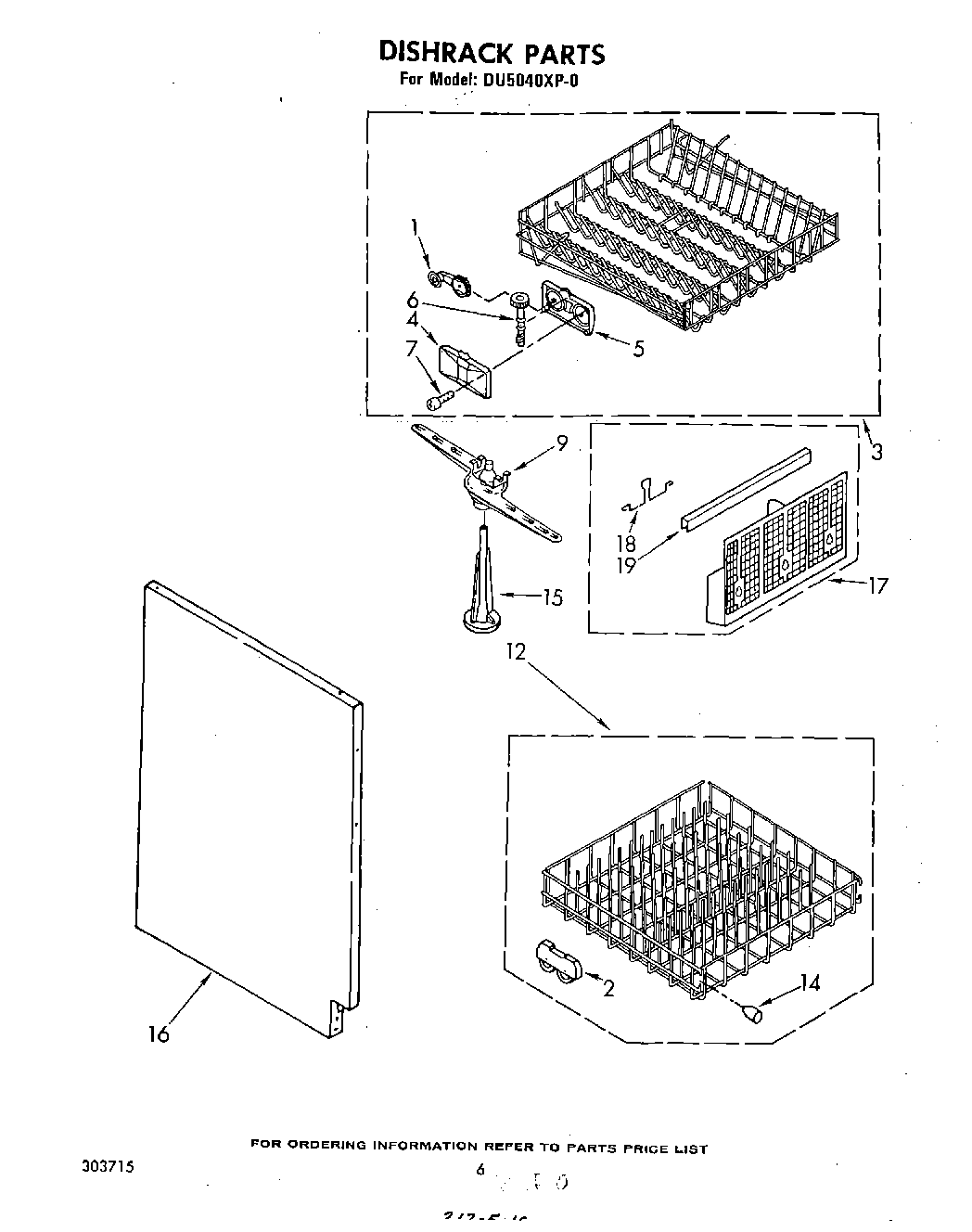

| Panel, L.S. |
| 1 | Wheel & Gear Assembly (4) |
| 2 | 4317933 Whirlpool Lower Rack Wheels |
| 3 | W11169039 Whirlpool Dishwasher Dish Rack |
| 4 | Cover, Housing (2) |
| 5 | Housing, Gear (2) |
| 6 | Worm, Dishrack (2) |
| 7 | WP9741232 Whirlpool Dishwasher Screw |
| 9 | WP304204 Whirlpool Dishwasher Spray Arm |
| 12 | W10311986 Whirlpool Dishwasher Lower Rack |
| 14 | Bumper (2) |
| 15 | Tower |
| 16 | Panel, R.S. |
| 17 | Silverware Basket Assembly |
| 18 | Handle, Basket |
| 19 | Trim, Basket |
