DU5040XP1 02 – TUB , LITERATURE AND OPTIONAL

DU5040XP1 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

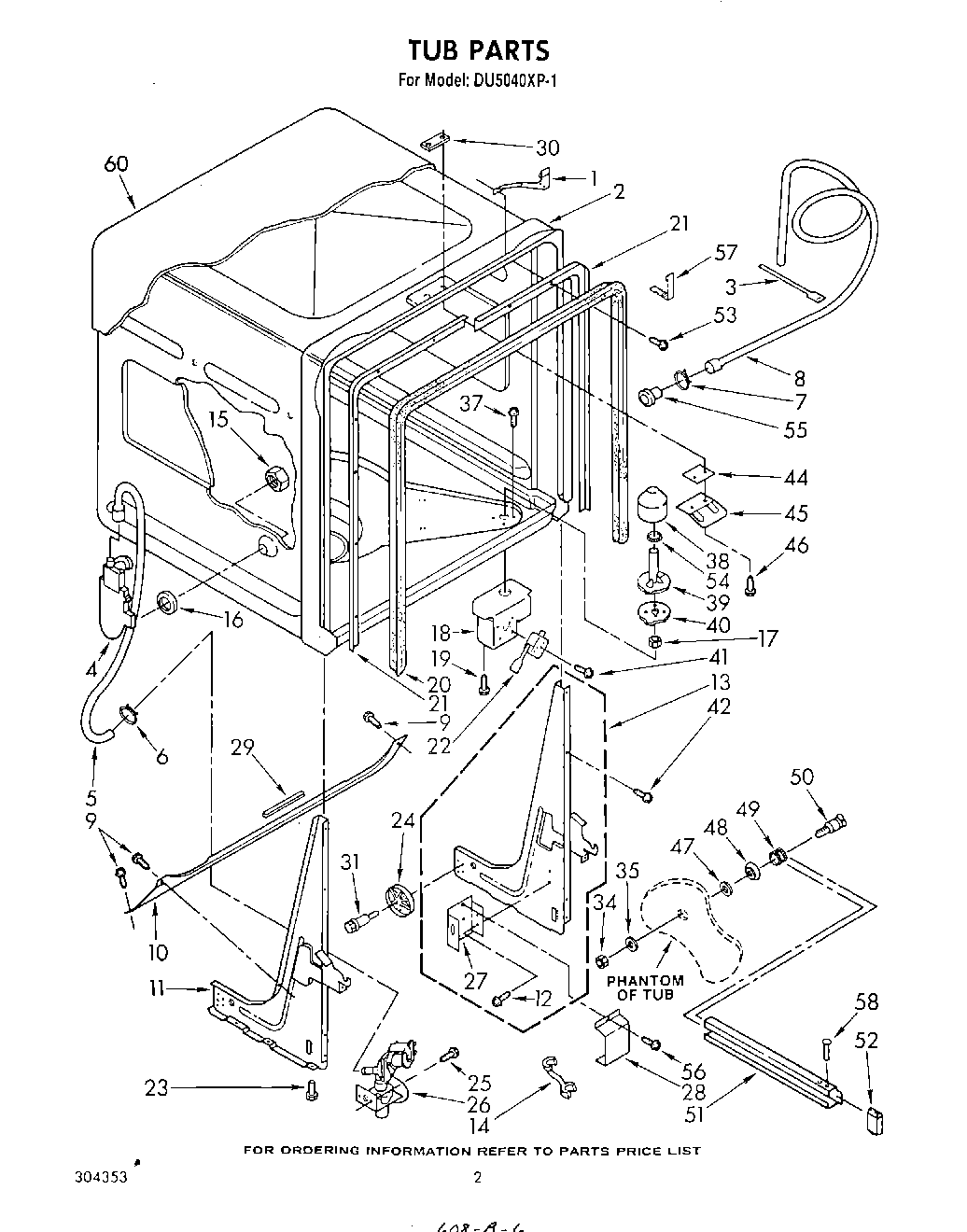

DU5040XP1 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL LIT304110
	WPL LIT303311
	285006 Whirlpool Spray
	WPL LIT304353
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Kit, Epoxy Patch (White)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
	WPL LIT304132
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	350956 Whirlpool Spray Assembly
	Golden Harvest
1	Bracket, Mounting (2)
2	Tub Assembly
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
29	Edge Protector
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	Clip, Gasket (2)
58	WPL 303298
60	W11086533 Whirlpool Dishwasher Shield
