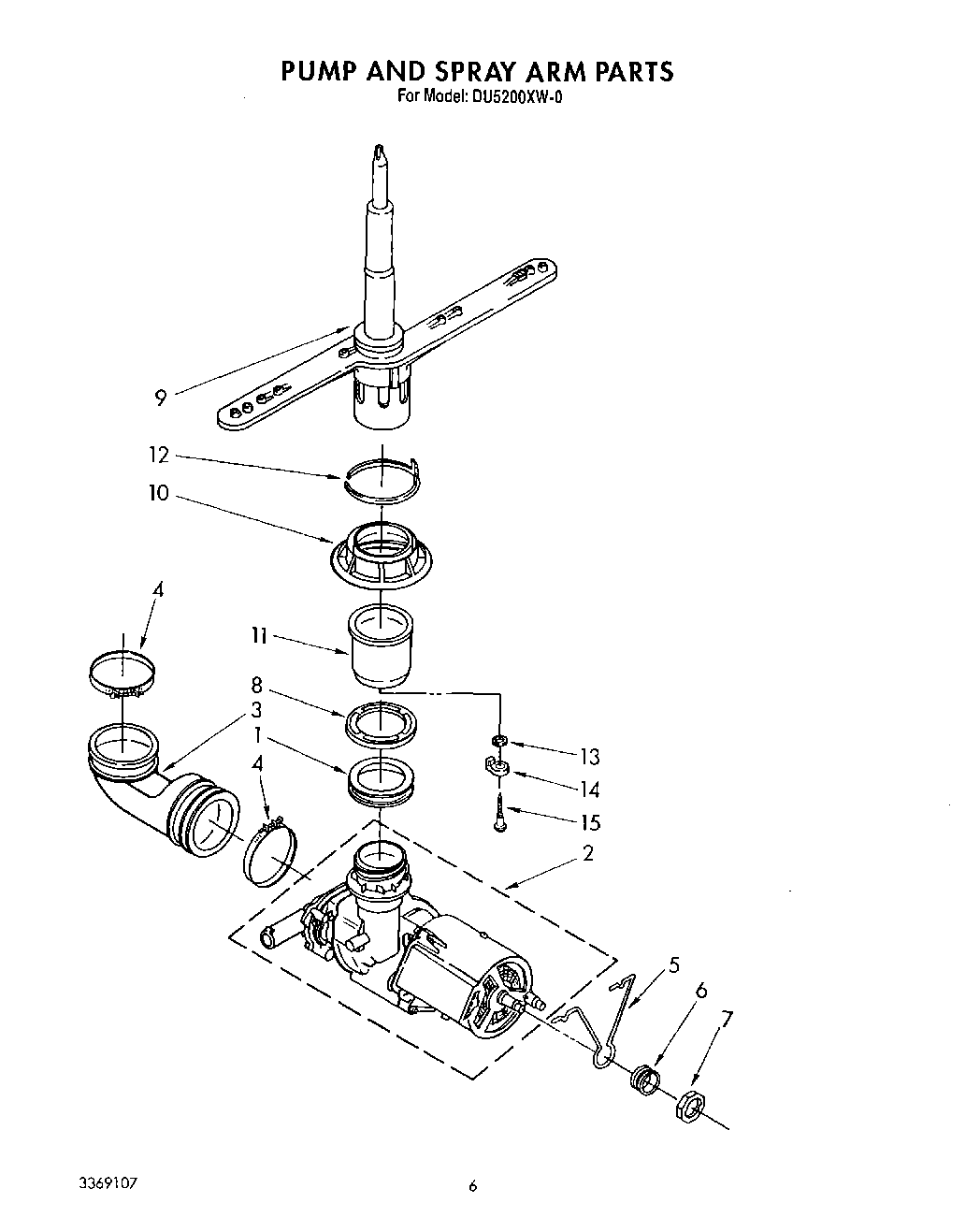

DU5200XW0 04 – PUMP AND SPRAY ARM

Products

PositionProduct
1Grommet, Pump Seal
2PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3W11189178 Whirlpool Dishwasher Hose
4Clamp (2)
5Support, Motor
6Grommet, Motor Support
7Nut, Motor Support
8Washer, Grommet
9Spray Arm, Assembly Lower
10Nut, Pump Outlet
11WP3371745 Whirlpool Dishwasher Support
12WP3369045 Whirlpool Dishwasher Seal
13Washer
143371746 Whirlpool Dishwasher Bearing
15Shoulder Screw
