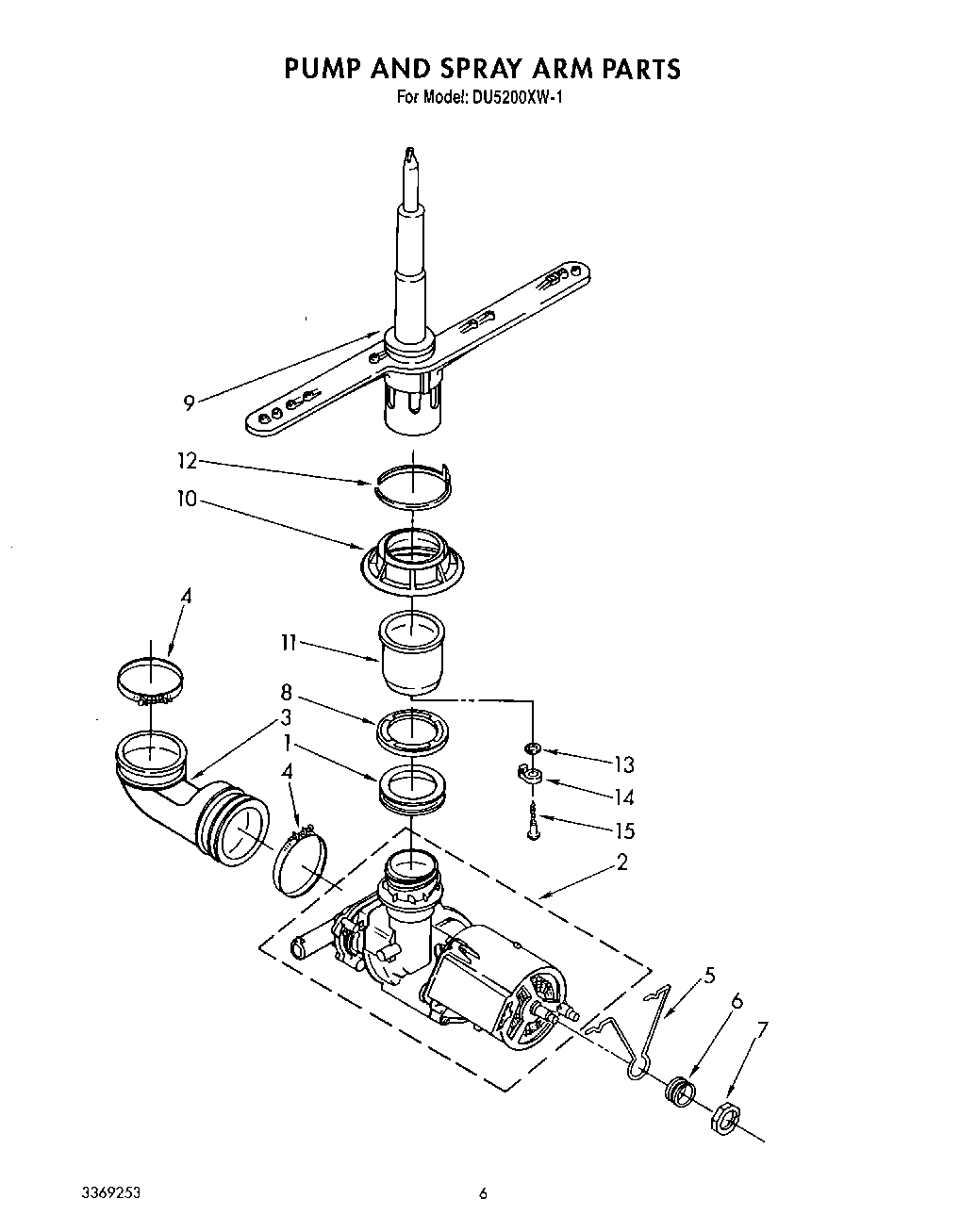

DU5200XW1 04 – PUMP AND SPRAY ARMadmin2025-04-26T11:04:29+00:00DU5200XW1 04 – PUMP AND SPRAY ARM ProductsPositionProduct1Grommet, Pump Seal2PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE3W11189178 Whirlpool Dishwasher Hose4Clamp (2)5Support, Motor6Grommet, Motor Support7Nut, Motor Support8Washer, Grommet9Spray Arm, Assembly Lower10Nut, Pump Outlet11WP3371745 Whirlpool Dishwasher Support12WP3369045 Whirlpool Dishwasher Seal13Washer143371746 Whirlpool Dishwasher Bearing15Shoulder Screw
