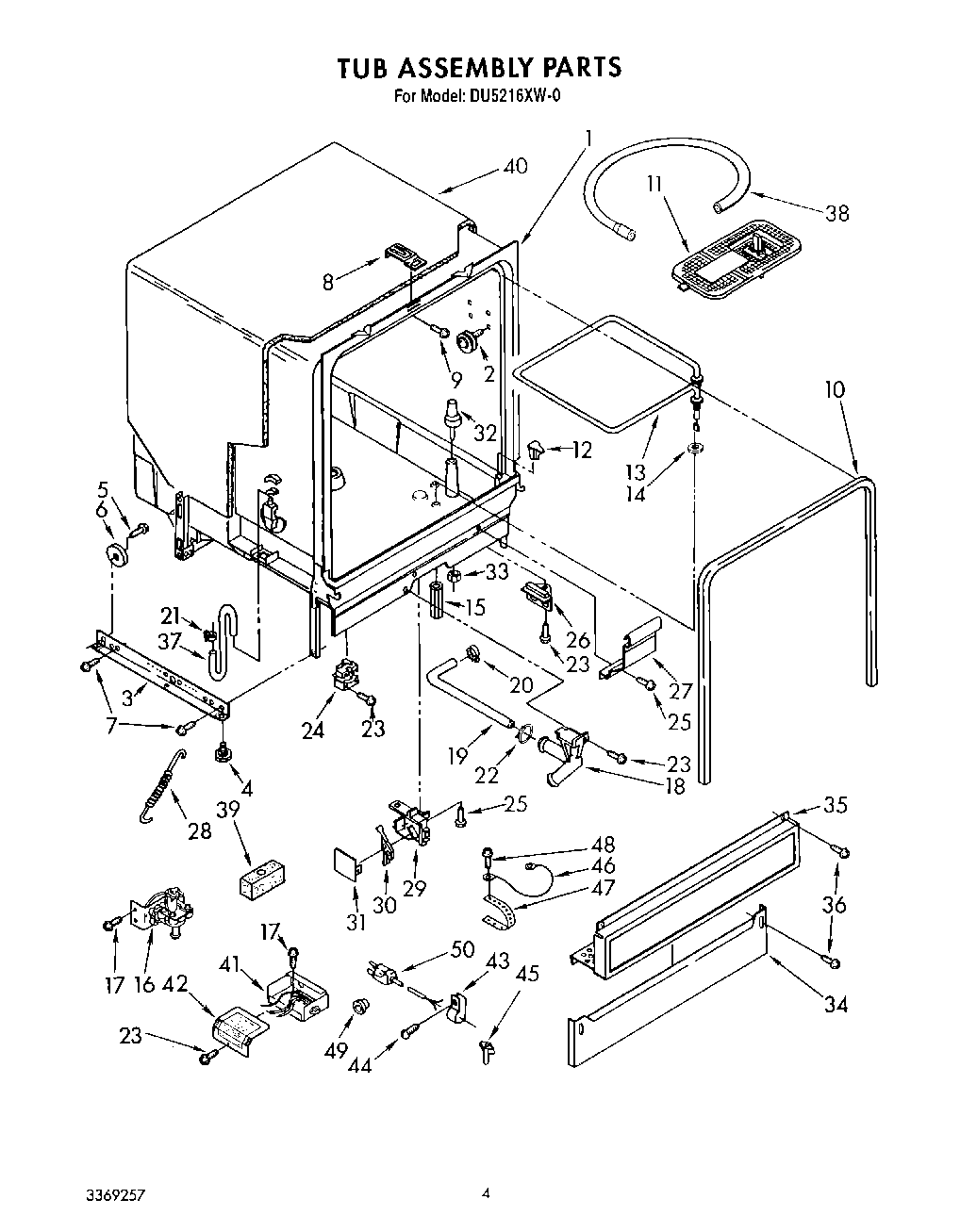

DU5216XW0 03 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly (Not Serviceable)
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
20	Clamp
21	WP596669 Whirlpool Hose Clamp
22	Clamp
23	WP90767 Whirlpool Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	Access Panel (Includes Item 39)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	675544 Whirlpool Drain Hose
39	Diverter
40	W11086533 Whirlpool Dishwasher Shield
41	Terminal Block & Plug Assembly
42	Cover Assembly, Terminal Box
43	Clamp, Strain Relief
44	SCREW
45	WPL 770754
46	WPL 303485
47	Strap, Ground
48	Screw, Ground (10-24 x 1)
49	WPL 302770
50	Power Cord
