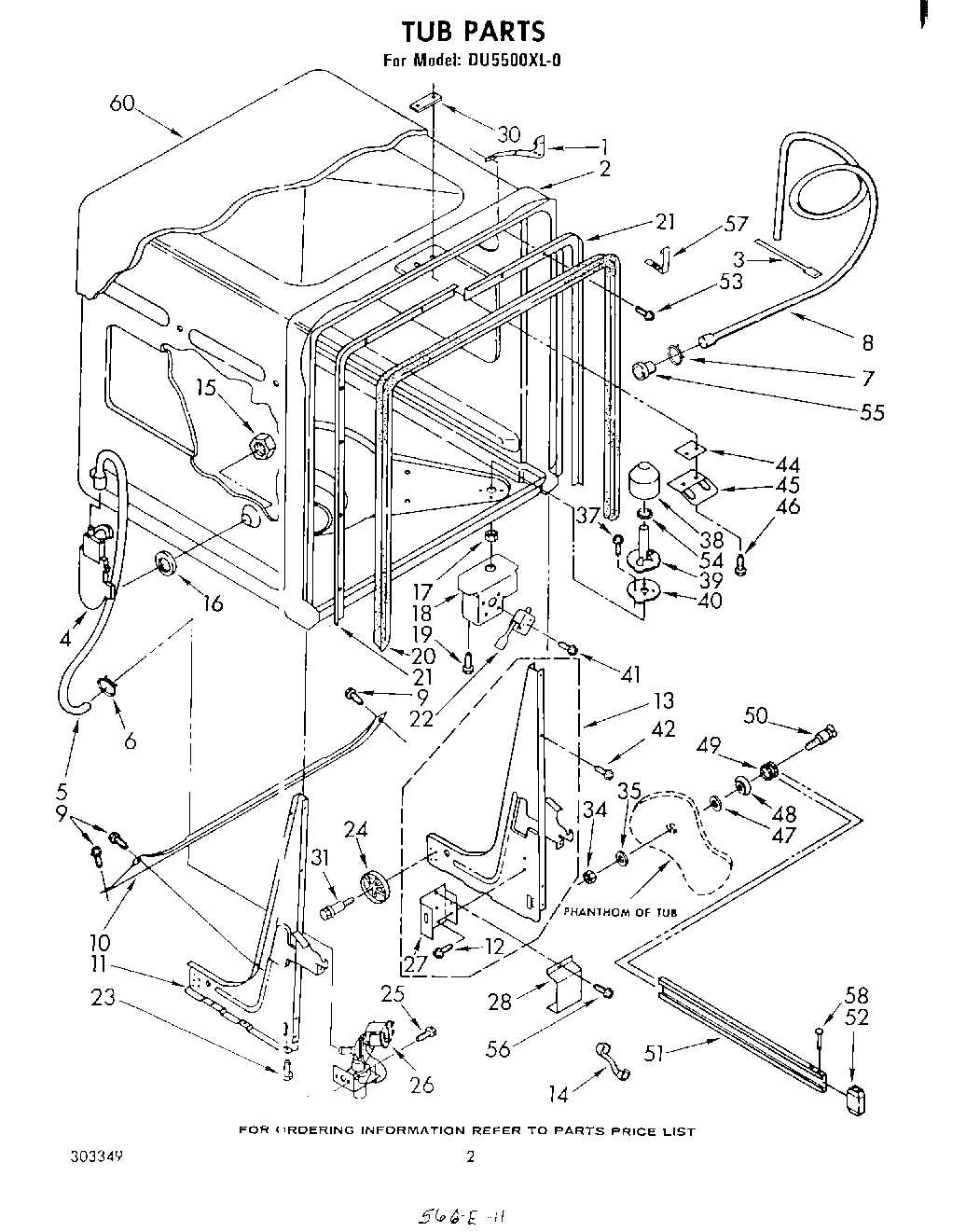

DU5500XL0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	Washer (Belt Drive)
	WPL LIT677967
	WPL LIT303211
	WPL LIT303371
	WPL LIT303311
	WPL LIT303349
	Dryer
	Label, User Guide
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
1	Bracket, Mounting (2)
2	Tub Assembly
3	WPW10144763 Whirlpool Tie Wire
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	Clip, Gasket (2)
58	WPL 303298
60	350930 Whirlpool White Spray Paint
60	72017 Whirlpool Appliance Touch-Up Paint White
60	Leveler (Thinner)
60	799344 Whirlpool Refrigerator Paint
60	WP72107 Whirlpool Touchup
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	Golden Harvest
60	Kit, Epoxy Patch (White)
60	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60	Vinyl Touch Up (Blue)
60	W11086533 Whirlpool Dishwasher Shield
60	72032 Whirlpool Touch Up Paint Black
60	285006 Whirlpool Spray
60	Enamel, Black (1 Qt. Uncut)
60	350942 Whirlpool Spray Paint
60	Golden Harvest (Uncut)
60	350956 Whirlpool Spray Assembly
