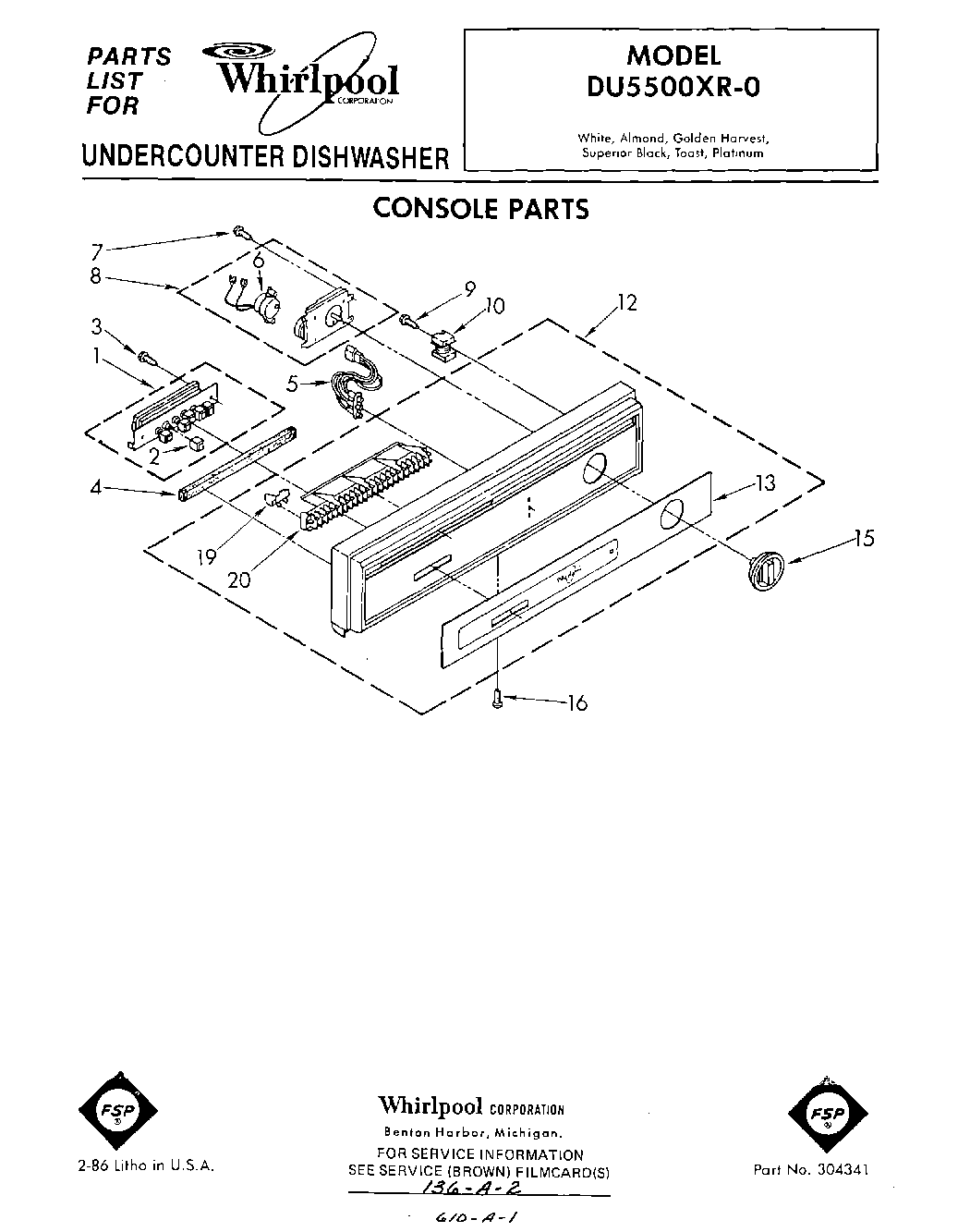

| 1 | Switch, Pushbutton |
| 2 | Button (6) |
| 4 | Baffle |
| 5 | Light, Indicator (For Electrical Connector Only, See Wiring Harness Parts Page). |
| 6 | Motor, Timer |
| 7 | WP304231 Whirlpool Dishwasher Screw |
| 8 | Timer |
| 9 | Screw, 7-18 x 1-3/8 Slot Hex Wash Hd |
| 10 | Relay, Start |
| 12 | Console |
| 13 | Insert, Decorative |
| 15 | Knob, Timer |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | Cover, Grill |
| 20 | Grill, Vent |
