DU5500XR0 03 – DOOR

DU5500XR0 03 – DOOR

Written by

in

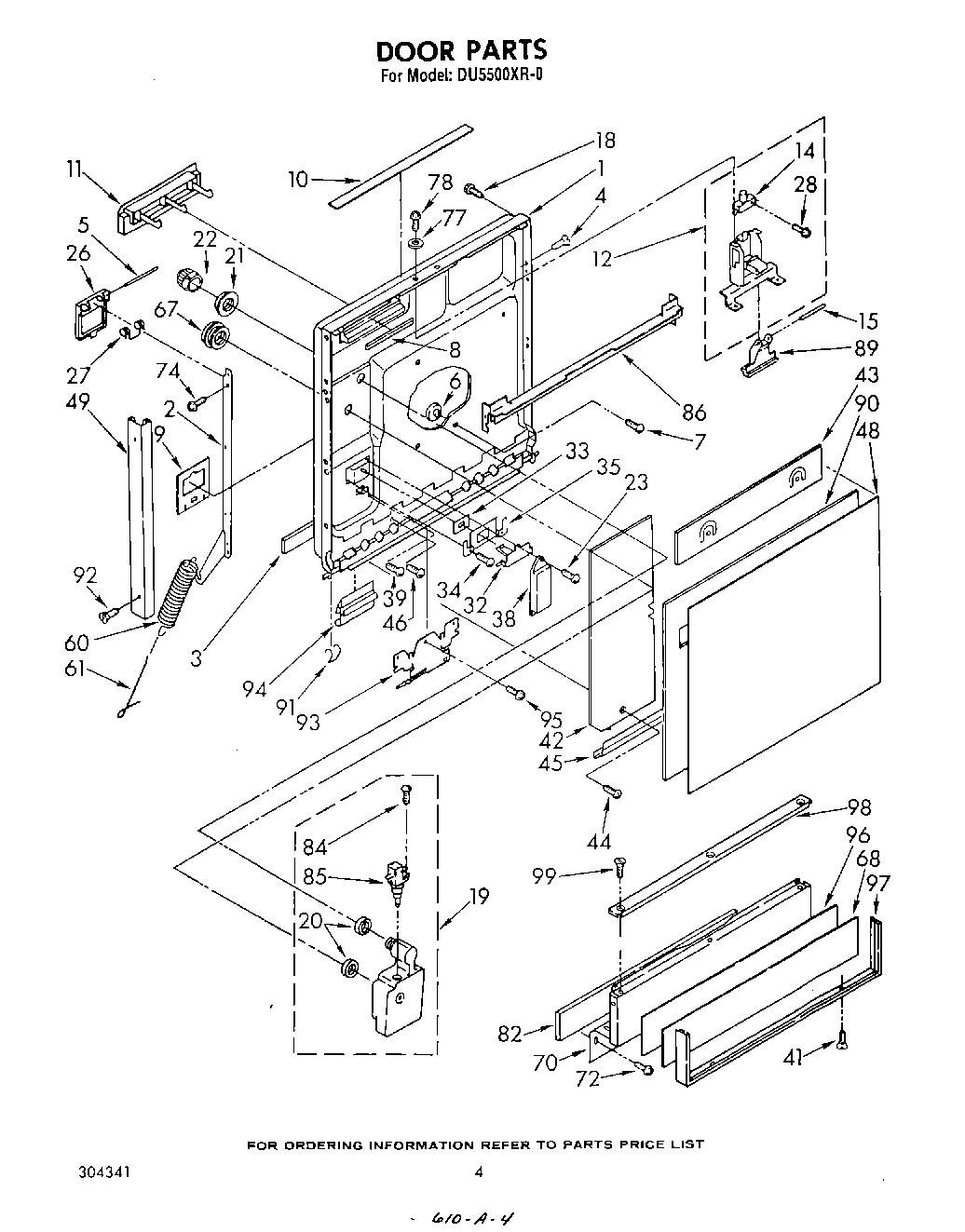

DU5500XR0 03 – DOOR

Products

PositionProduct
1Door, Inner
2Support, Door (R.H.)
2Support Door (L.H.)
3Gasket, Door
4WP489069 Whirlpool Compactor Screw
54387043 Whirlpool Door Latch Kit
6Button, Retainer (3)
7Screw, 8-18 x 3/8 (3)
8Baffle
9Barrier
10Label, Users Guide
11Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
15Pin, Pivot
18Screw, 8 x 1-7/8 (2)
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Leveler
27WP8066018 Whirlpool Spring Assembly
28Screw, 6-32 x 1
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
42Barrier, Door
43Barrier, Console
44W11693756 Whirlpool Screw Assembly
45Edging, Panel
48Panel, Front
49Trim, Door (R.H.)
49Trim, Door (L.H.)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
68Panel, Access
70Plate, Toe
72WP302868 Whirlpool Screw
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
78WP90767 Whirlpool Screw
82WPL 302803
84Screw, 4-20 x 3/8 (2)
85Actuator
86Rail, Support
89Lever, Release
90Spacer, Panel
91Clip, Wire
93Shield, Harness
94Retainer, Clip
95Screw, 8-18 x 5/8
96WPL 303755
97WPL 303753
98WPL 303754
99302251 Whirlpool Dishwasher Screw
