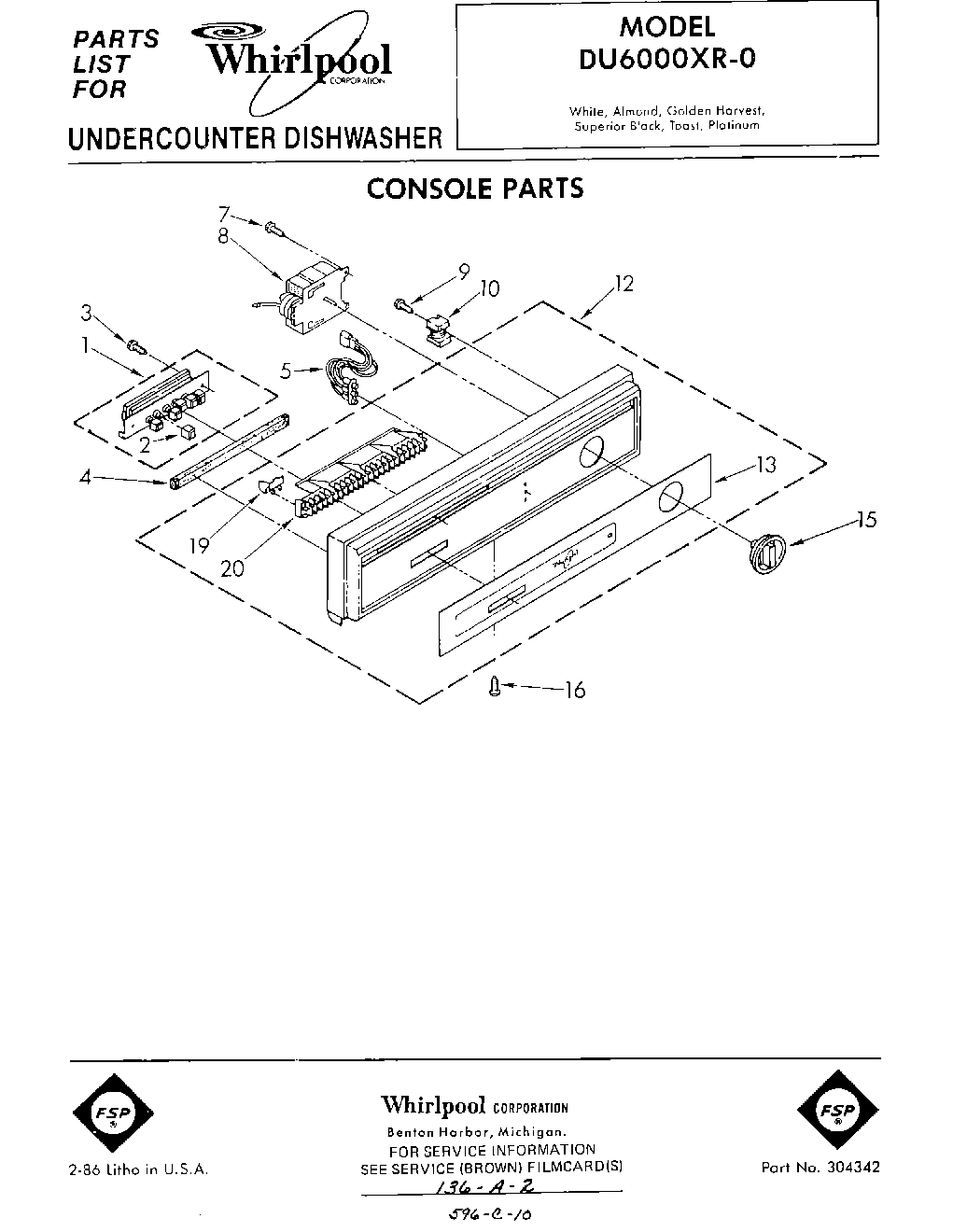

DU6000XR0 01 – CONSOLE

Products

PositionProduct
1Switch, Pushbutton
2Button (6)
4Baffle
5Light, Indicator (For Electrical Connector Only, See Wiring Harness Parts Page).
7WP304231 Whirlpool Dishwasher Screw
8Timer (For Electrical Connector Only, See Wiring Harness Page.)
9Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10Relay, Start
12Console
13Insert, Decorative
15Knob, Timer
16WP488729 Whirlpool Refrigerator Door Screw
19Cover, Grill
20Grill, Vent
