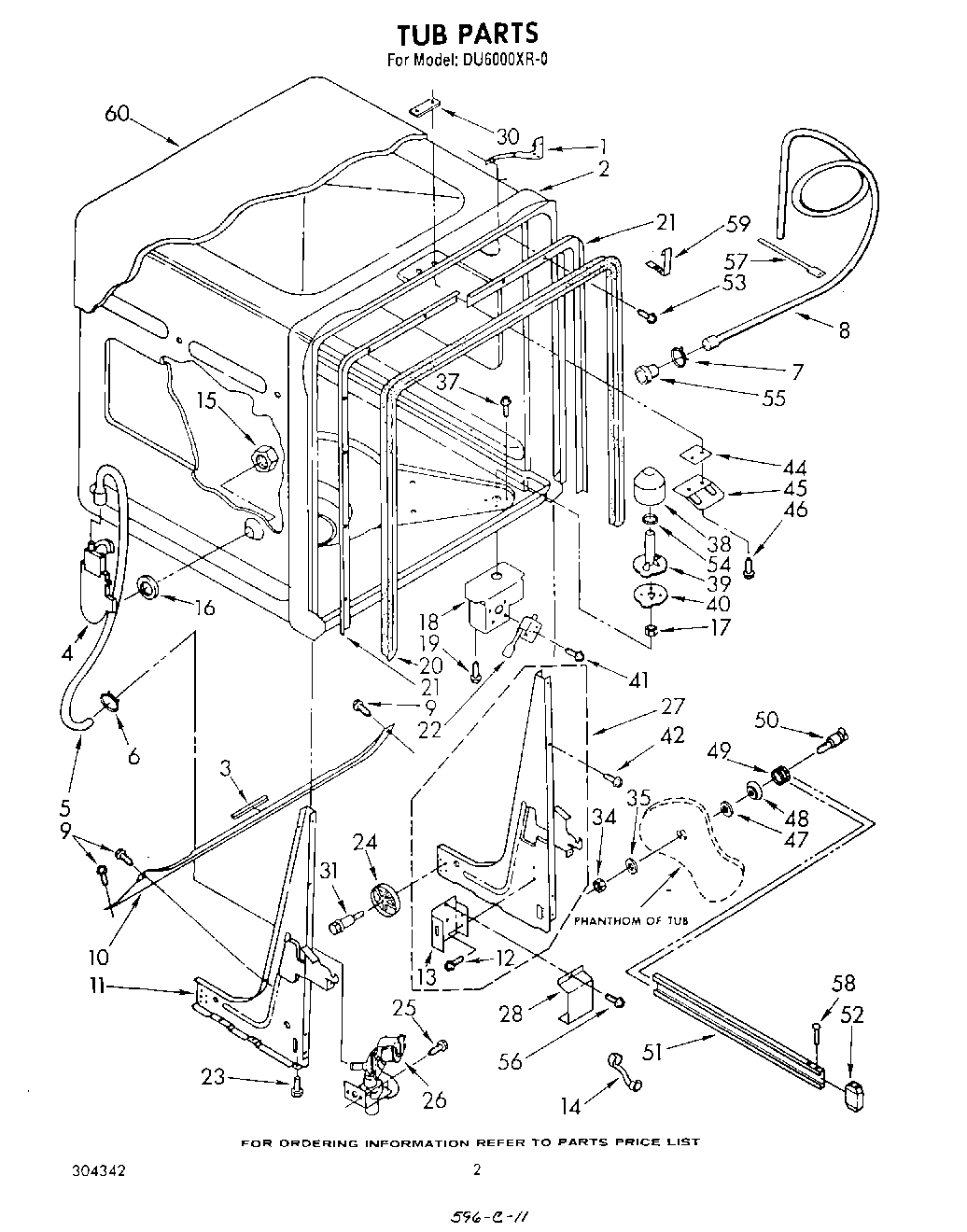

DU6000XR0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT304674
	WPL LIT304281
	WPL LIT304417
	WPL LIT304342
1	Bracket, Mounting (2)
2	Tub Assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
31	Screw, Shoulder
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
58	WPL 303298
59	Clip, Gasket (2)
60	285006 Whirlpool Spray
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	Almond (Uncut)
60	Enamel, Coffee (1 Qt. Uncut)
60	Leveler (Thinner)
60	350956 Whirlpool Spray Assembly
60	72017 Whirlpool Appliance Touch-Up Paint White
60	WP72107 Whirlpool Touchup
60	799344 Whirlpool Refrigerator Paint
60	Toast
60	Enamel, New Avocado (1 Qt. Uncut)
60	Paint, Spray (13 Oz.) (Platinum)
60	Enamal, Toast (1 Qt. Uncut)
60	Platinum (Uncut)
60	350930 Whirlpool White Spray Paint
60	Kit, Epoxy Patch (White)
60	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60	Vinyl Touch Up (Blue)
60	WPL 72112
60	Golden Harvest (Uncut)
60	Golden Harvest
60	W11086533 Whirlpool Dishwasher Shield
60	350942 Whirlpool Spray Paint
60	72113 Whirlpool Touch-Up Paint
