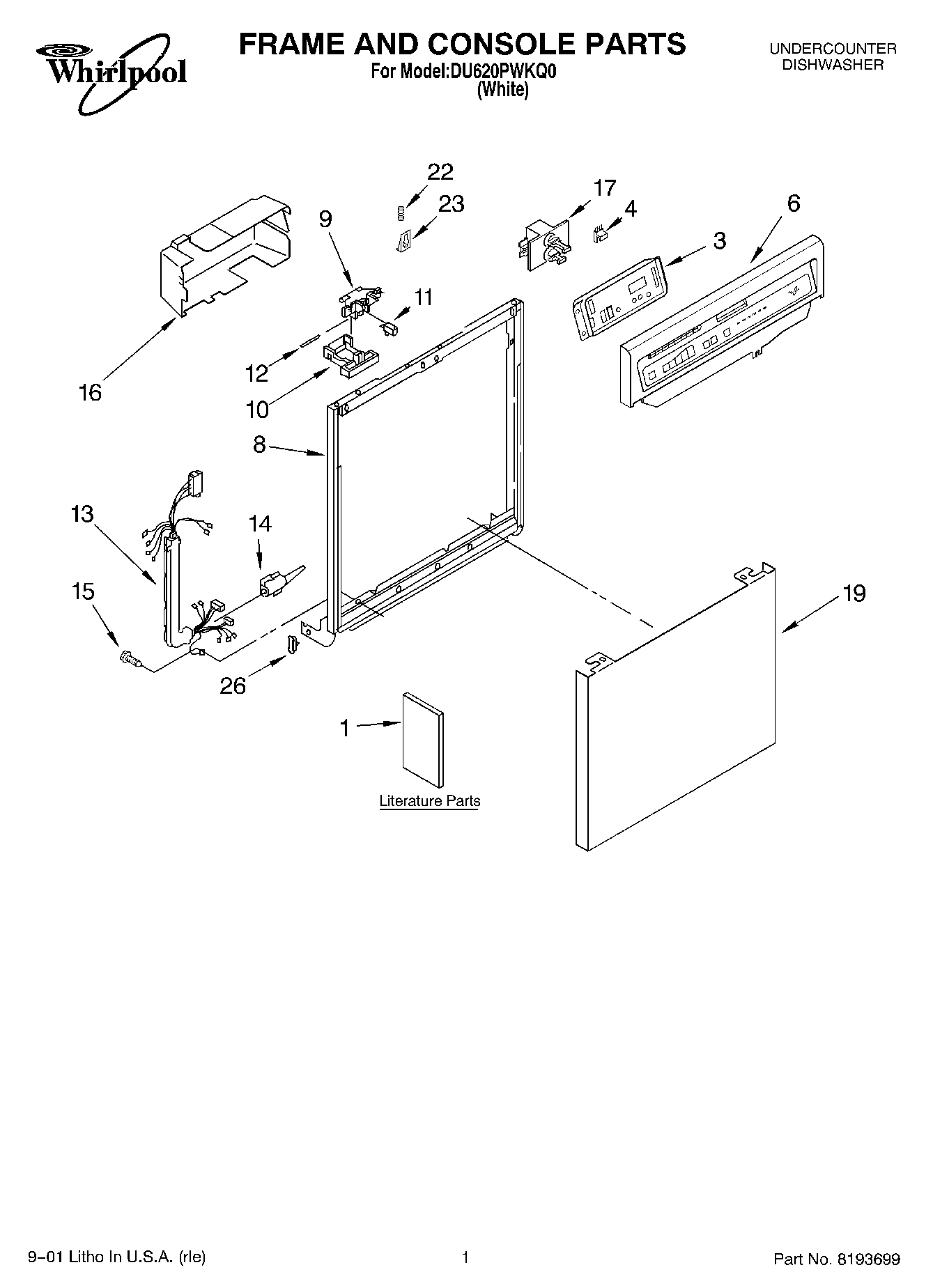

DU620PWKQ0 01 – FRAME AND CONSOLE, LITERATURE

DU620PWKQ0 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

DU620PWKQ0 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Use & Care)
1Literature Parts (Tech Sheet) (Guide, Energy)
1Literature Parts (Tech Sheet) (French)
1Literature Parts (Tech Sheet) (English)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Literature Parts (Instructions, Installation)
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
6Console (Includes Insert & Active Overlay)
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
19Panel Front (White Model)
23675782 Whirlpool Dishwasher Catch
26WP3373234 Whirlpool Dishwasher Bearing
